Per-chip Measurements

ASIC 8

Power Supply Measurements

Pre/Post Config Voltage Current
pre 4.0 1.8670
pre 8.0 0.3010
post 4.0 2.7300
post 8.0 0.3021

Serializer Test

channel1 pass
channel2 pass
channel3 pass
channel4 pass
channel5 pass
channel6 pass
channel7 pass
channel8 pass

Clock Scan

Clock scan pass fraction = 0.5

Before Edge Count (CP40) 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 -1 1024 1024 1024 1024 1024
After Edge Count (CP40) 1024 1024 1024 0 0 1024 1024 1024 0 1024 -1 1024 1024 1024 1024 1024
Before Edge Count(CP80) 1024 1024 1024 1024 -1 -1 -1 -1 1024 -1 -1 1024 1024 1024 1024 1024
After Edge Count (CP80) 1024 1024 1024 1024 -1 -1 -1 -1 1024 -1 -1 1024 1024 1024 1024 1024
lpGBT Phase Ch1 1 1 1 2 2 -1 -1 -1 2 -1 1 1 1 1 1 1
lpGBT Phase Ch2 1 1 1 2 2 -1 -1 -1 2 -1 -1 1 1 1 1 1
lpGBT Phase Ch3 1 1 1 2 -1 -1 -1 -1 2 -1 1 1 1 1 1 1
lpGBT Phase Ch4 1 1 1 2 -1 -1 -1 -1 2 -1 1 1 1 1 1 1
lpGBT Phase Ch5 1 1 1 2 2 2 2 2 2 2 -1 1 1 1 1 1
lpGBT Phase Ch6 1 1 1 2 -1 -1 -1 -1 2 -1 -1 1 1 1 1 1
lpGBT Phase Ch7 1 1 1 2 -1 -1 -1 -1 2 -1 -1 1 1 1 1 1
lpGBT Phase Ch8 1 1 1 2 2 2 2 2 2 2 -1 1 1 1 1 1

Pedestal Results

ASIC Channel Mean Baseline RMS Run

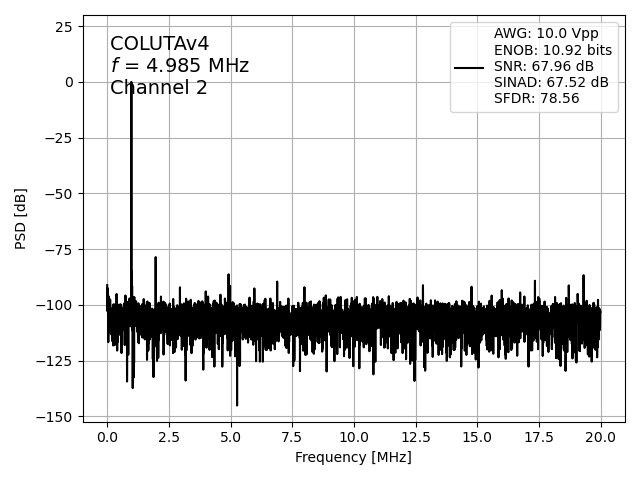

5 MHz Sine Results

ASIC Channel Run meanENOB mean SFDR mean SNR mean SINAD
8 channel1 3104 10.517840 75.529032 65.868960 65.077397
8 channel2 3104 10.928697 78.319749 68.038334 67.550754
8 channel4 3104 11.344239 76.217881 71.617455 70.052317

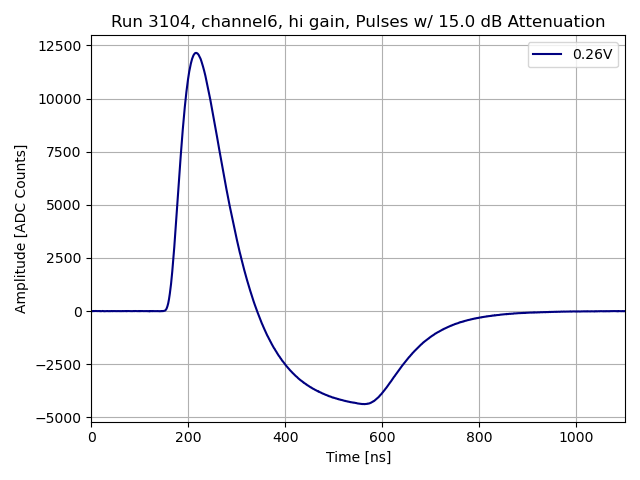

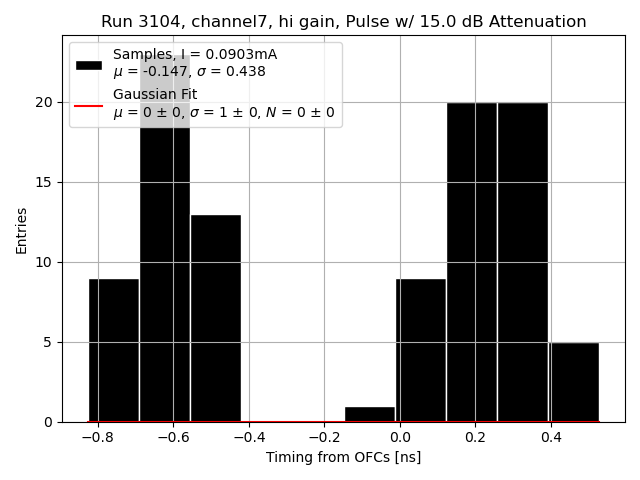

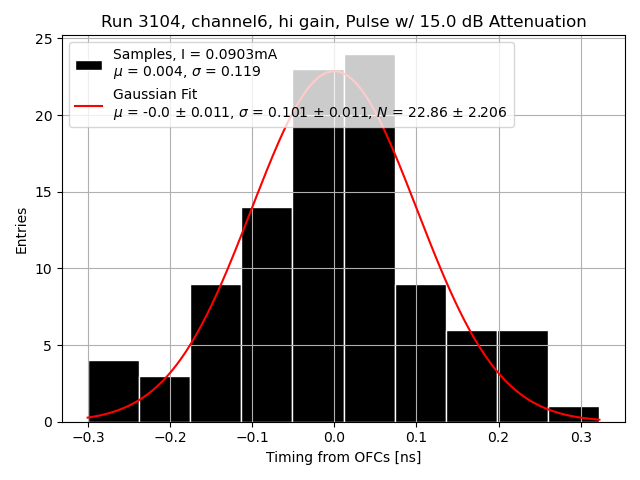

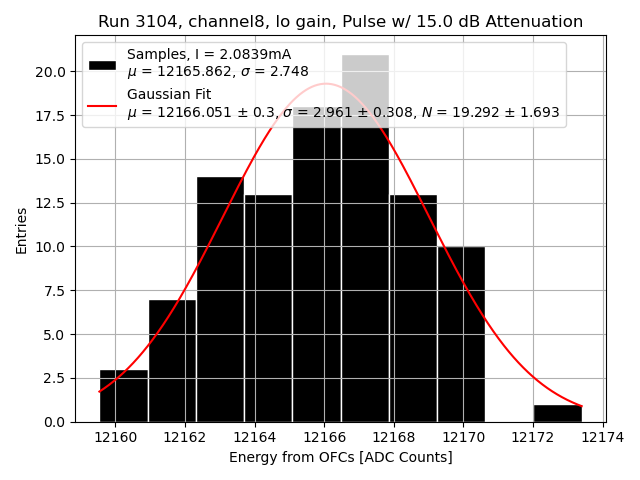

Pulse Results

Channel ENERGY RMS from OFCs ENERGY RMS from peak Measurements Run TIMING dist mean TIMING dist std a_i b_i mean ENERGY from OFCs mean ENERGY from peak

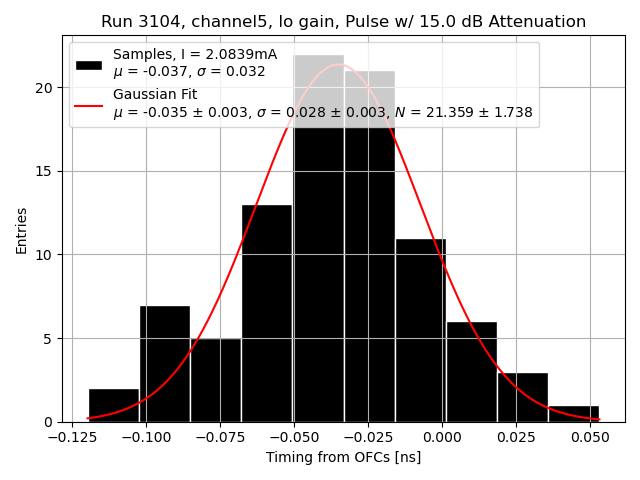

channel5 2.46633 - - 3104 -0.03701 0.03199 [0.00533, 0.27683, 0.35305, 0.29579, 0.27704] [-26.65403, -21.84127, 5.77105, 9.89087, 10.89182] 12209.33562 -
channel6 24.76922 - - 3104 0.00390 0.11935 [-0.00686, 0.28962, 0.37236, 0.25075, 0.32205] [-20.29093, -29.96974, 12.61292, 6.75657, 11.6379] 12148.70850 -
channel7 22.91486 - - 3104 -0.14697 0.43829 [-0.00686, 0.28962, 0.37236, 0.25075, 0.32205] [-20.29093, -29.96974, 12.61292, 6.75657, 11.6379] 12154.22398 -
channel8 2.74802 - - 3104 0.05648 0.07300 [0.00533, 0.27683, 0.35305, 0.29579, 0.27704] [-26.65403, -21.84127, 5.77105, 9.89087, 10.89182] 12165.86168 -

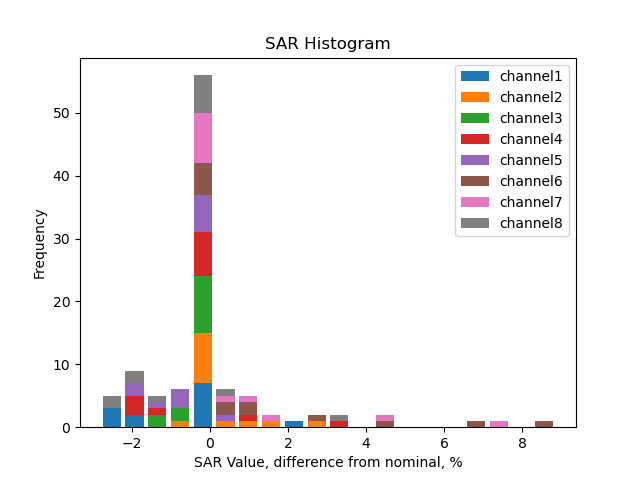

SAR calib vals

channel1 3310.0 1891.62 946.92 592.07 355.52 237.19 118.32 201.88 115.78 57.62 29.13 21.77 14.79 9.45 6.0 4.0 2.0 1.0 0.5 0.25
channel2 3310.0 1891.07 946.44 592.15 355.38 237.31 118.14 205.75 118.15 59.03 29.81 22.50 15.01 9.51 6.0 4.0 2.0 1.0 0.5 0.25
channel3 3310.0 1891.55 946.60 592.30 355.26 237.33 118.33 204.80 117.47 58.58 29.60 22.13 14.73 9.26 6.0 4.0 2.0 1.0 0.5 0.25
channel4 3310.0 1890.10 946.14 592.03 355.08 237.14 118.38 203.47 116.53 58.08 29.50 21.92 14.97 9.57 6.0 4.0 2.0 1.0 0.5 0.25
channel5 3310.0 1891.94 946.46 591.91 355.60 237.23 118.27 203.73 117.05 58.30 29.41 22.05 14.74 9.28 6.0 4.0 2.0 1.0 0.5 0.25
channel6 3310.0 1890.65 947.06 592.23 355.80 237.40 118.34 208.79 120.05 59.76 30.42 23.27 15.83 10.08 6.0 4.0 2.0 1.0 0.5 0.25
channel7 3310.0 1891.93 946.50 591.72 355.14 236.82 118.30 207.13 119.13 59.34 30.04 22.50 15.48 9.93 6.0 4.0 2.0 1.0 0.5 0.25
channel8 3310.0 1891.66 946.58 592.42 355.61 237.23 118.19 201.88 115.96 57.83 29.21 21.78 14.86 9.58 6.0 4.0 2.0 1.0 0.5 0.25

Unscaled SAR calib vals

channel1 3503.91 2002.44 1002.39 626.75 376.35 251.09 125.25 213.71 122.56 61.00 30.84 23.05 15.66 10.0 6.0 4.0 2.0 1.0 0.5 0.25
channel2 3480.94 1988.73 995.32 622.73 373.73 249.57 124.24 216.38 124.25 62.08 31.35 23.66 15.79 10.0 6.0 4.0 2.0 1.0 0.5 0.25
channel3 3574.70 2042.82 1022.30 639.67 383.67 256.31 127.79 221.18 126.86 63.26 31.97 23.90 15.91 10.0 6.0 4.0 2.0 1.0 0.5 0.25
channel4 3459.65 1975.55 988.92 618.80 371.13 247.86 123.73 212.67 121.80 60.71 30.83 22.91 15.65 10.0 6.0 4.0 2.0 1.0 0.5 0.25
channel5 3567.42 2039.08 1020.07 637.94 383.25 255.68 127.47 219.57 126.15 62.83 31.70 23.77 15.89 10.0 6.0 4.0 2.0 1.0 0.5 0.25
channel6 3282.39 1874.88 939.16 587.29 352.83 235.42 117.35 207.05 119.05 59.26 30.17 23.08 15.70 10.0 6.0 4.0 2.0 1.0 0.5 0.25
channel7 3333.96 1905.63 953.35 596.00 357.71 238.53 119.16 208.63 119.99 59.77 30.26 22.66 15.59 10.0 6.0 4.0 2.0 1.0 0.5 0.25
channel8 3455.34 1974.72 988.14 618.43 371.22 247.65 123.38 210.74 121.05 60.37 30.49 22.74 15.51 10.0 6.0 4.0 2.0 1.0 0.5 0.25

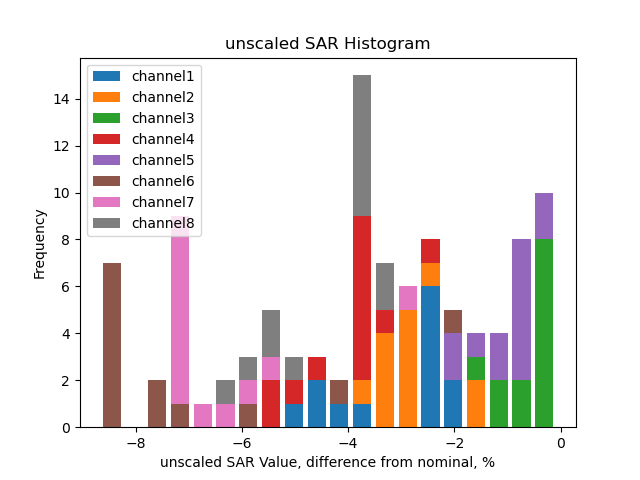

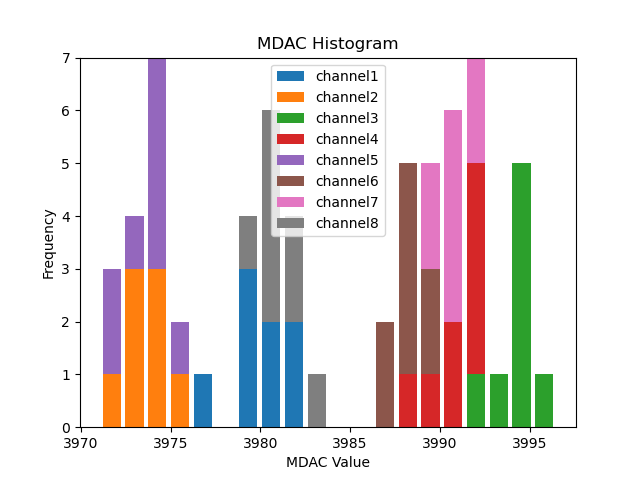

Mdac calib vals

channel1 3980.15 3981.87 3981.32 3981.22 3982.91 3980.12 3980.24 3977.62
channel2 3973.42 3974.62 3974.82 3974.98 3976.58 3974.11 3973.33 3971.72
channel3 3994.03 3995.72 3995.71 3995.34 3997.09 3994.76 3995.80 3992.63
channel4 3990.35 3992.13 3992.37 3992.41 3992.82 3991.18 3991.03 3988.93
channel5 3972.96 3975.37 3973.40 3974.35 3976.30 3974.38 3974.47 3972.74
channel6 3988.05 3989.68 3988.22 3988.99 3990.22 3988.56 3988.61 3987.33
channel7 3989.86 3992.00 3991.27 3992.36 3992.92 3991.23 3990.77 3990.11
channel8 3980.04 3982.52 3981.70 3981.62 3983.69 3981.63 3982.27 3980.66

Unscaled Mdac calib vals

channel1 -115.85 3981.87 3981.32 3981.22 3982.91 3980.12 3980.24 3977.62
channel2 -122.58 3974.62 3974.82 3974.98 3976.58 3974.11 3973.33 3971.72
channel3 -101.97 3995.72 3995.71 3995.34 3997.09 3994.76 3995.80 3992.63
channel4 -105.65 3992.13 3992.37 3992.41 3992.82 3991.18 3991.03 3988.93
channel5 -123.04 3975.37 3973.40 3974.35 3976.30 3974.38 3974.47 3972.74
channel6 -107.95 3989.68 3988.22 3988.99 3990.22 3988.56 3988.61 3987.33
channel7 -106.14 3992.00 3991.27 3992.36 3992.92 3991.23 3990.77 3990.11
channel8 -115.96 3982.52 3981.70 3981.62 3983.69 3981.63 3982.27 3980.66

(click on a plot to zoom...)

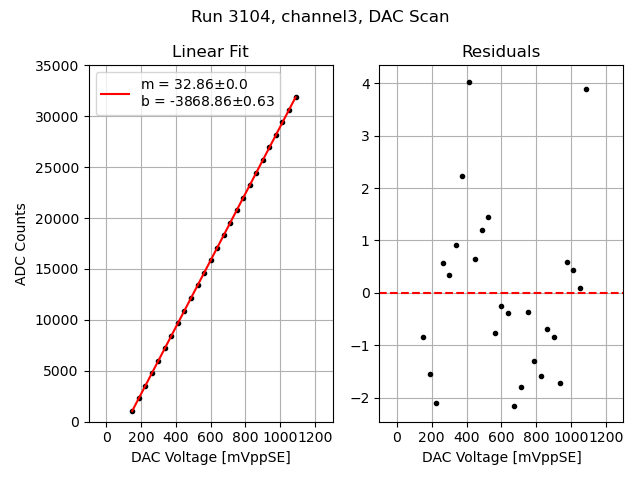

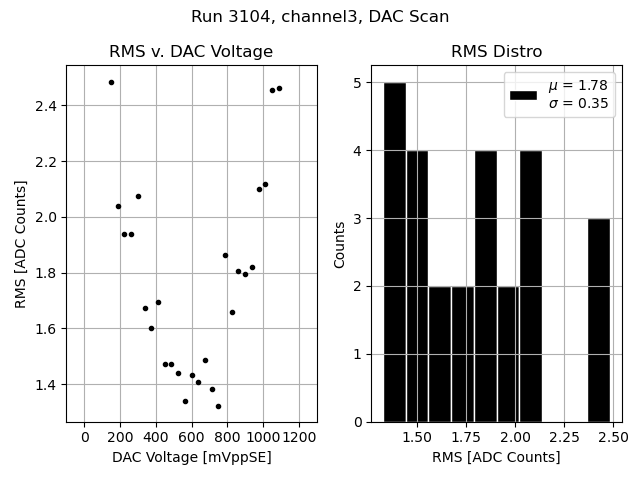

Pedestal Distribution DAC Linearity and Residuals DAC RMS DAC DNL
Channel 3

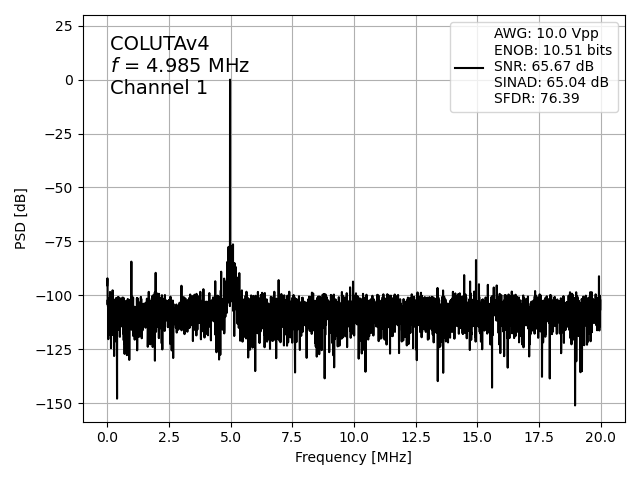

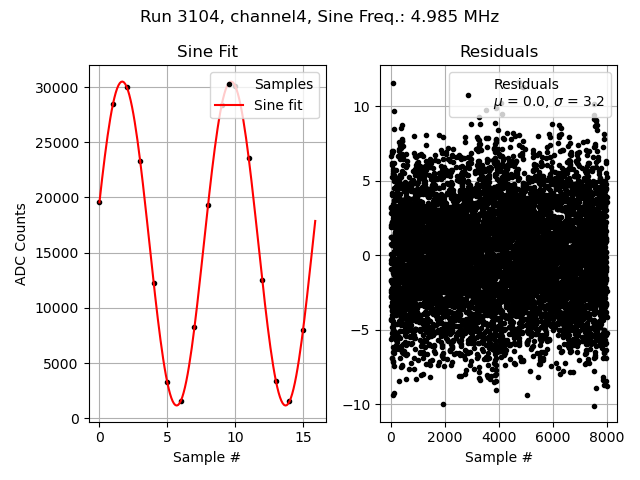

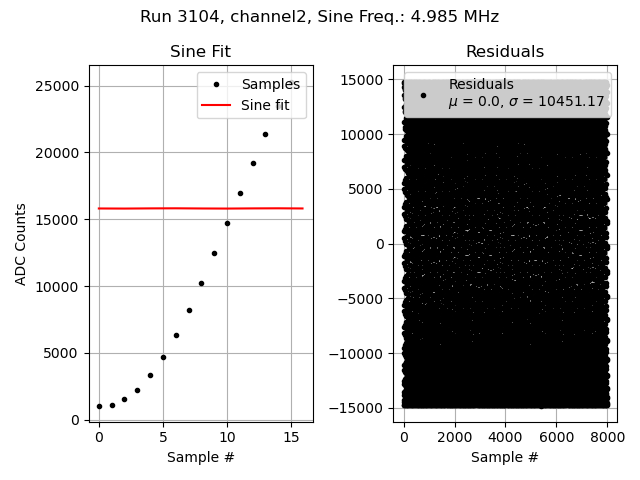

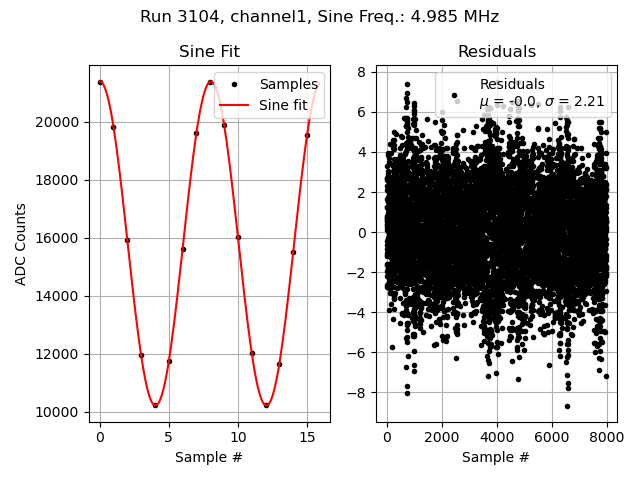

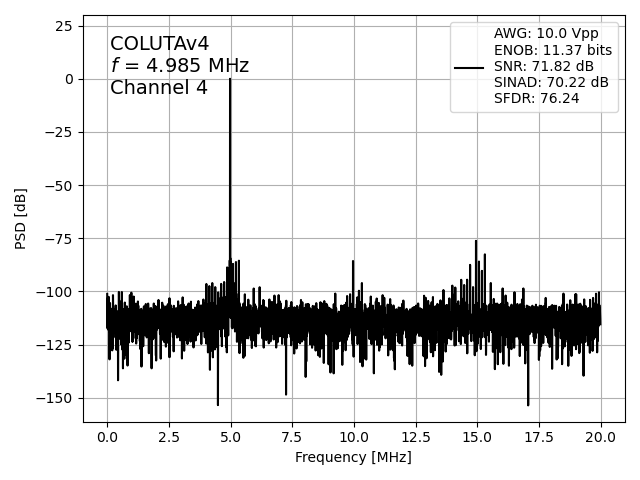

Pedestal Distribution Raw Sine Samples Sine FFT Sine Fitted
Channel 1
Channel 2
Channel 4

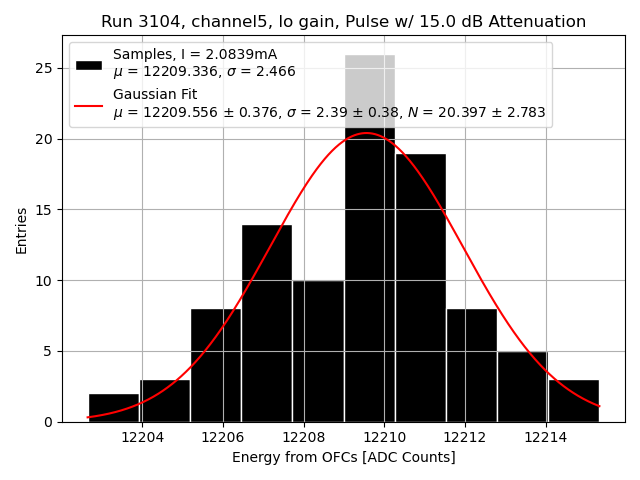

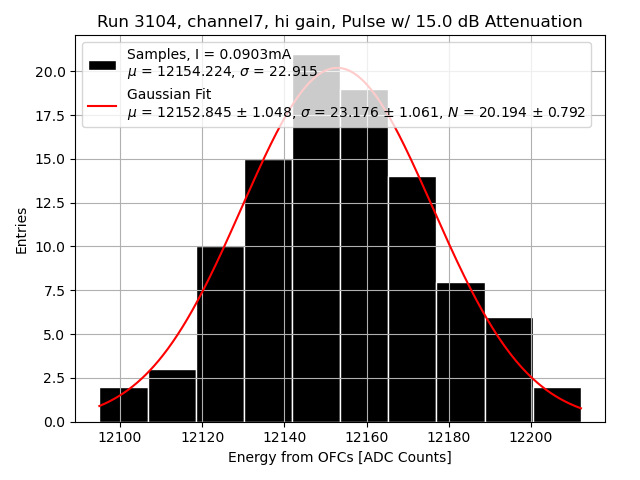

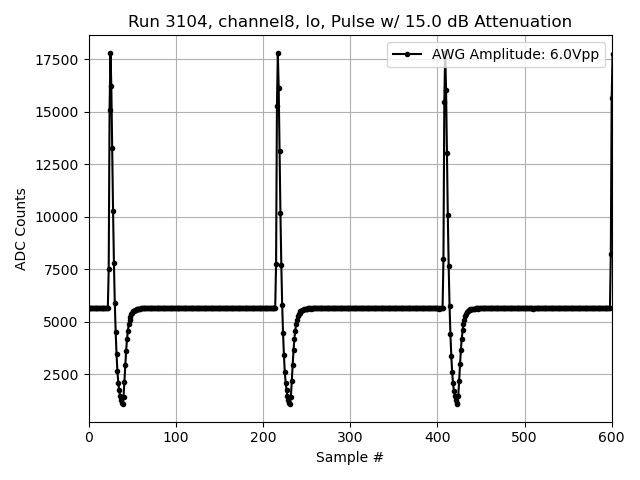

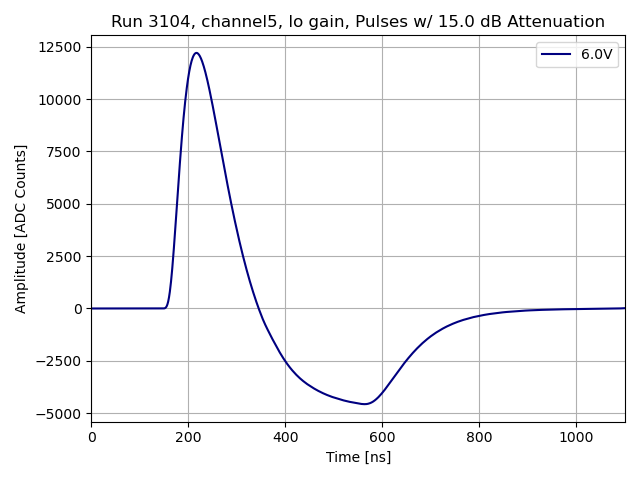

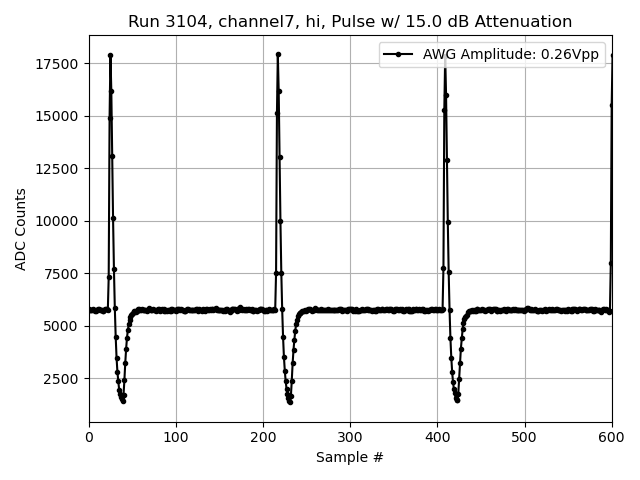

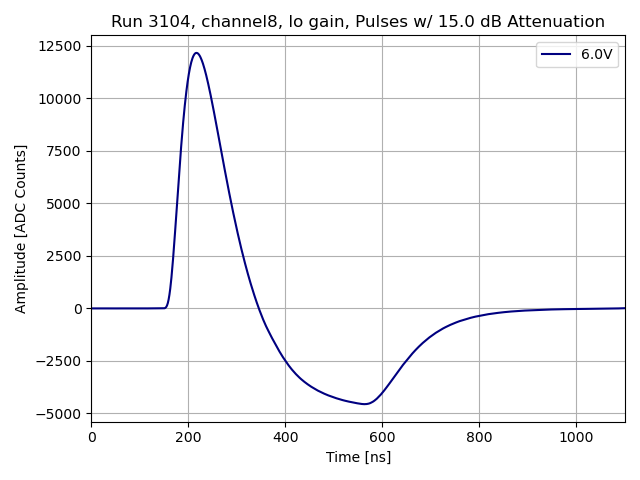

Raw Pulse Data (all measurements) Average interleaved pulse train Energy from OFCs Timing from OFCs
Channel 5
Channel 6
Channel 7
Channel 8
