WVZ 3l2j
Comparison of different processes with cuts

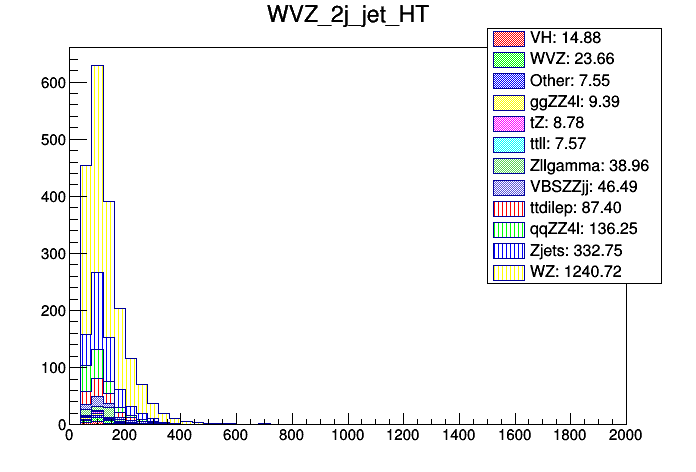

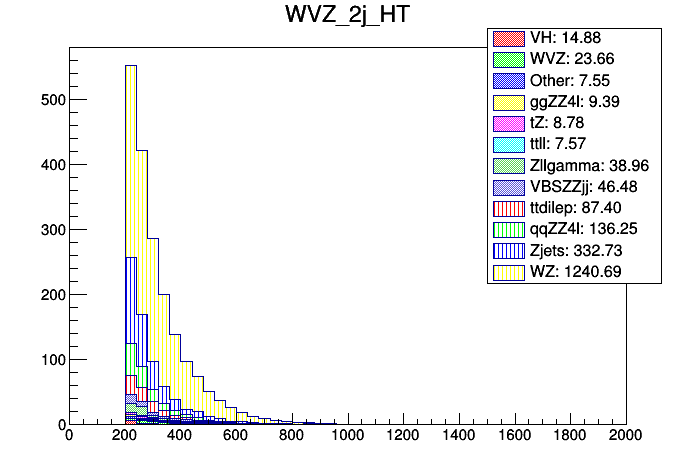

Baseline cuts + HT>200GeV for 2 jet samples
for j1j2: (pT/400) + (dEta/2) < 1
- 2 jets
- Exactly 3 leptons
- At least 1 SFOS Pair
- All SFOS Pairs inv mass > 12 GeV
- Non-Z lepton must match "tight" definition
- Z candidate must be within 10 GeV of Z mass
- All lepton pT > 15 GeV
- Eta cuts on leptons and jets
- Jets cannot be b-tagged (70% WP)
Misc Plots

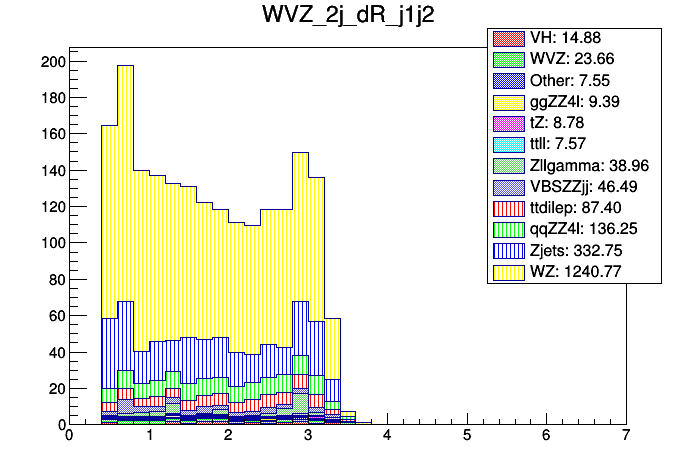

| dR j1j2 |
dEta j1j2 |

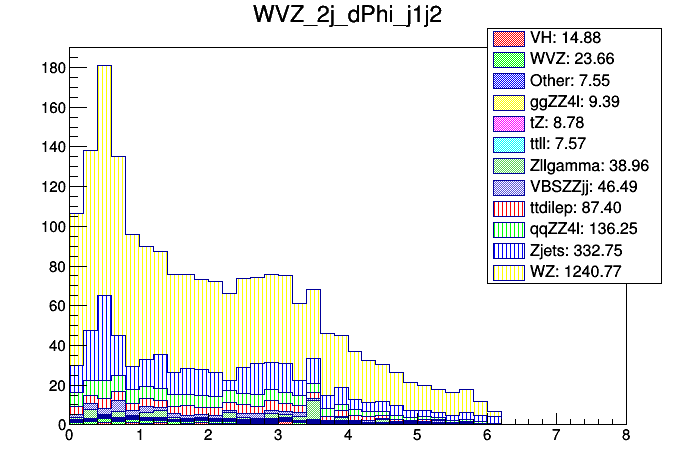

dPhi j1j2 |
 |
 |
 |

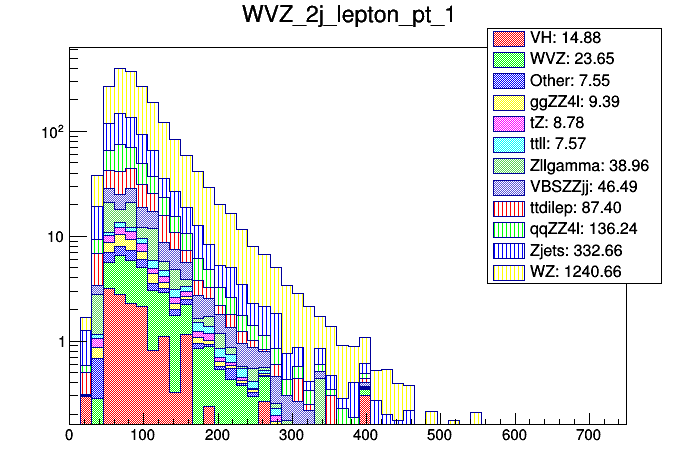

| Lepton 1 pT |

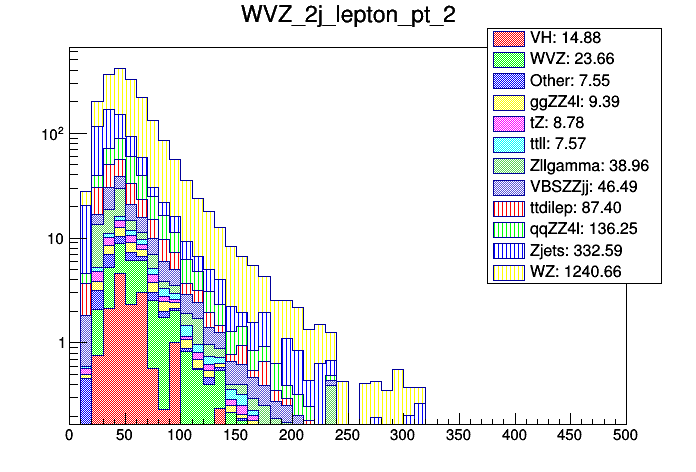

Lepton 2 pT |

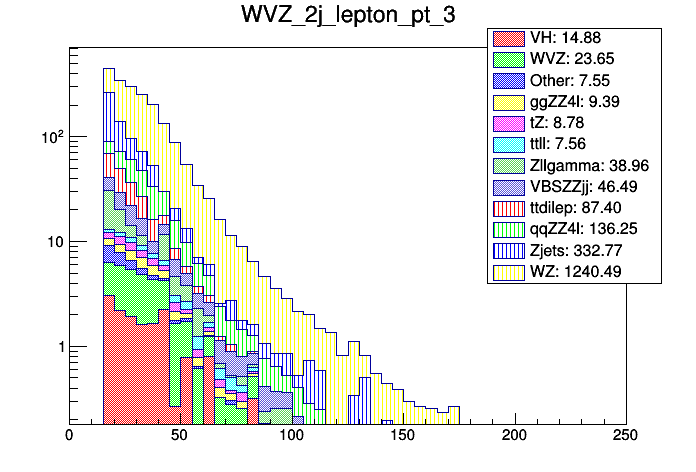

Lepton 3 pT |

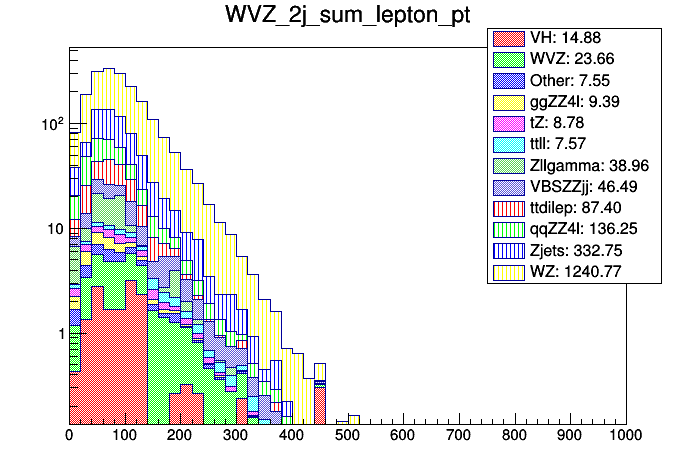

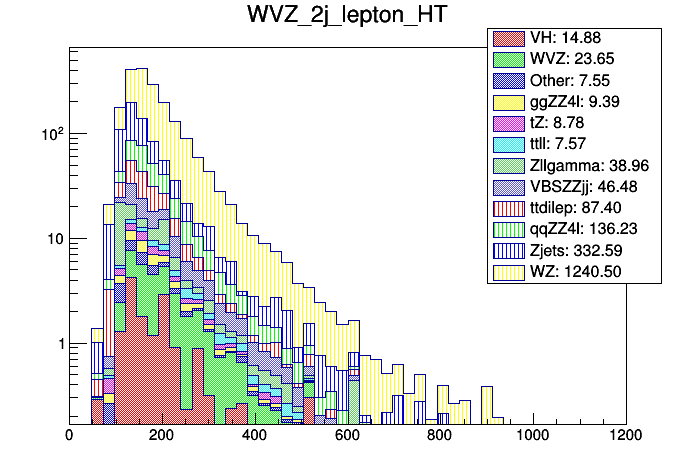

Sum of Lepton pT |
 |
 |
 |
 |

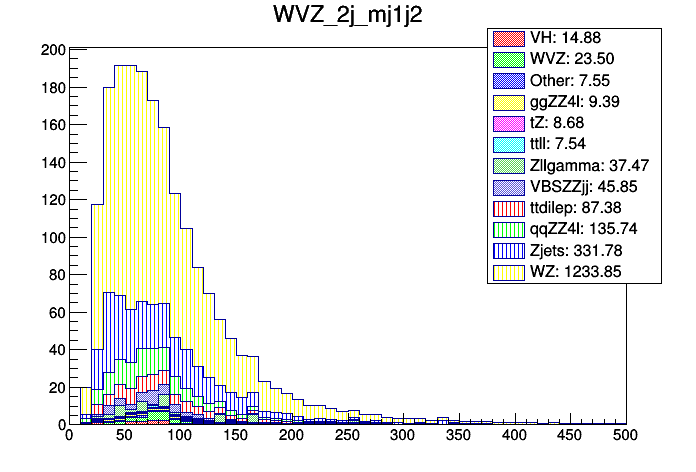

| mJ1J2 (nJets = 2 only) |

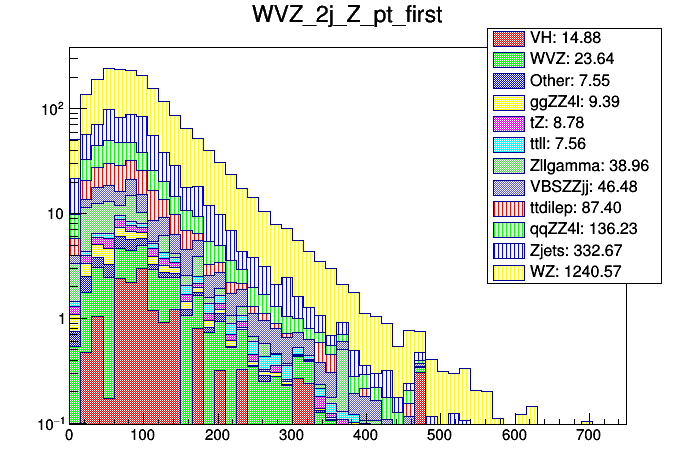

Z pT |

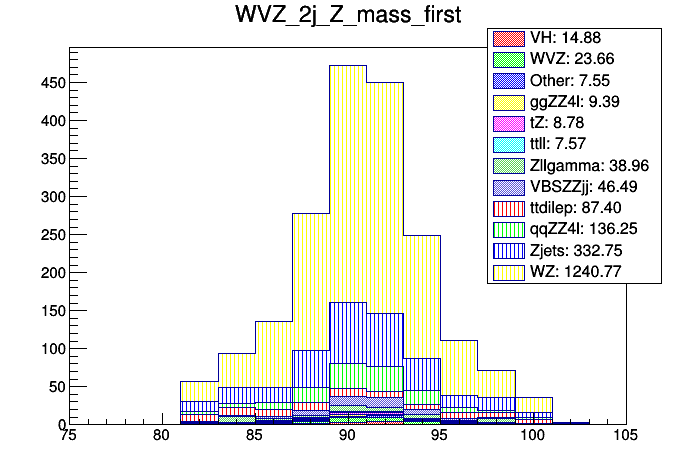

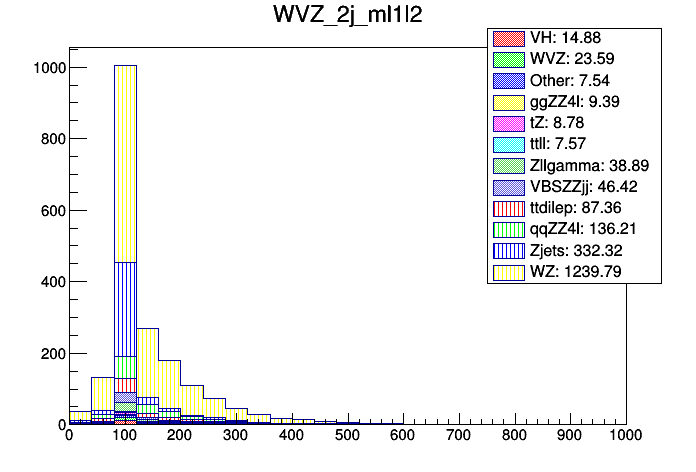

Z Mass |

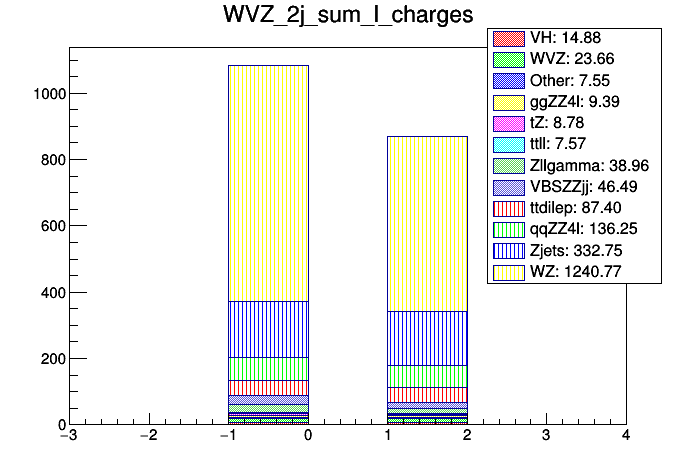

Sum of Lepton Charges |
 |
 |
 |
 |

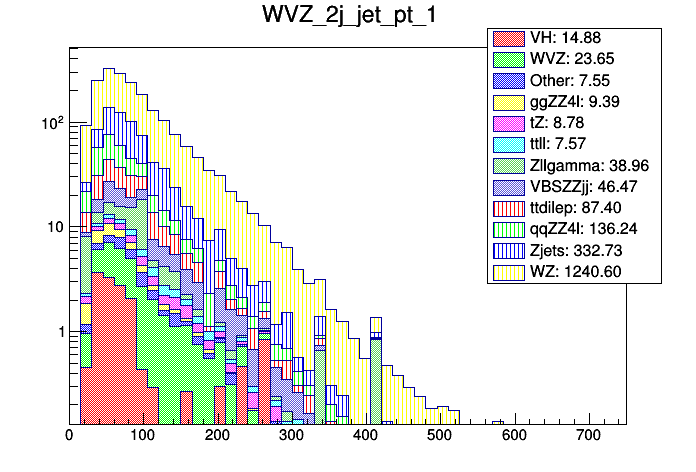

| Jet 1 pT |
Jet 2 pT |

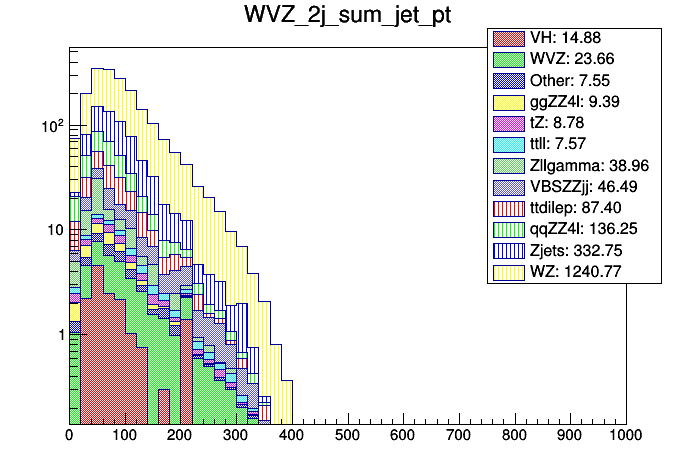

Sum of Jet pT |

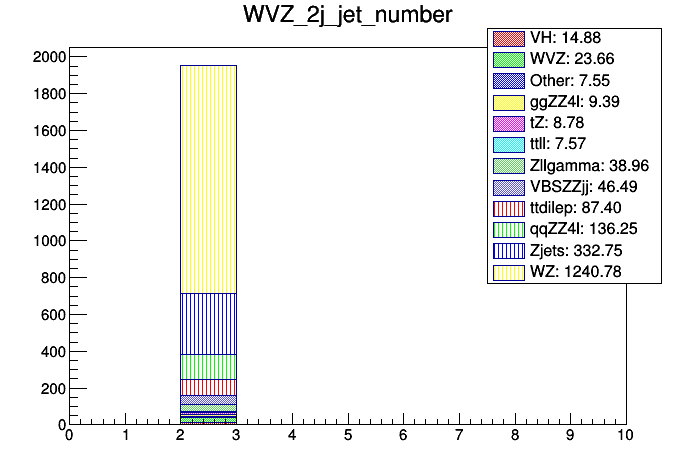

nJets |
 |
 |
 |
 |
| MET |

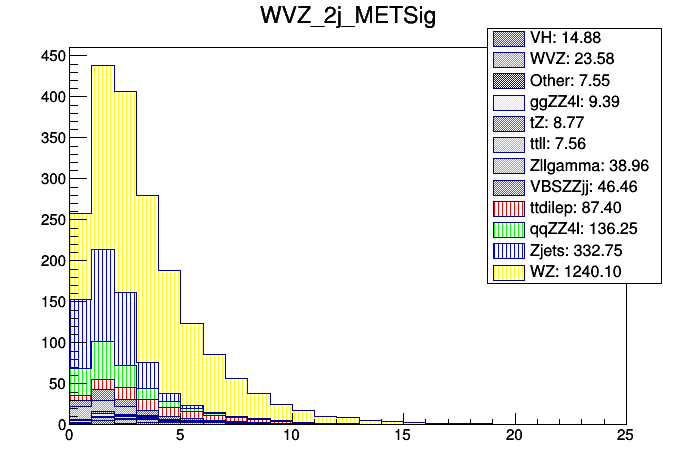

MET Sig |
nElectrons |

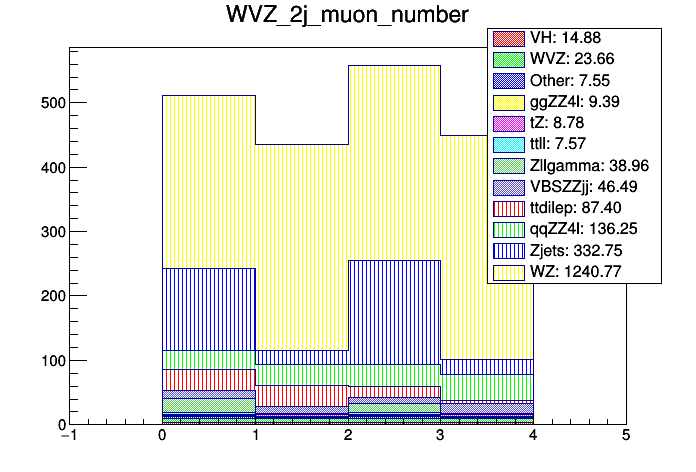

nMuons |
 |
 |
 |
 |
Lepton + Jet 4-Vectors
| Electrons |

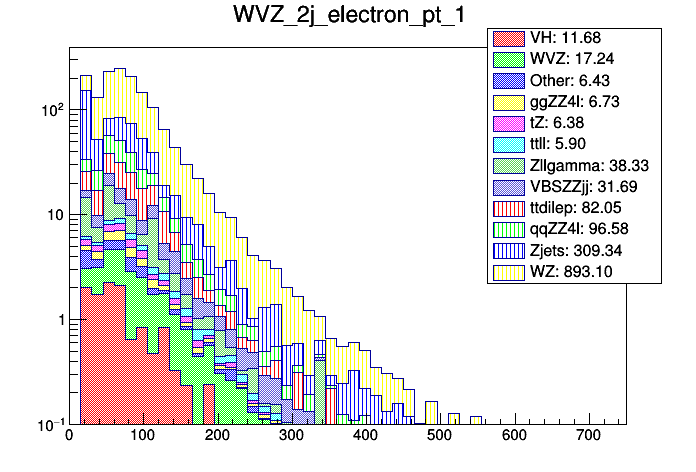

pT |
Eta |

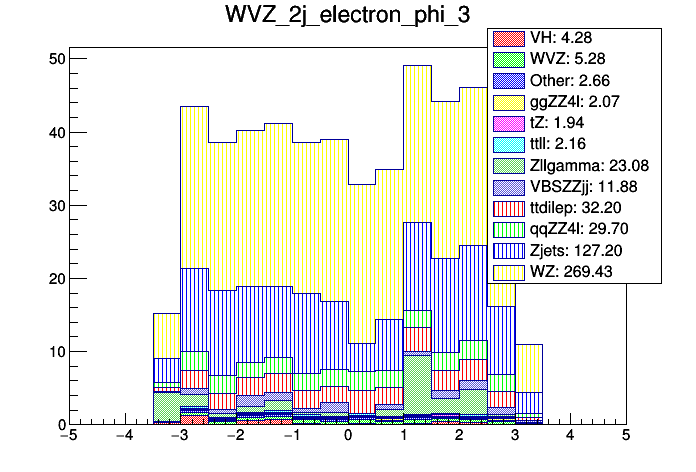

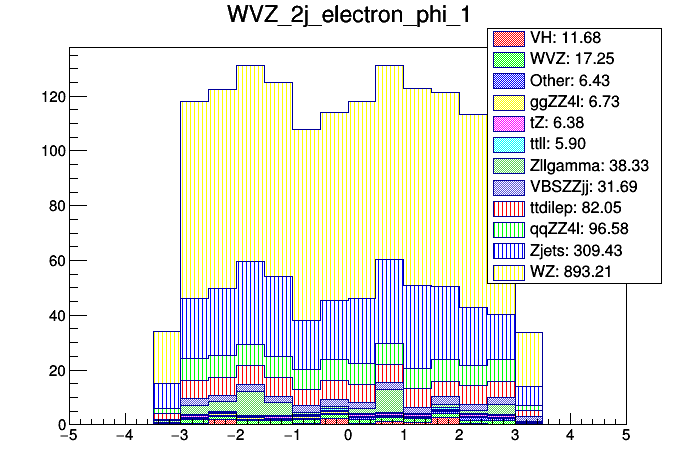

Phi |
Mass |
| Electron 1 |
 |
 |
 |
 |

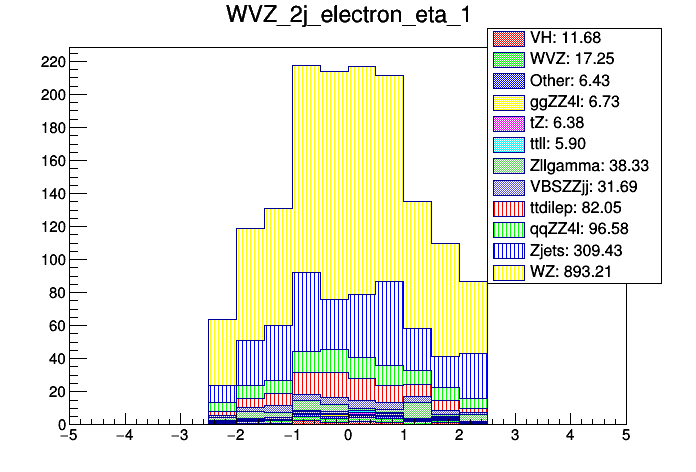

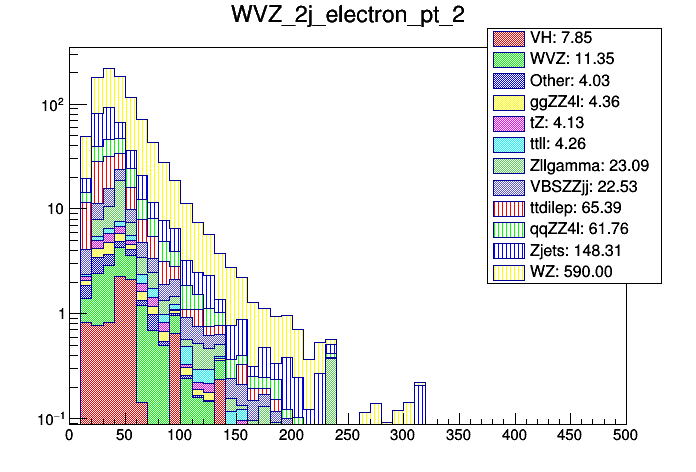

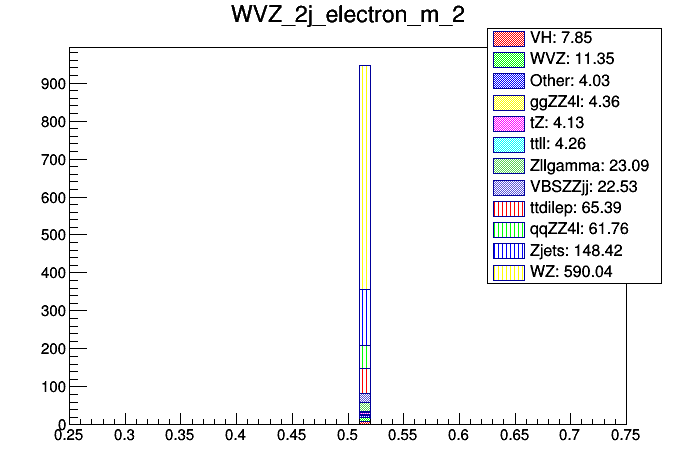

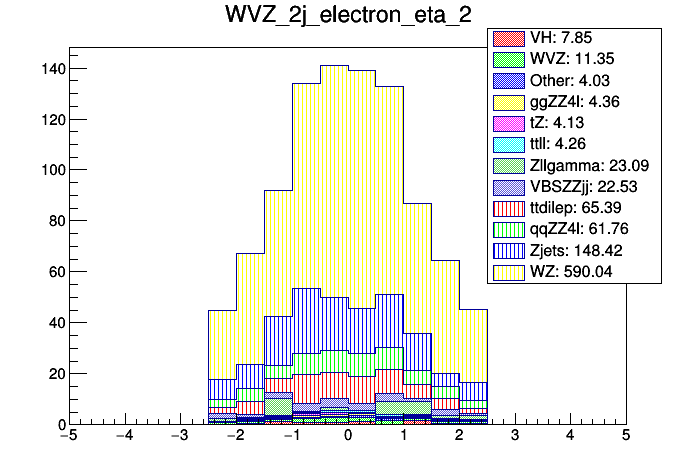

| Electron 2 |
 |
 |
 |
 |

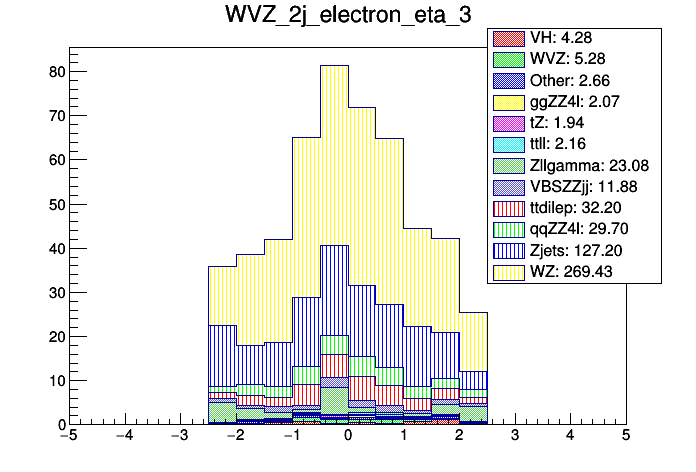

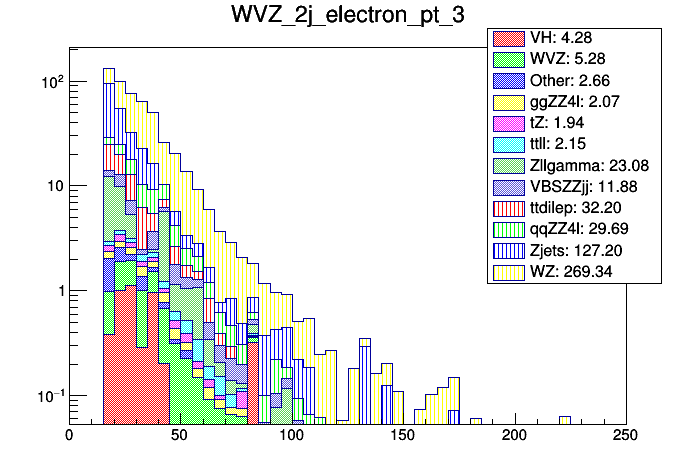

| Electron 3 |
 |
 |
 |
 |
| Muons |

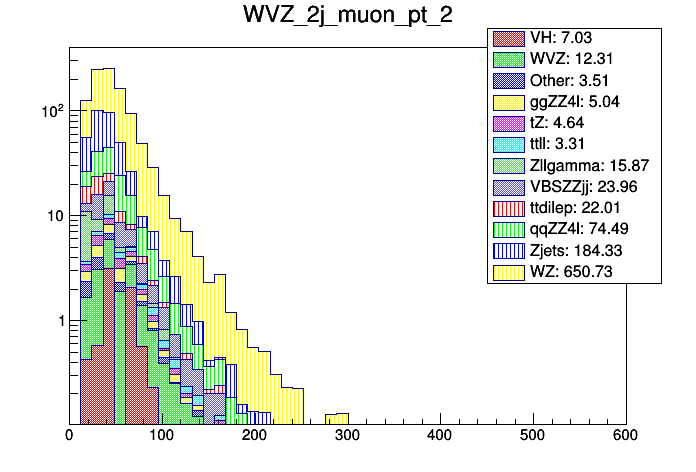

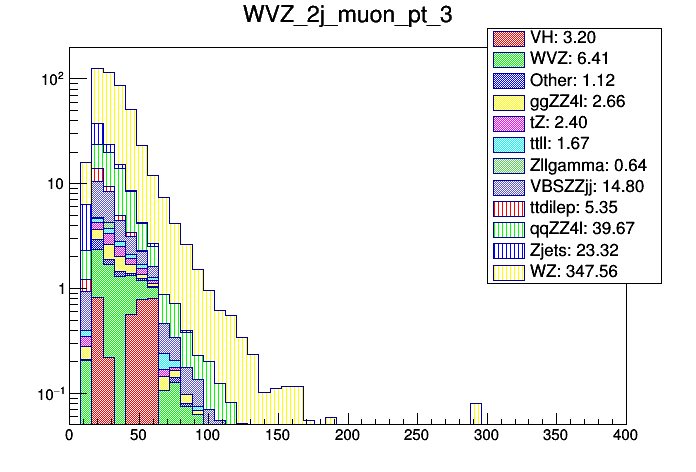

pT |

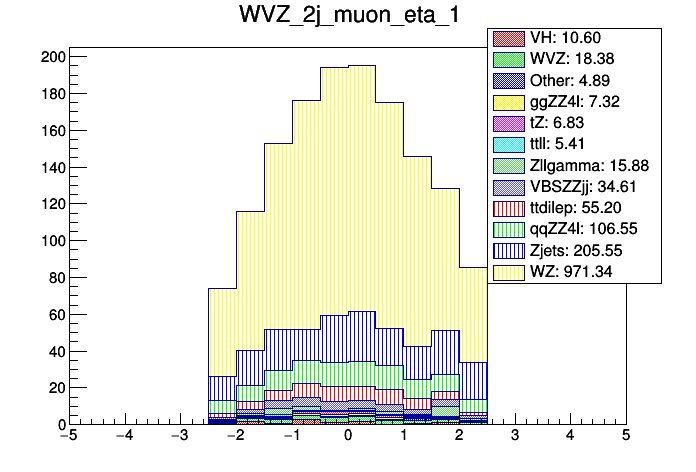

Eta |

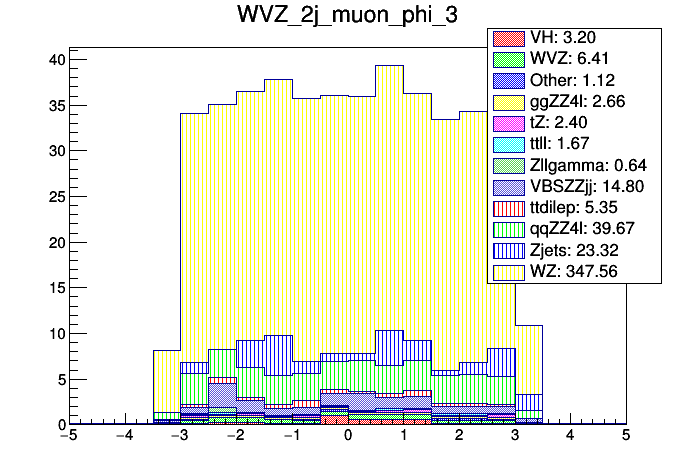

Phi |
Mass |

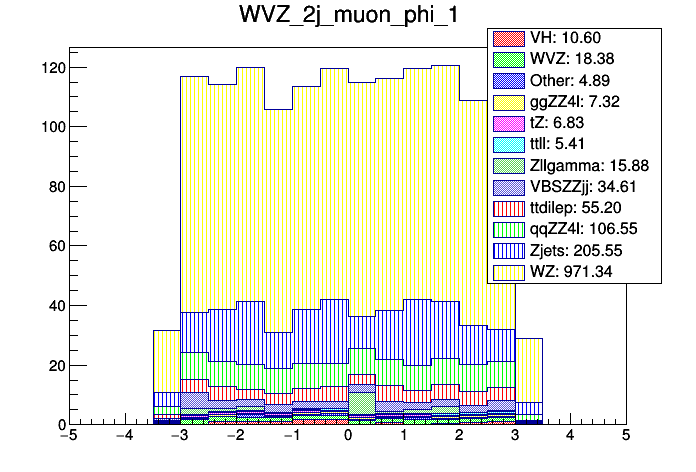

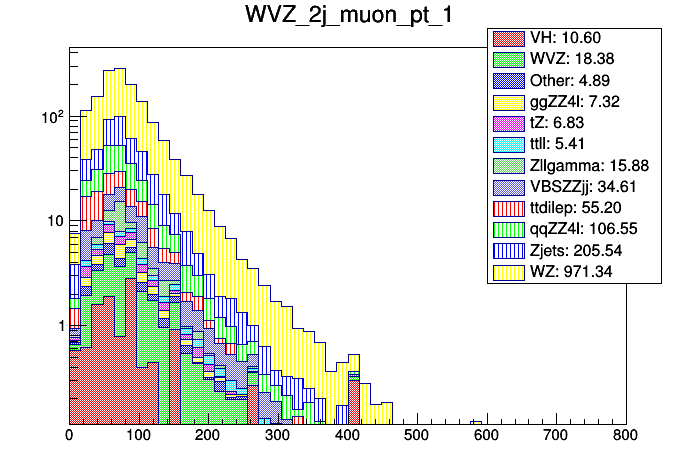

| Muon 1 |
 |
 |
 |
 |

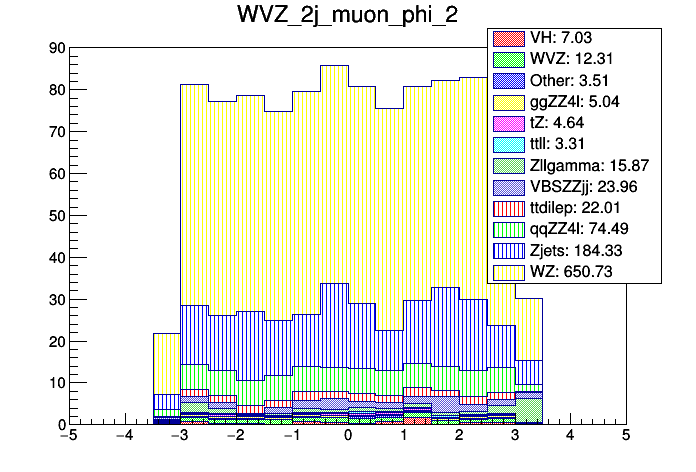

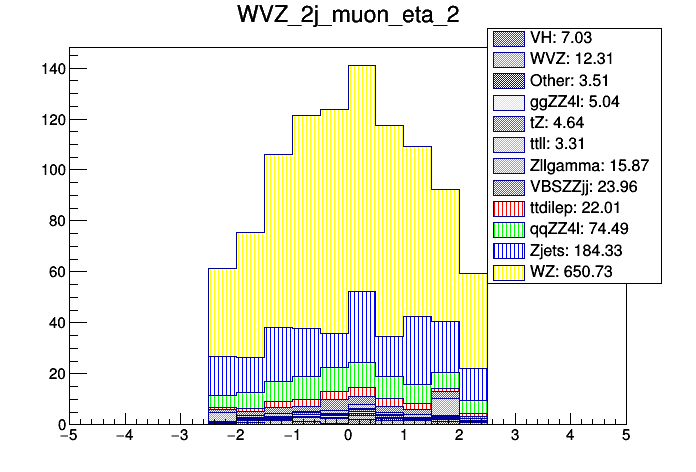

| Muon 2 |
 |
 |
 |
 |

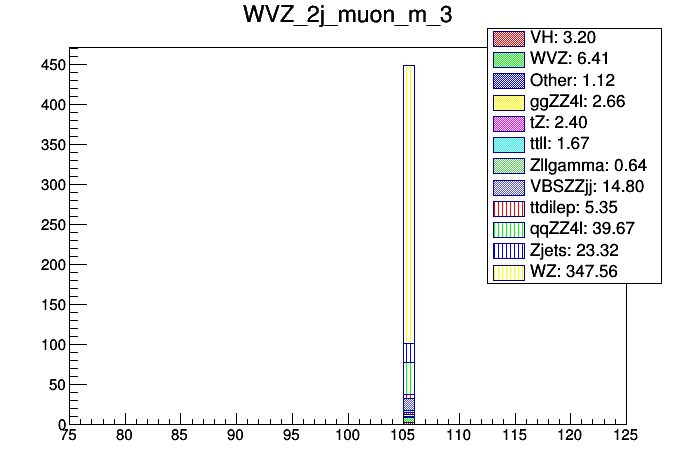

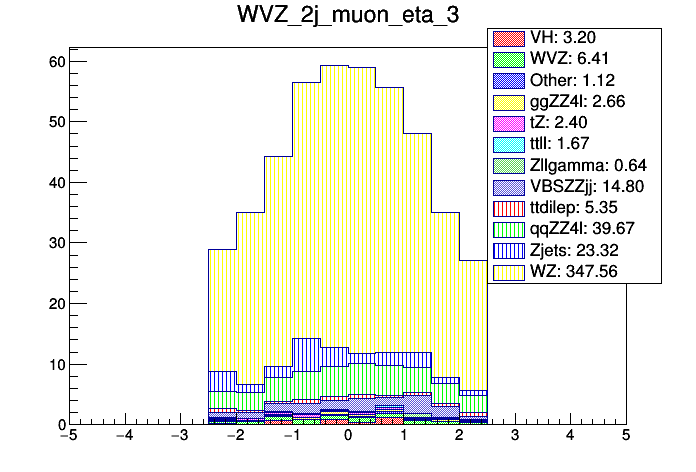

| Muon 3 |
 |
 |
 |
 |
| Jets |
pT |

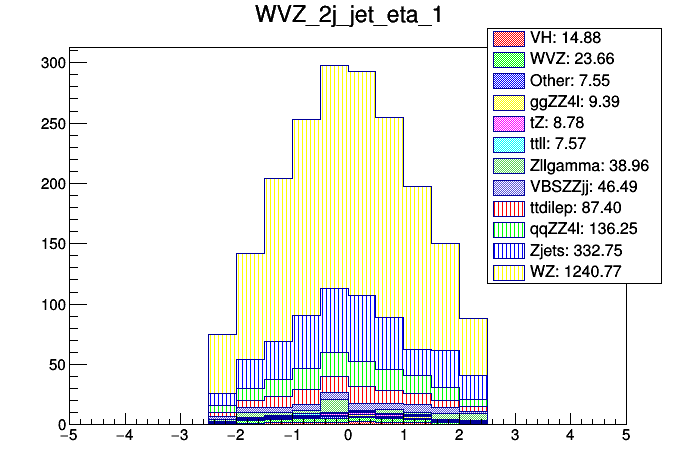

Eta |
Phi |

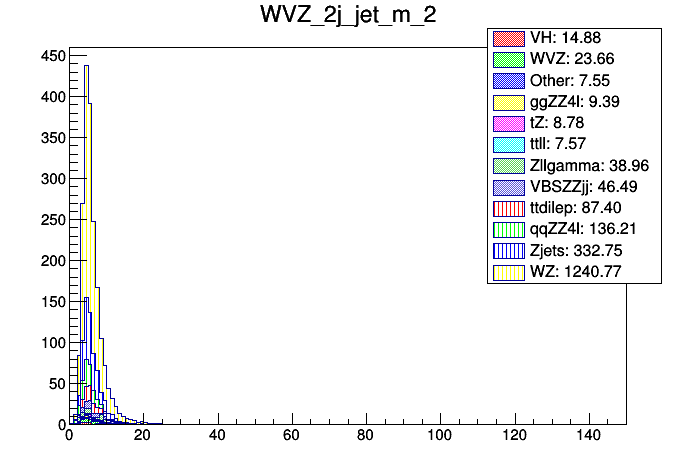

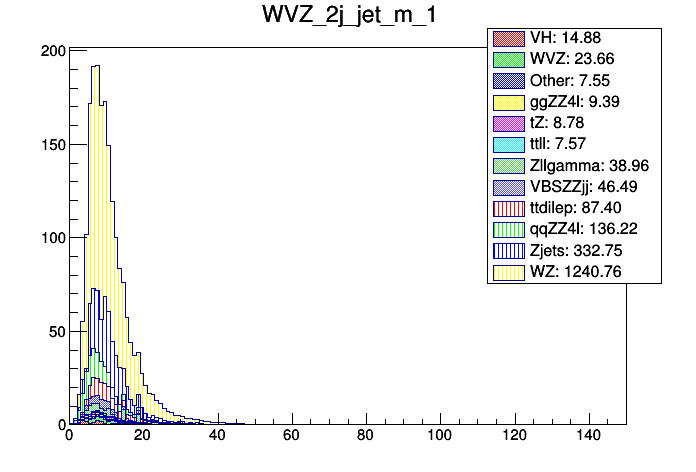

Mass |
| Jet 1 |
|
 |
 |
 |

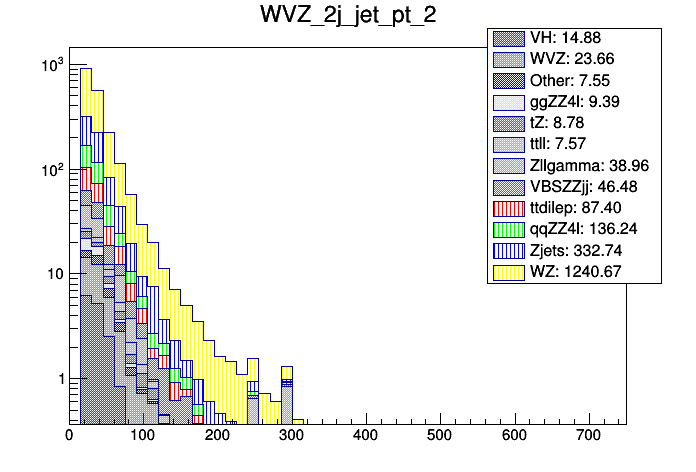

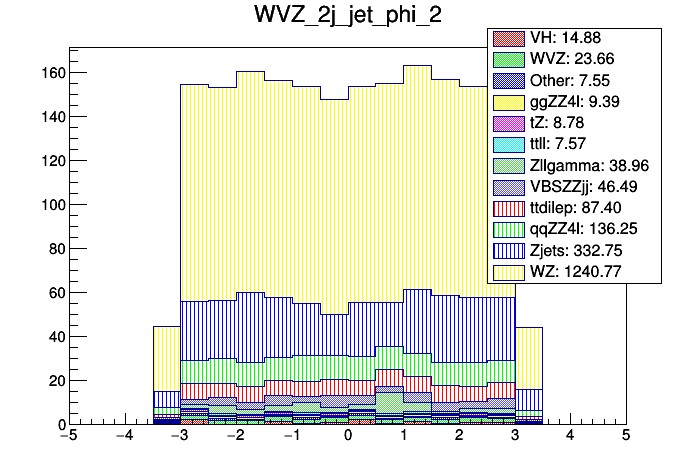

| Jet 2 |
|
 |
 |
 |
