WVZ

WVZ

Baseline cuts + HT > 200 GeV cut, all mc16 samples

• >= 1 jet
• Exactly 3 leptons
• At least 1 SFOS Pair
• All SFOS Pairs inv mass > 12 GeV
• Non-Z lepton must match "tight" definition
• Z candidate must be within 10 GeV of Z mass
• All lepton pT > 15 GeV
• Eta cuts on leptons and jets
• Jets cannot be b-tagged (70% WP)

Misc Plots

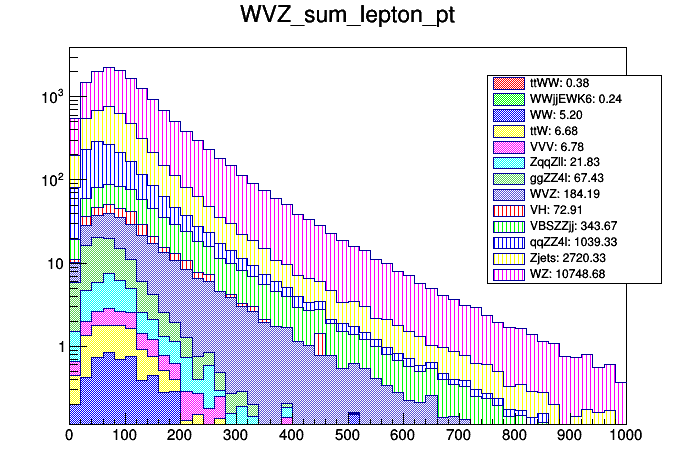

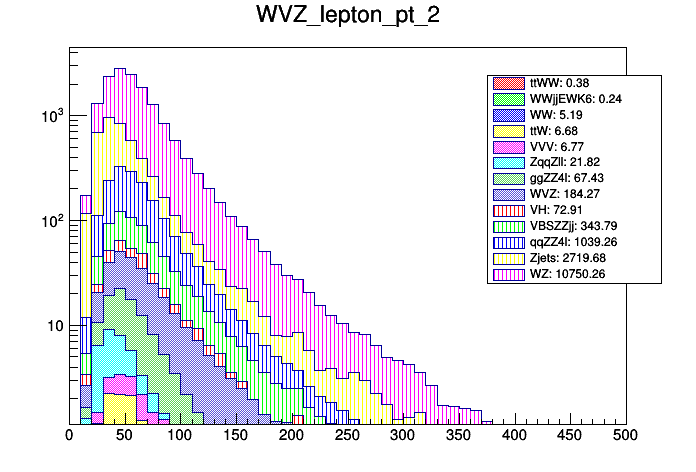

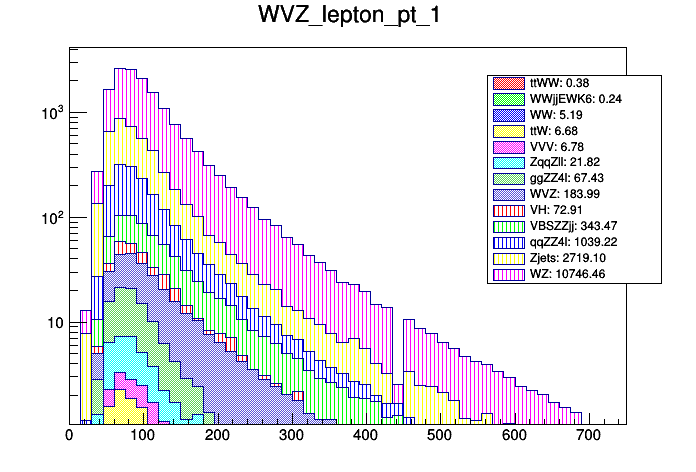

Lepton 1 pT	Lepton 2 pT	Lepton 3 pT	Sum of Lepton pT

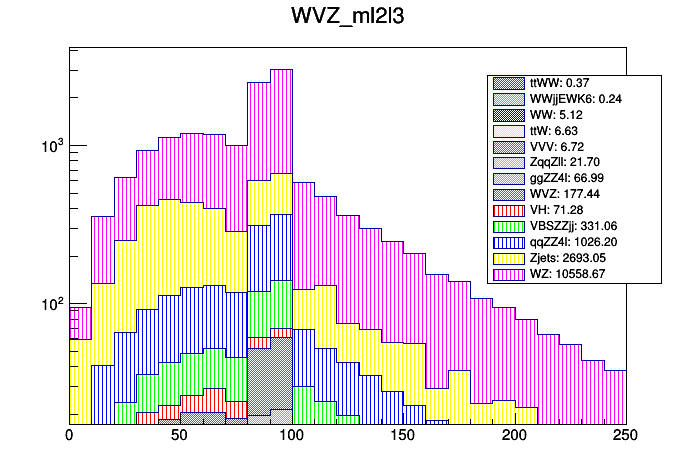

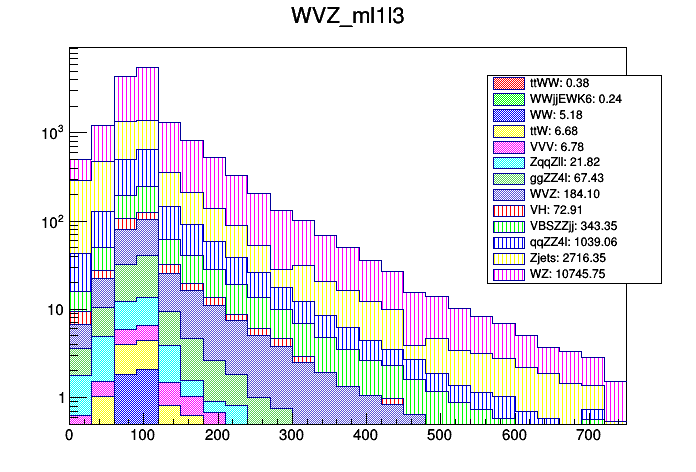

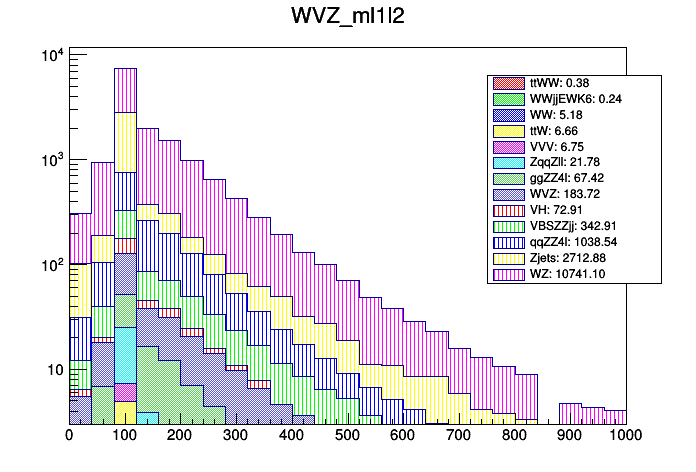

ml1l2	ml1l3	ml2l3	m3l

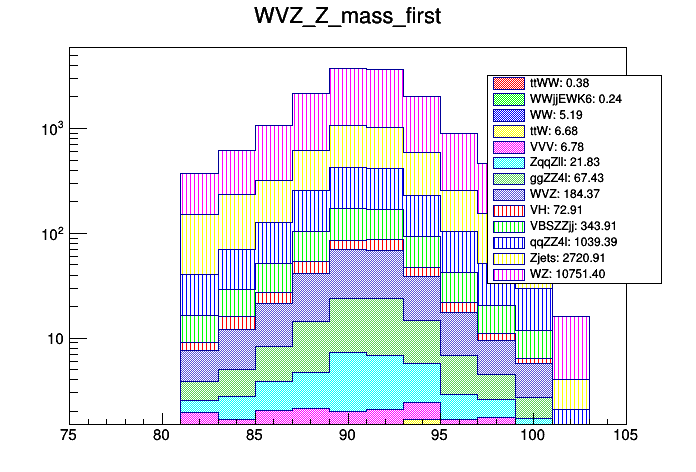

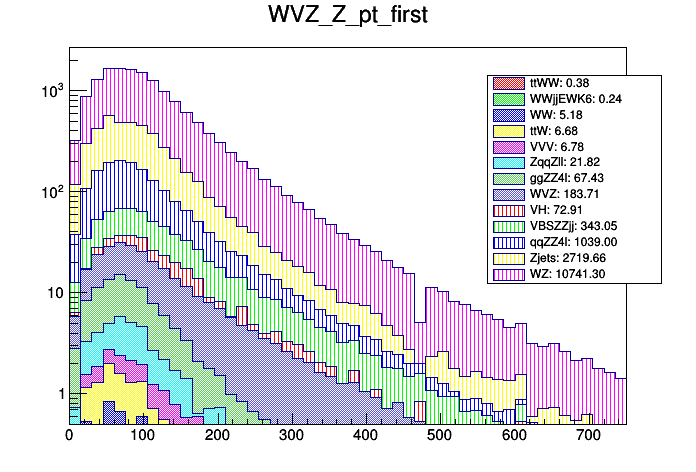

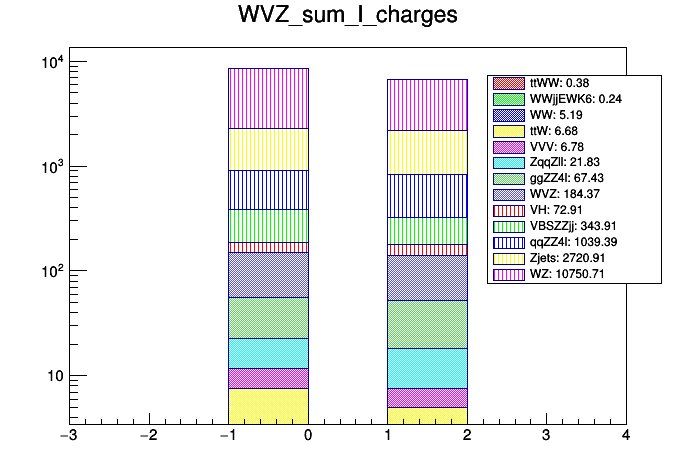

Z pT	Z Mass	Sum of Lepton Charges

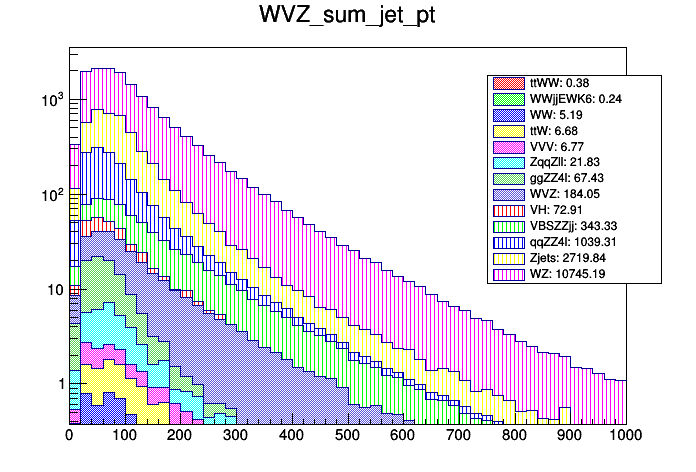

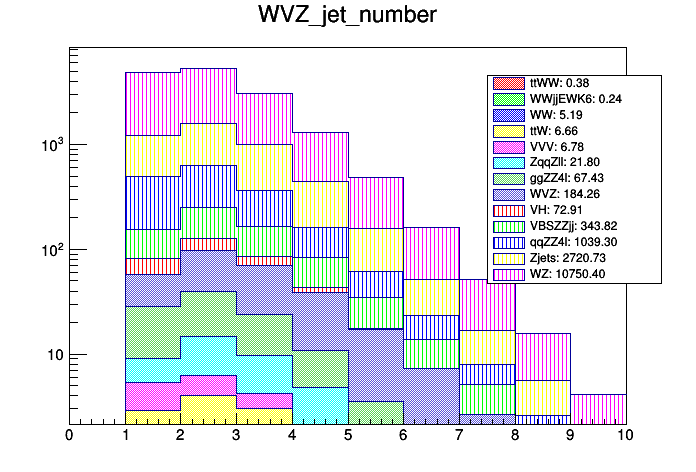

Jet 1 pT	Jet 2 pT	Sum of Jet pT	nJets

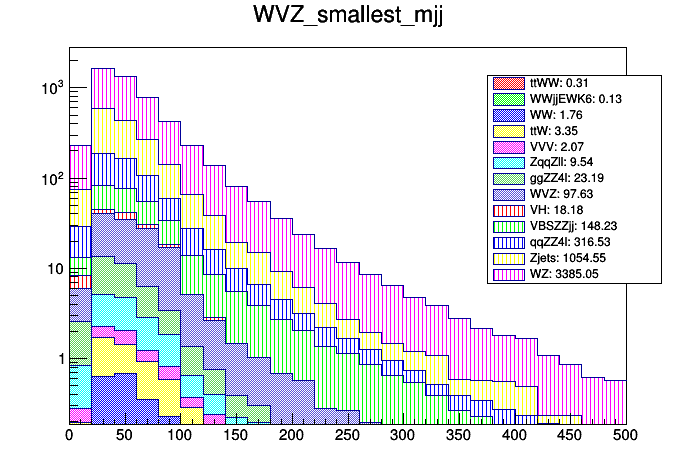

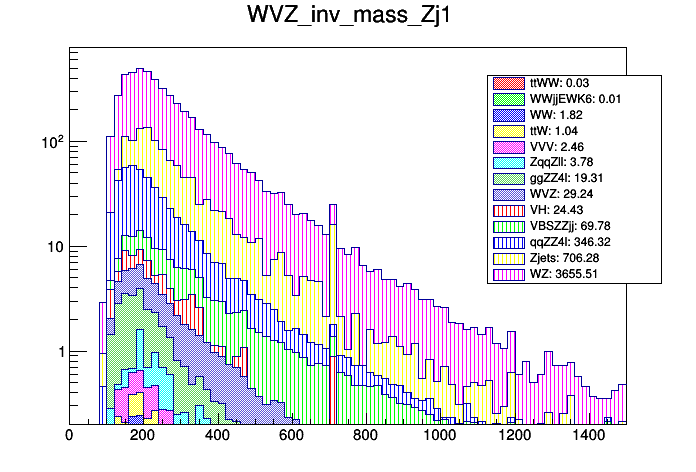

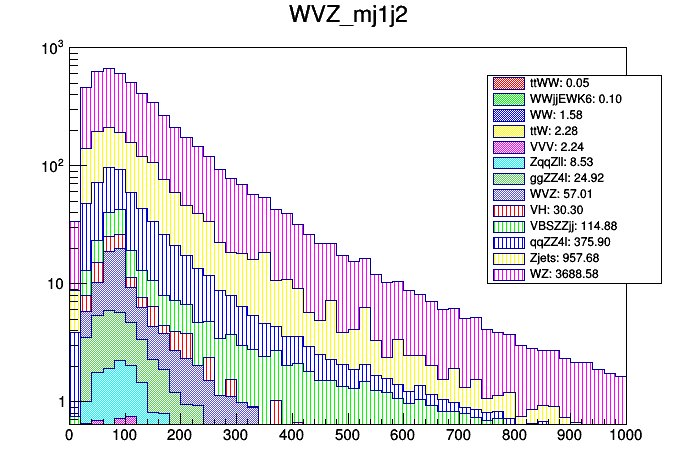

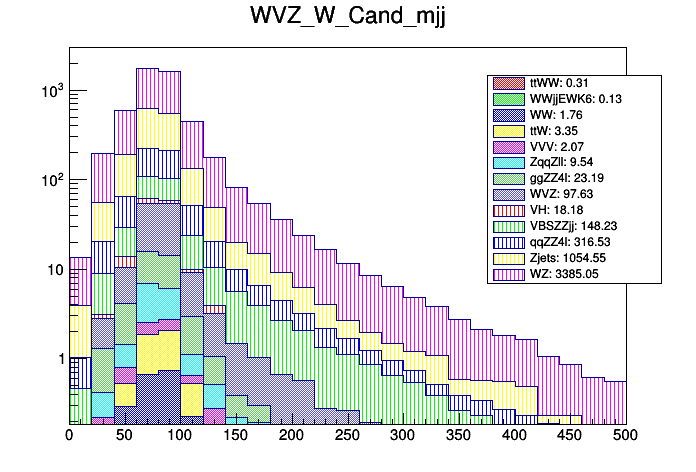

mZJ1 (nJets = 1 only)	mJ1J2 (nJets = 2 only)	mJJ of Best W Candidate (nJets >= 3 only)	Smallest mJJ (nJets >= 3 only)

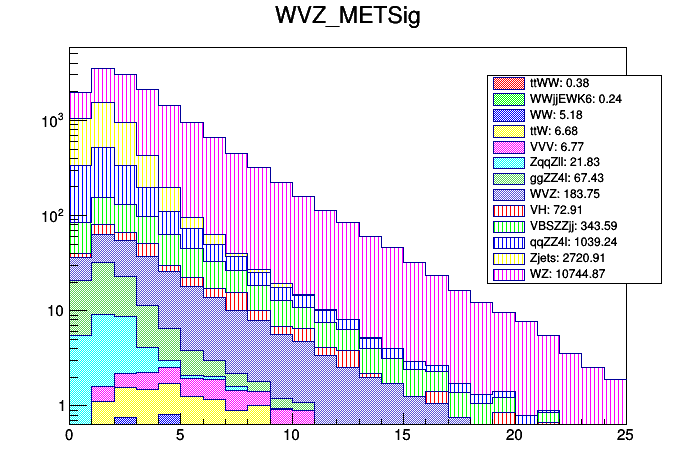

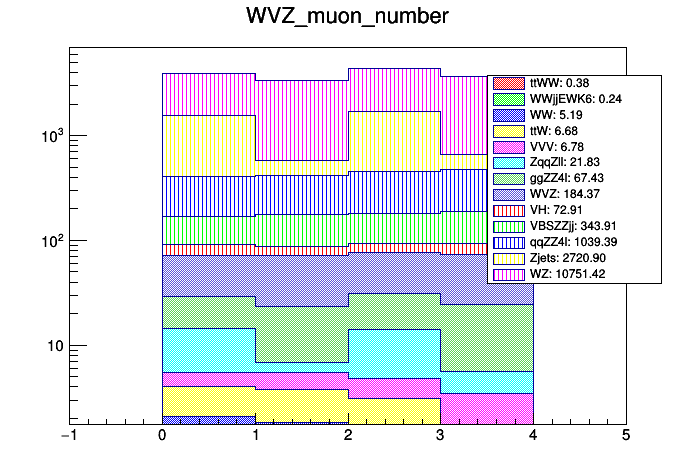

MET	MET Sig	nElectrons	nMuons

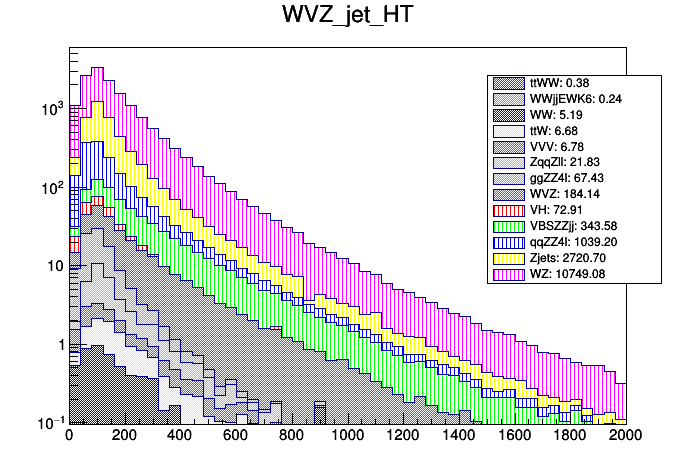

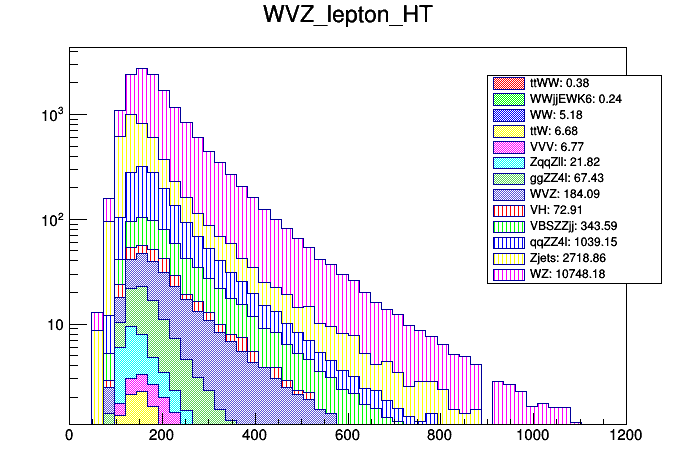

HT	Lepton HT	Jet HT

Lepton + Jet 4-Vectors

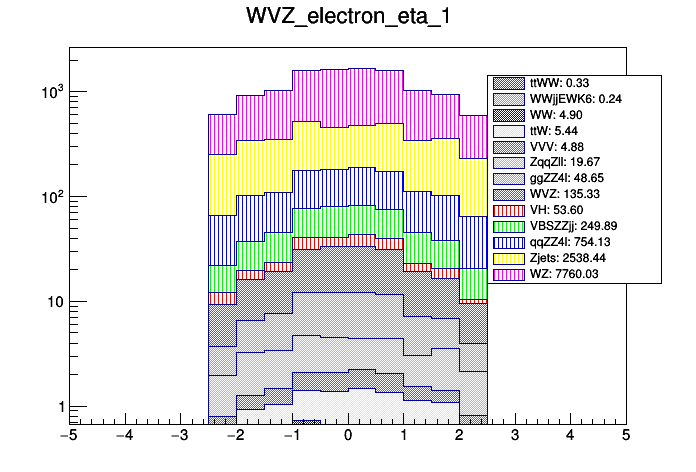

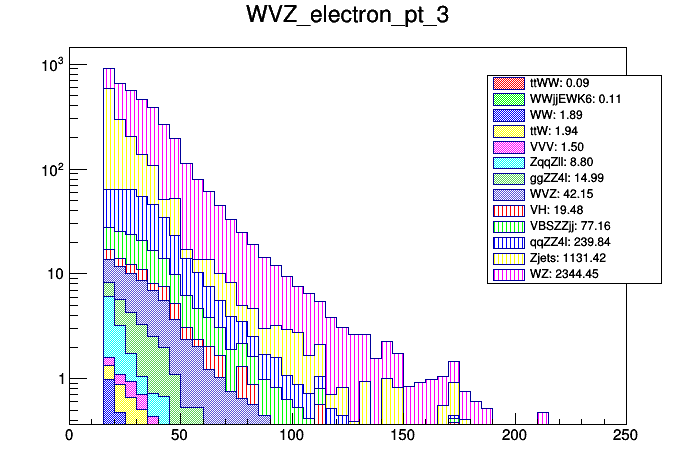

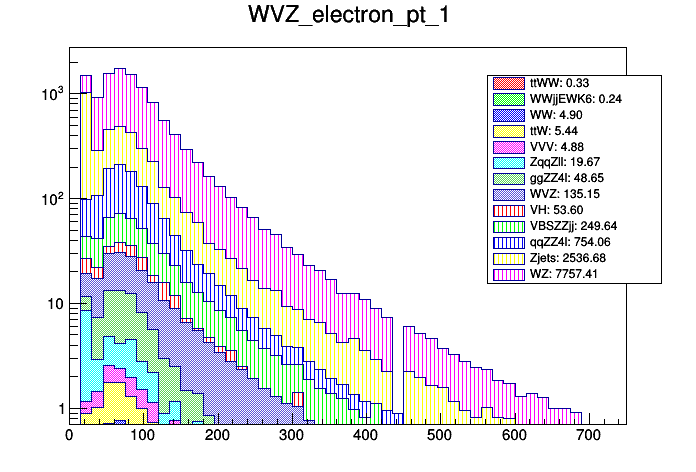

Electrons	pT	Eta	Phi	Mass

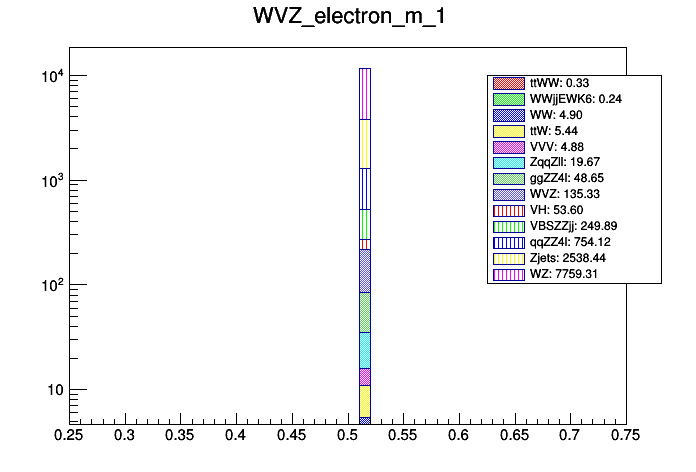

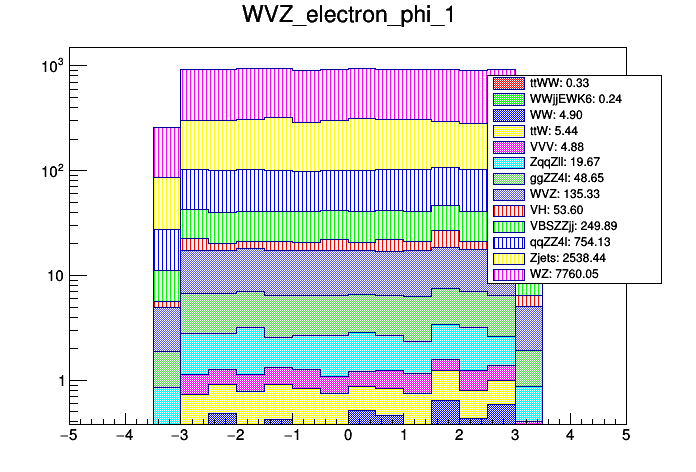

Electron 1

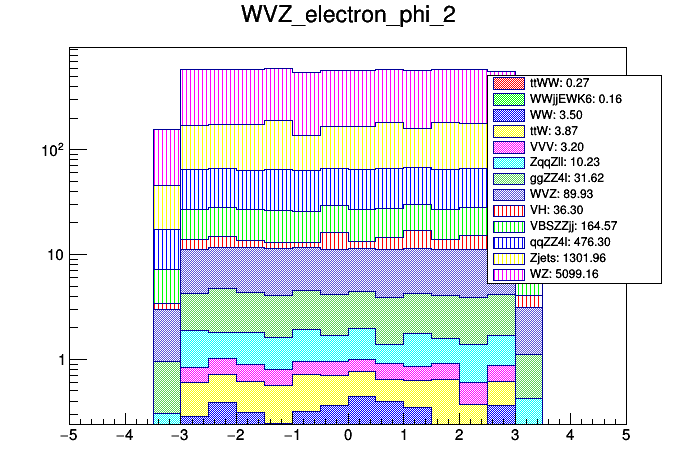

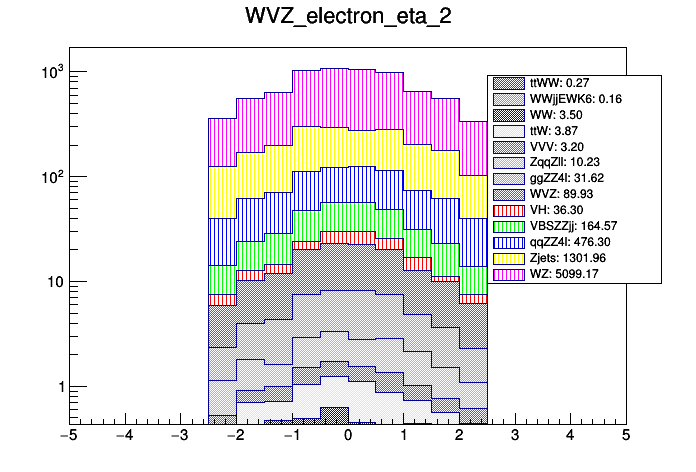

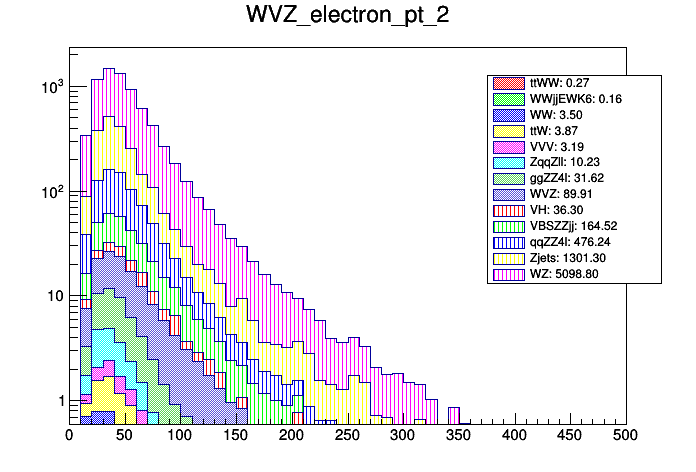

Electron 2

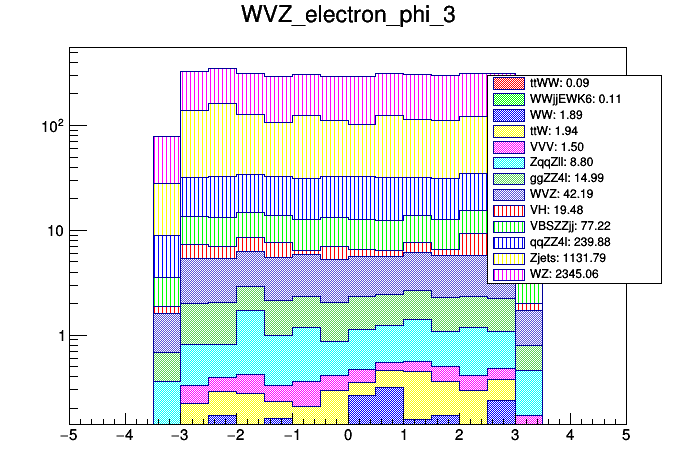

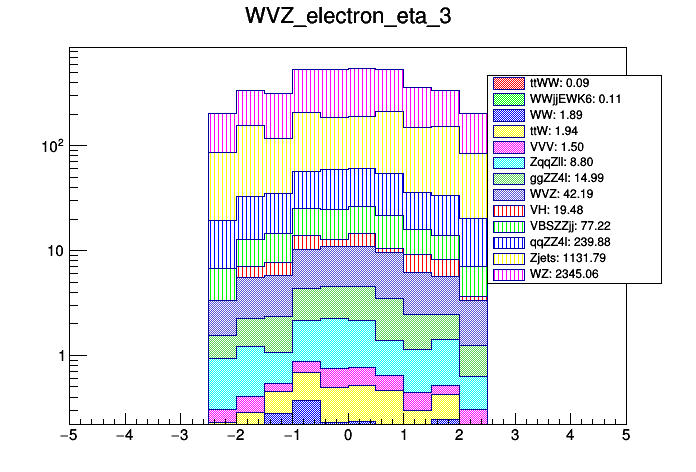

Electron 3

Muons	pT	Eta	Phi	Mass

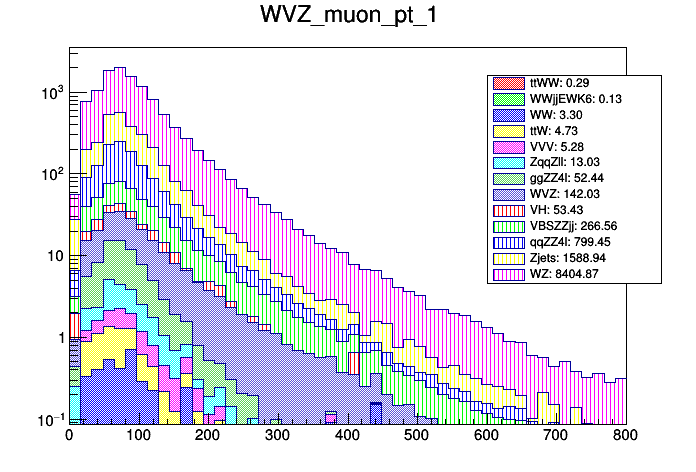

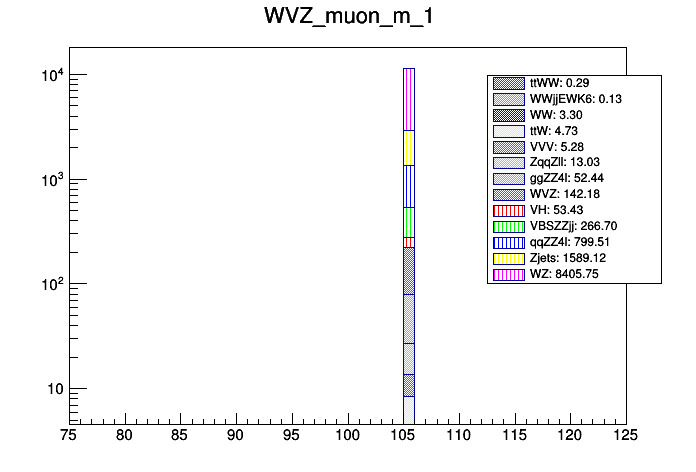

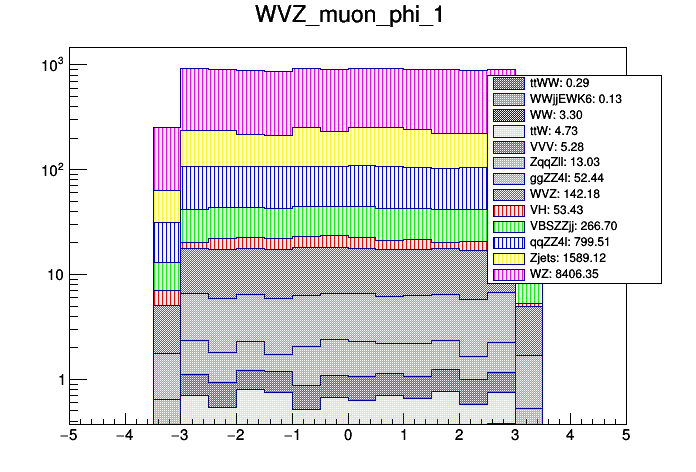

Muon 1

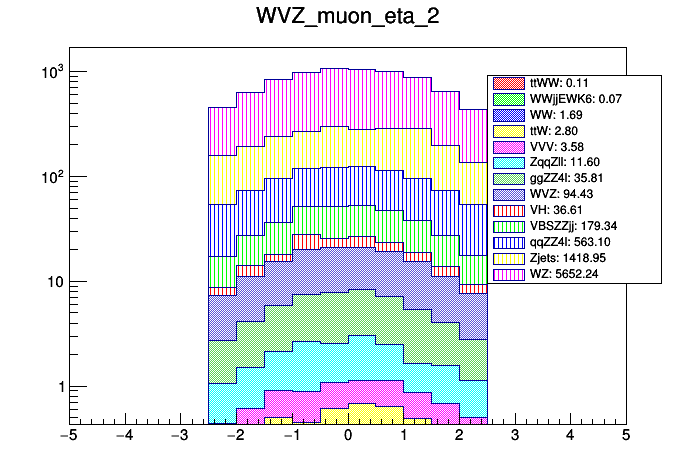

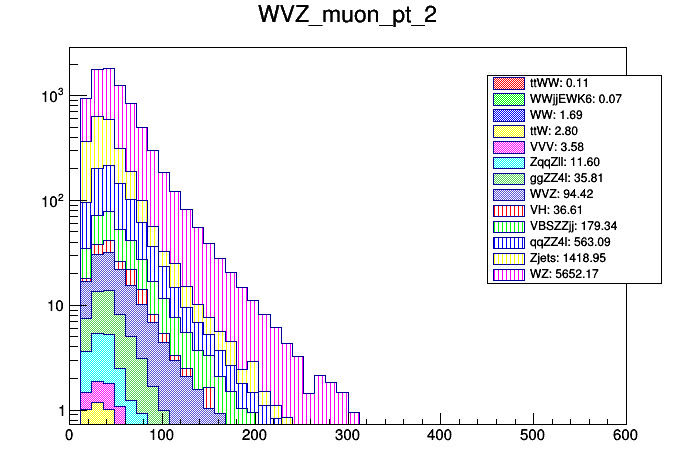

Muon 2

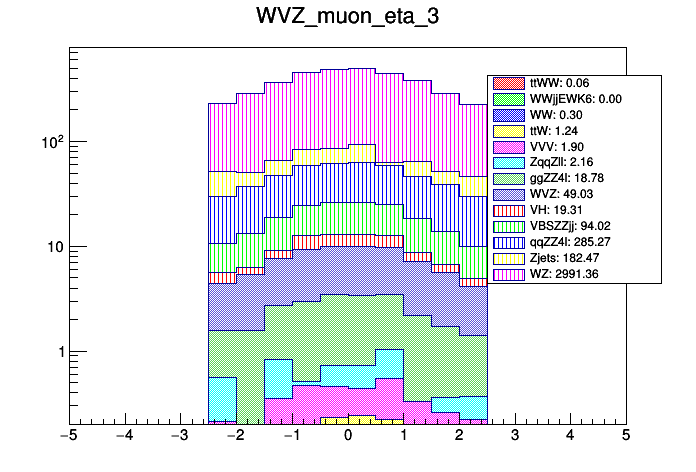

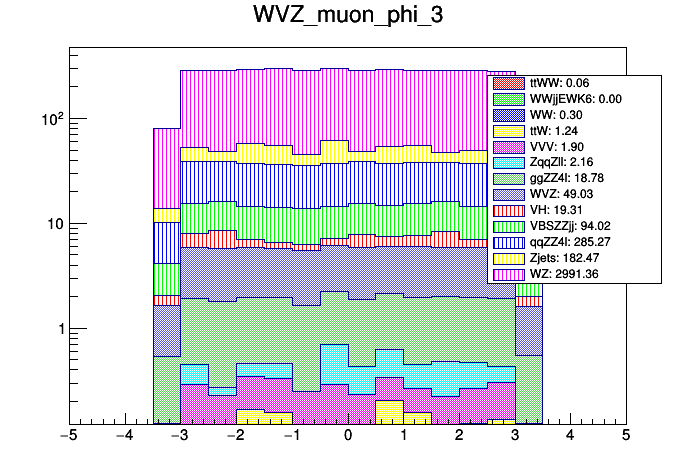

Muon 3

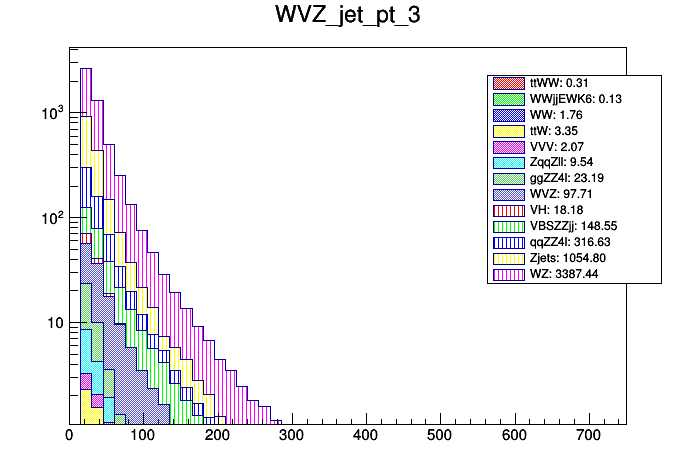

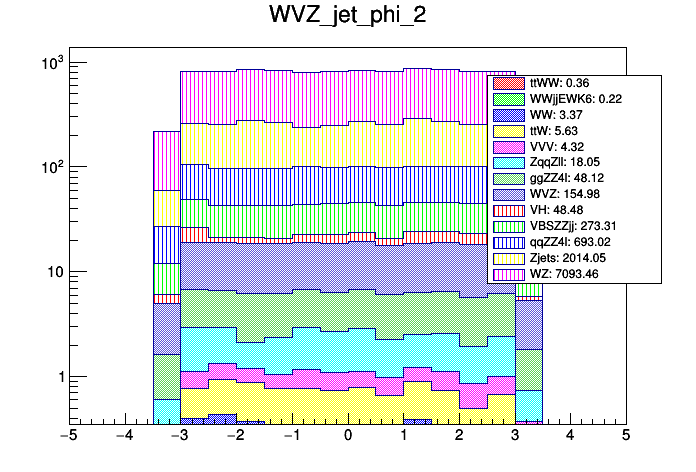

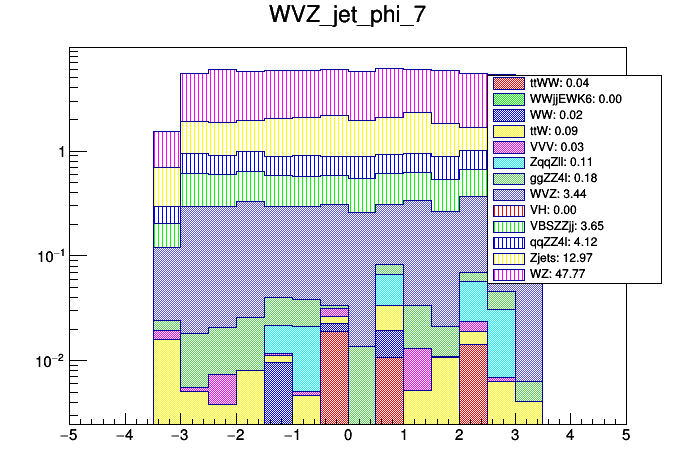

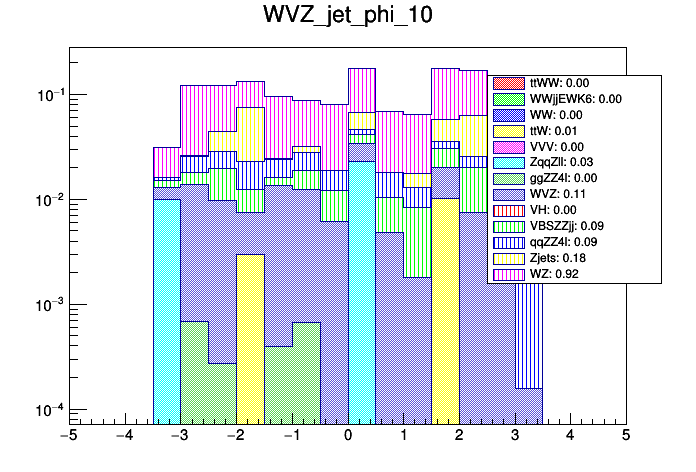

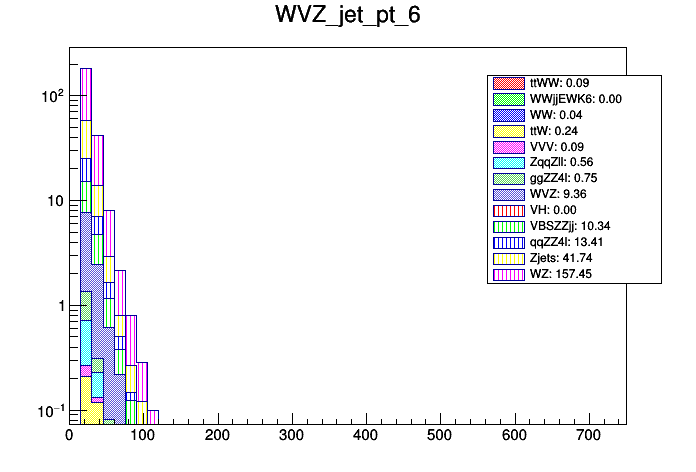

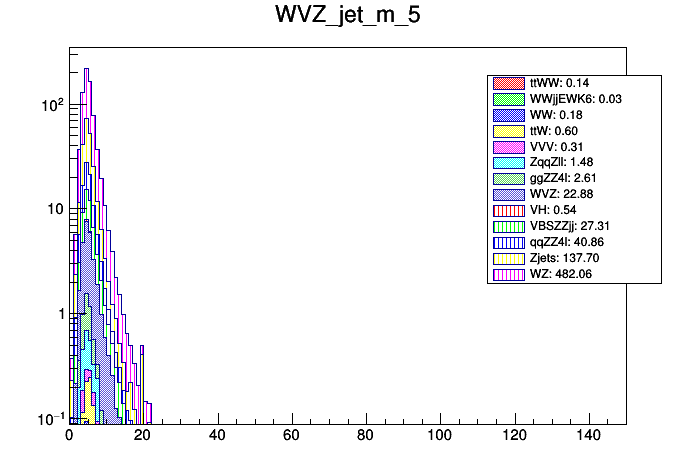

Jets	pT	Eta	Phi	Mass

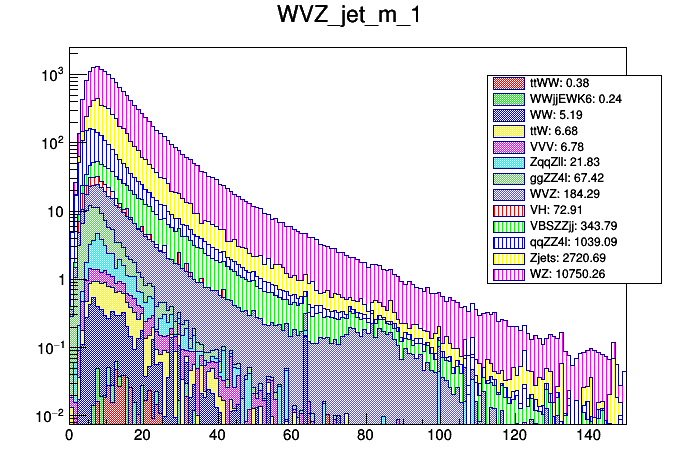

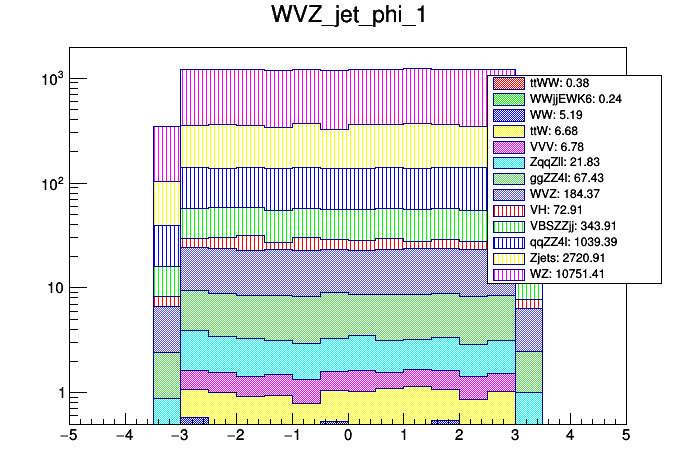

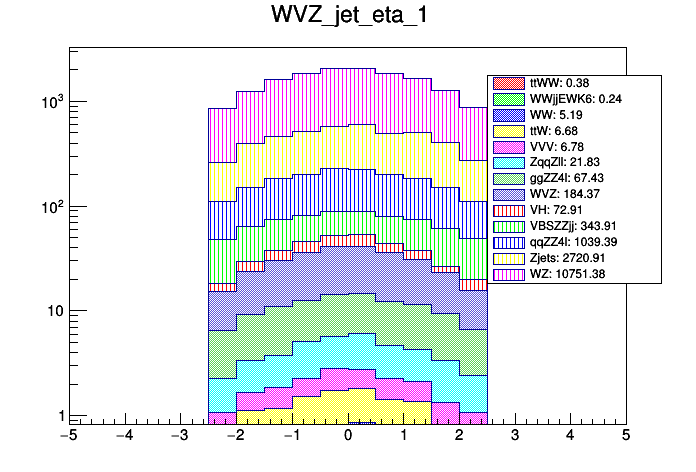

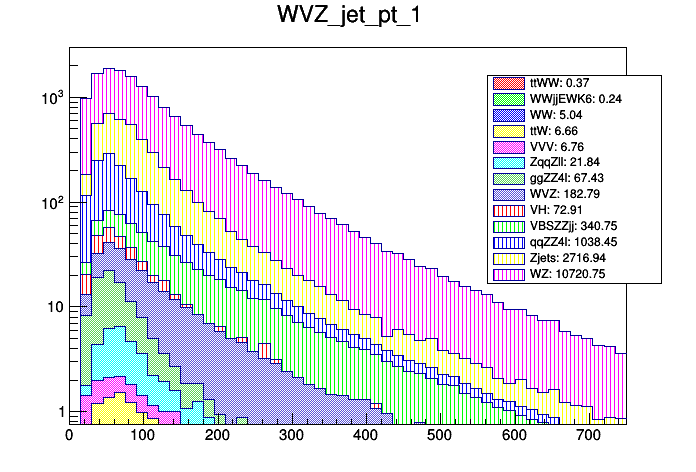

Jet 1

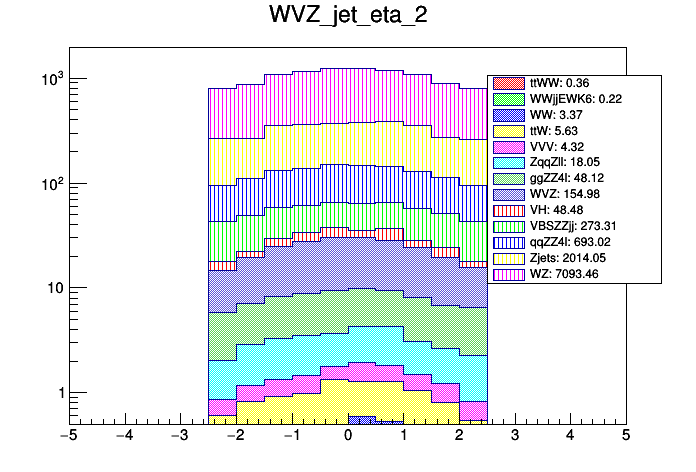

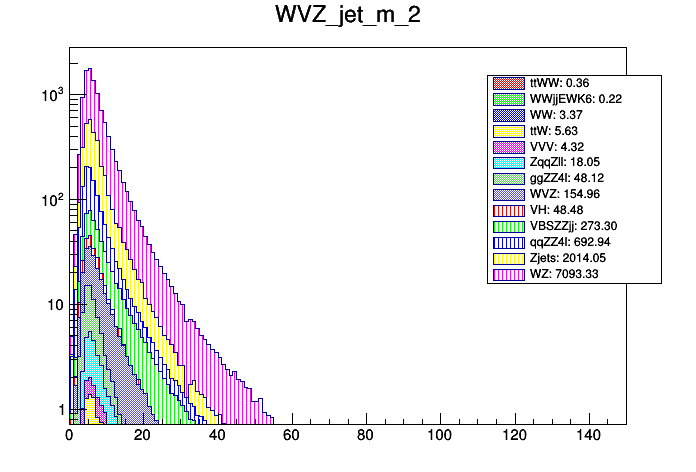

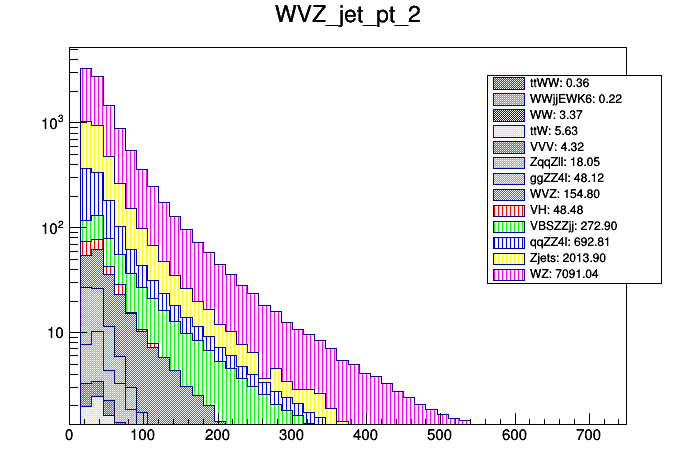

Jet 2

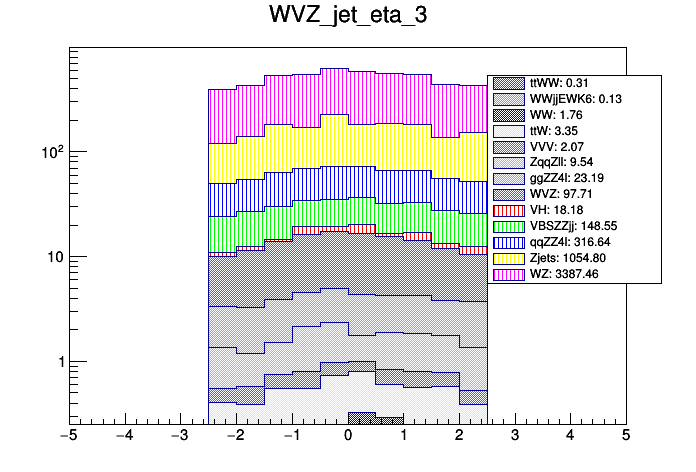

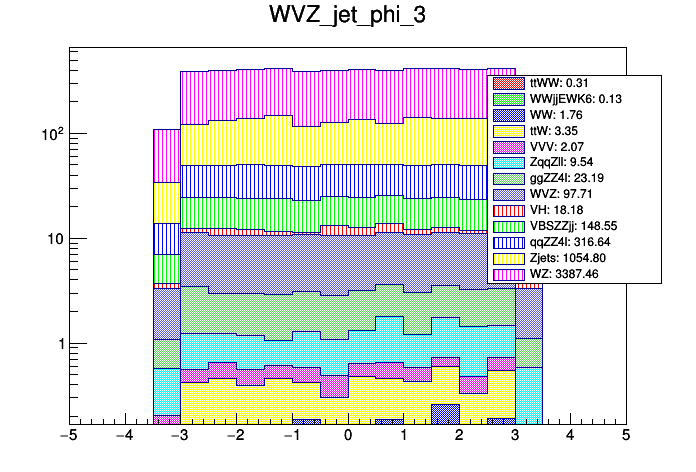

Jet 3

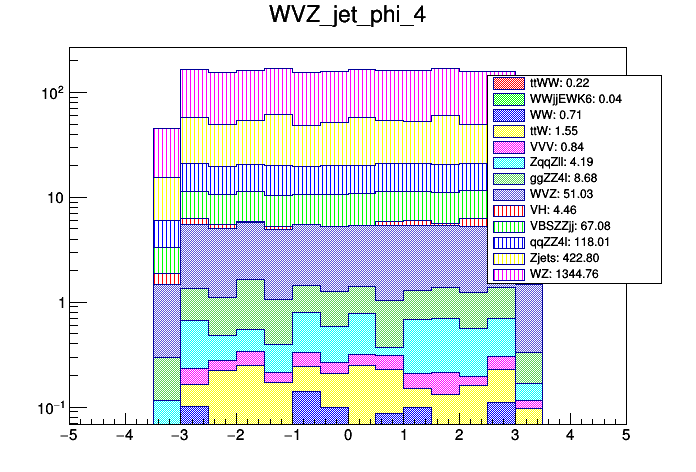

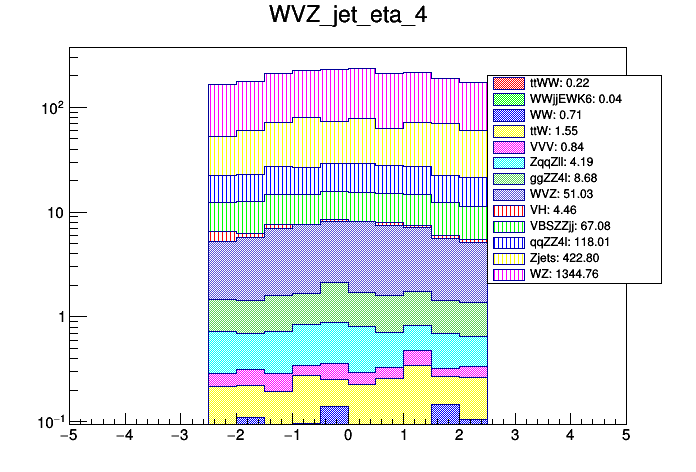

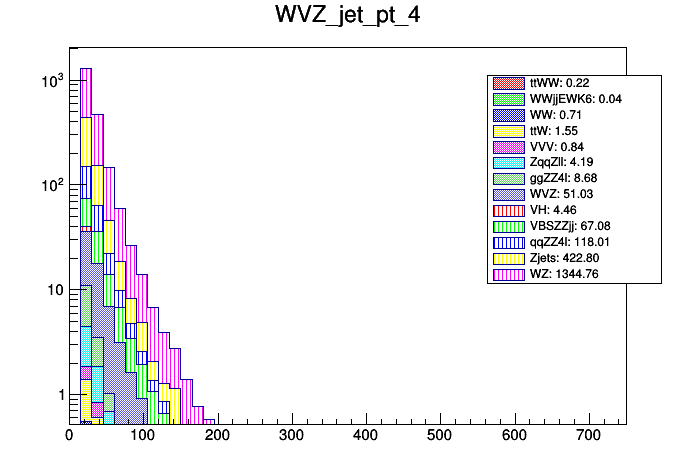

Jet 4

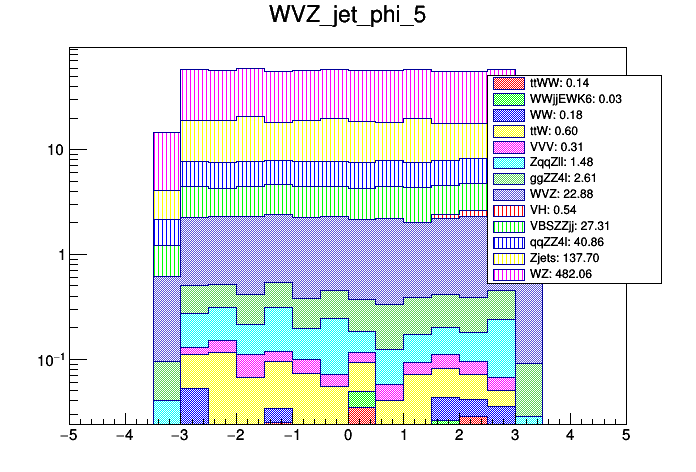

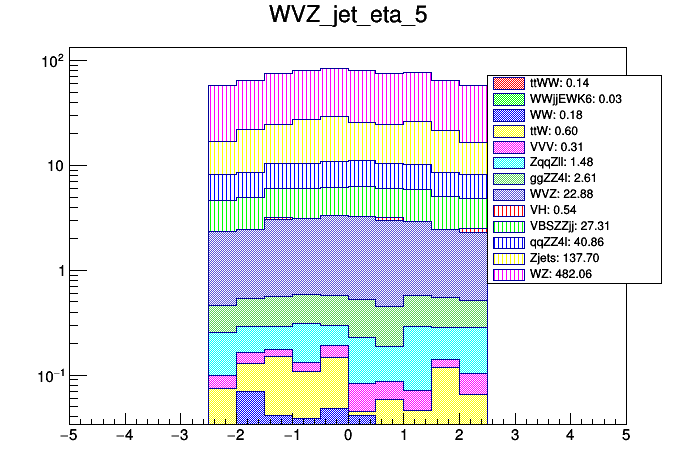

Jet 5

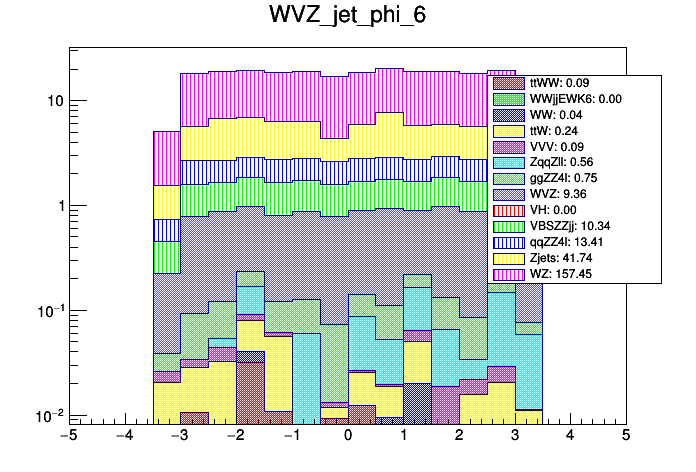

Jet 6

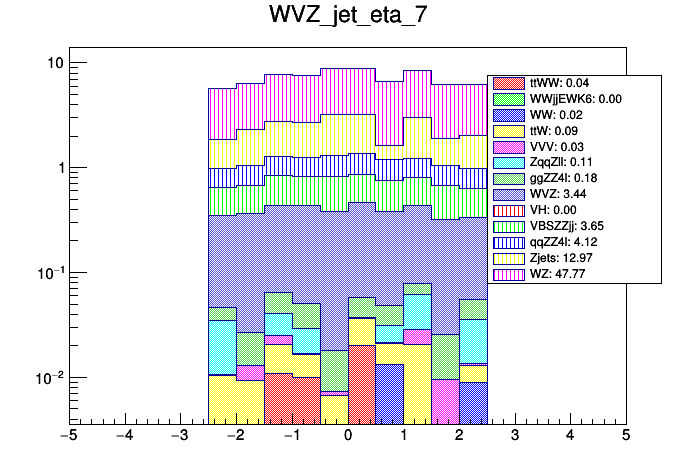

Jet 7

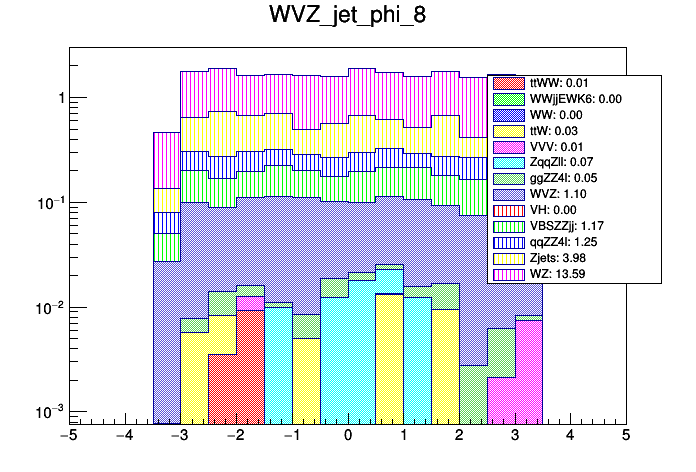

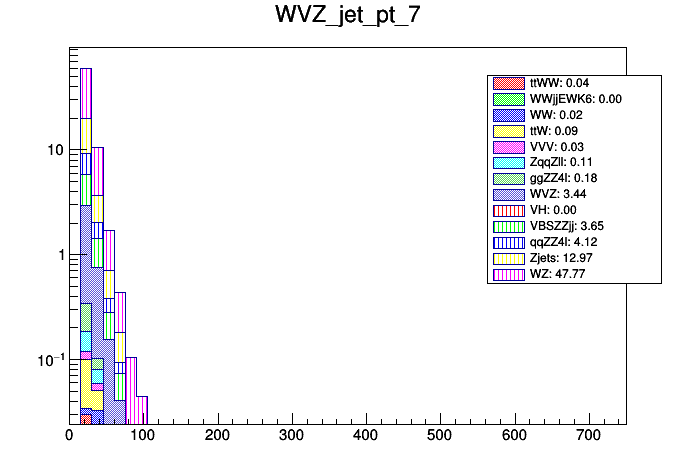

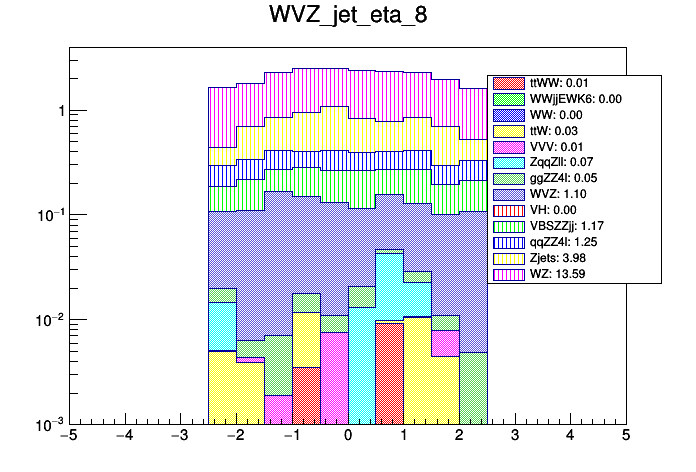

Jet 8

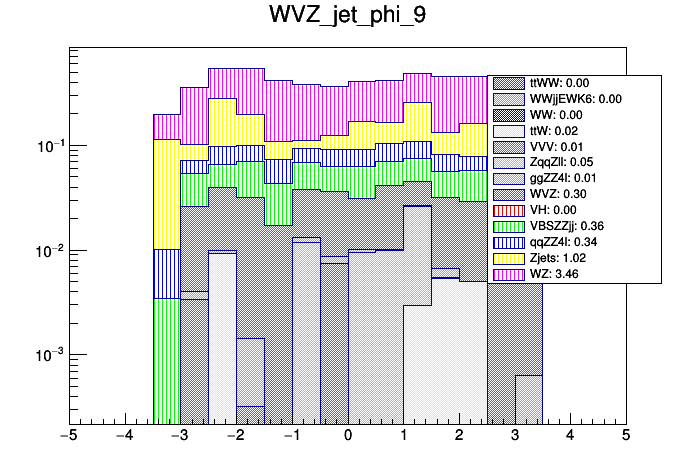

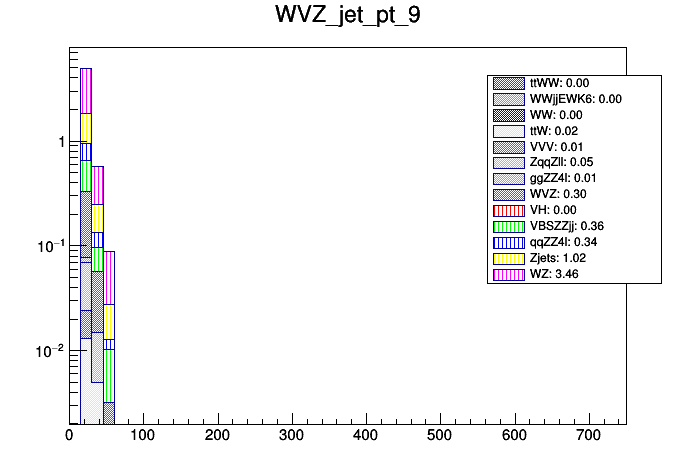

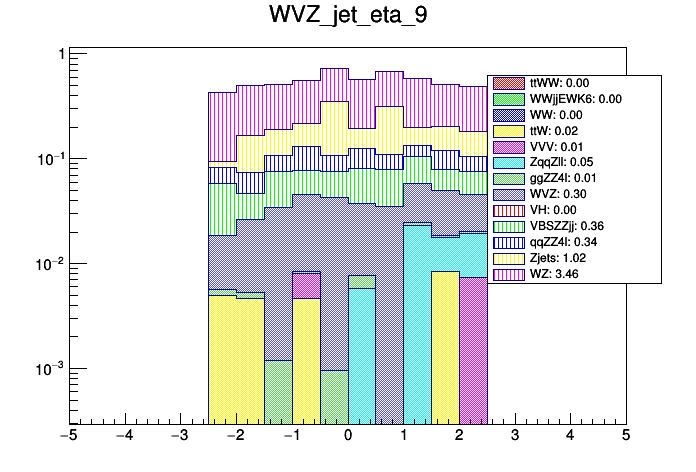

Jet 9

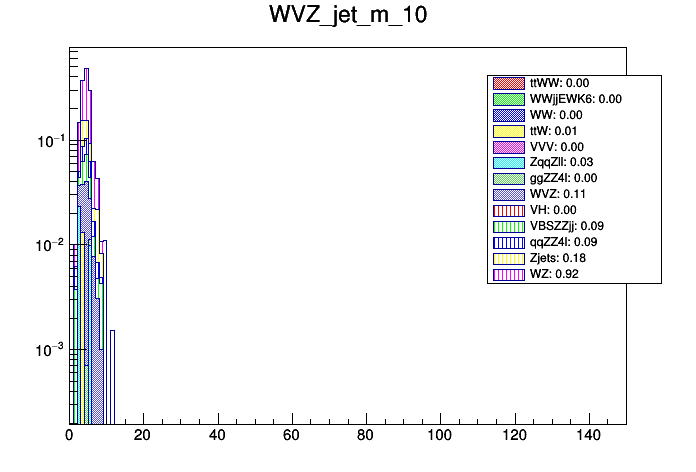

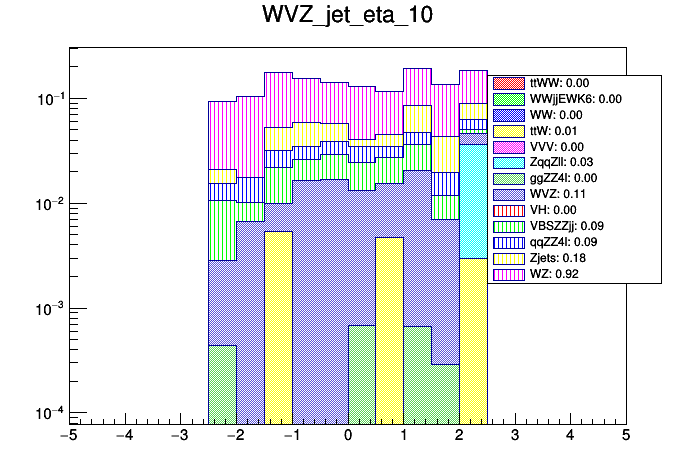

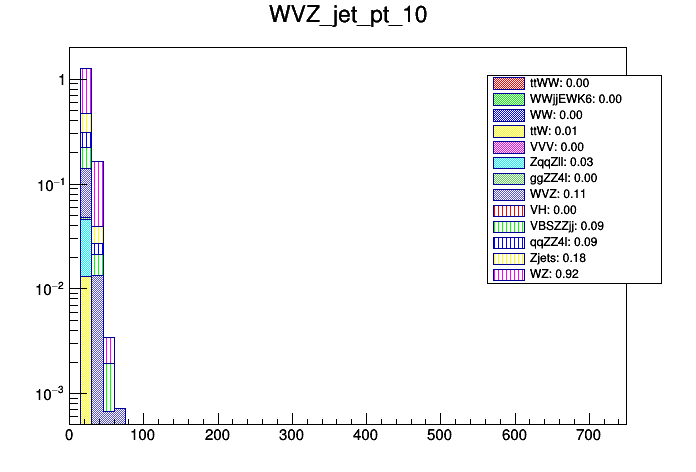

Jet 10
