WVZ
Comparison of different processes with cuts
- >= 1 jet
- Exactly 3 leptons
- 1 SFOS Pair
- Non-Z lepton must match tight definition
- Z candidate must be within 10 GeV of Z mass

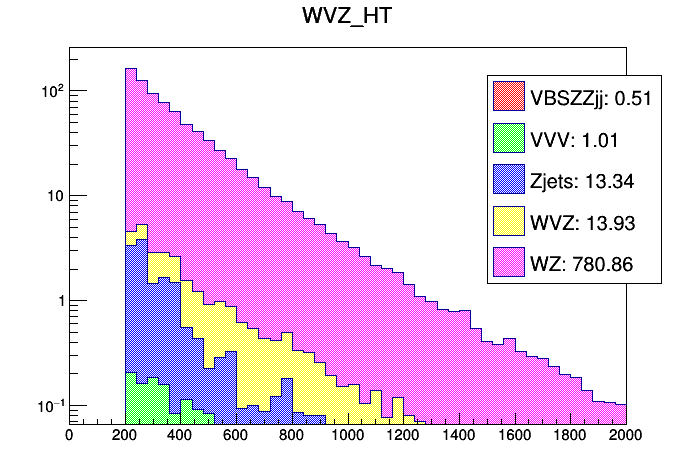

- HT > 200 GeV
- MET Significance > 5
- All lepton pT > 15 GeV
- Eta cuts on leptons and jets
- Jets cannot be b-tagged (77% WP)
Misc Plots
| Lepton 1 pT |

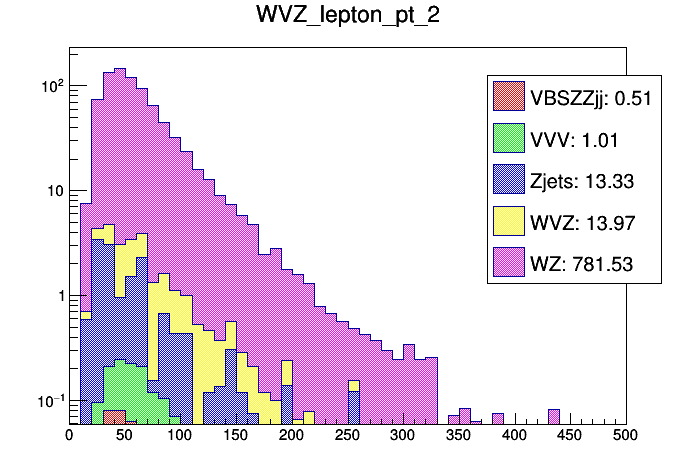

Lepton 2 pT |

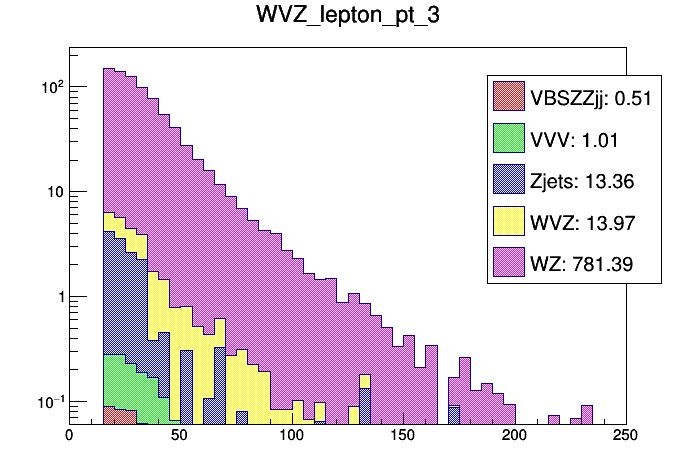

Lepton 3 pT |

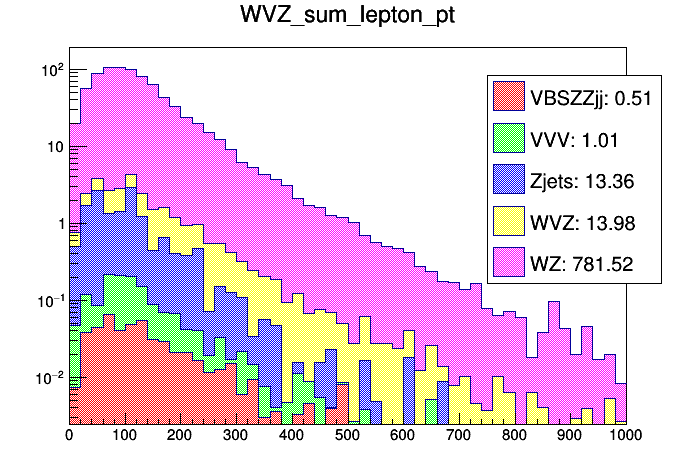

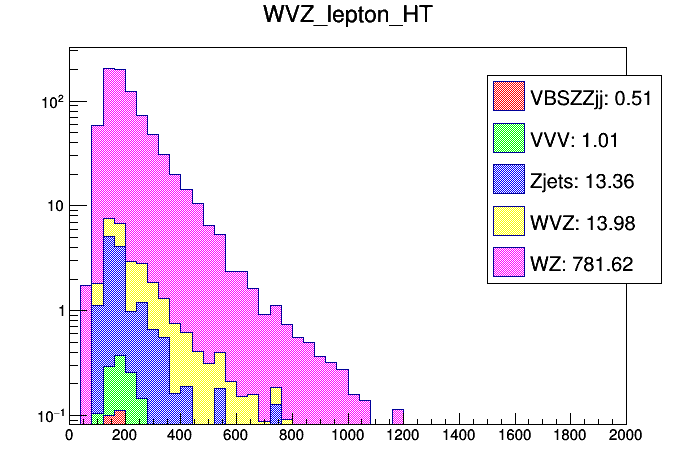

Sum of Lepton pT |
 |
 |
 |
 |

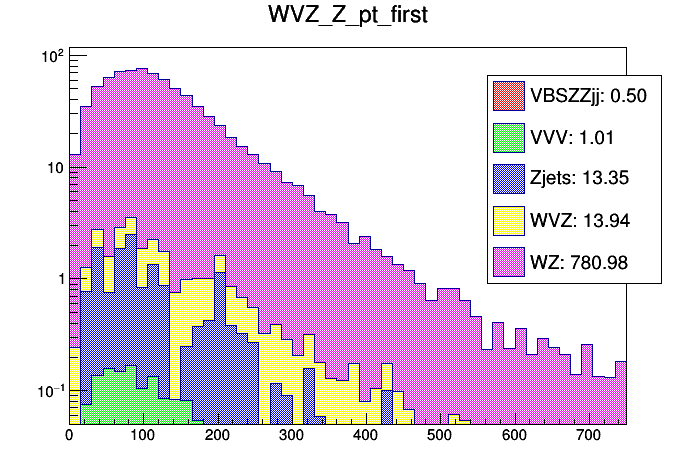

| Z pT |

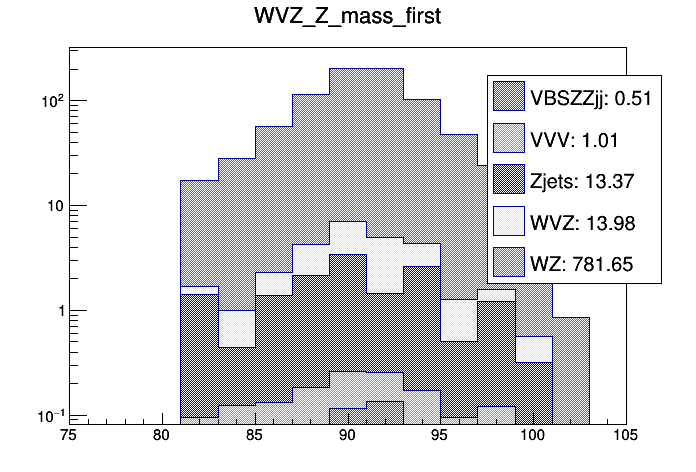

Z Mass |

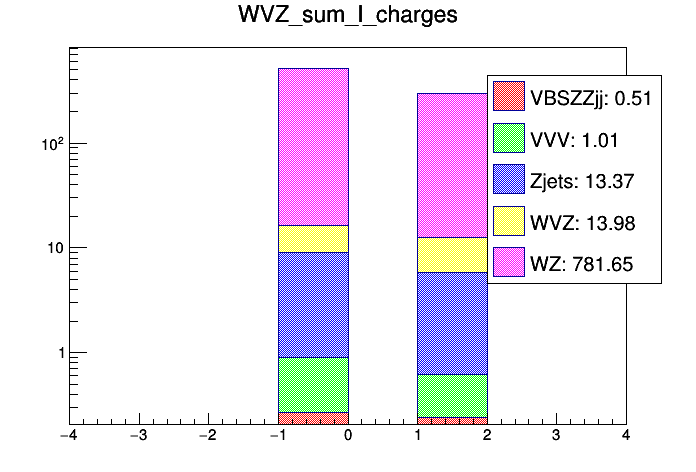

Sum of Lepton Charges |
 |
 |
 |

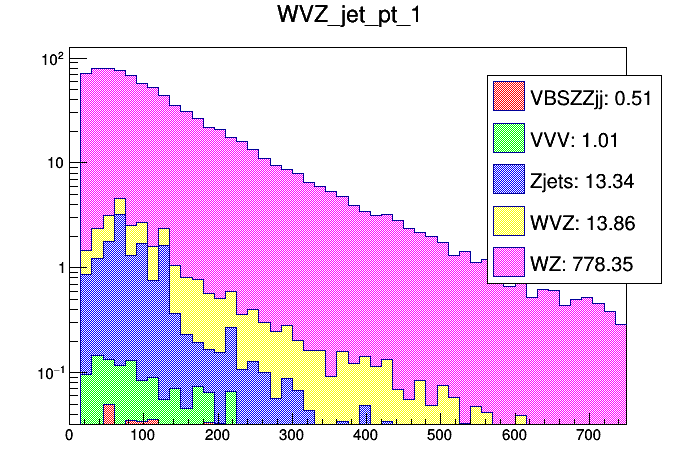

| Jet 1 pT |
Jet 2 pT |

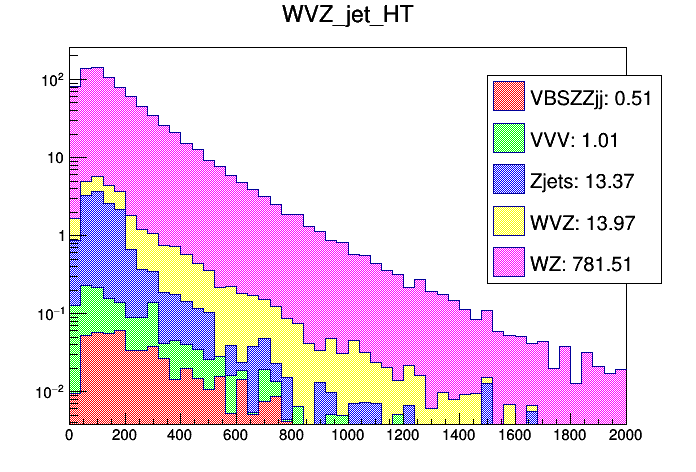

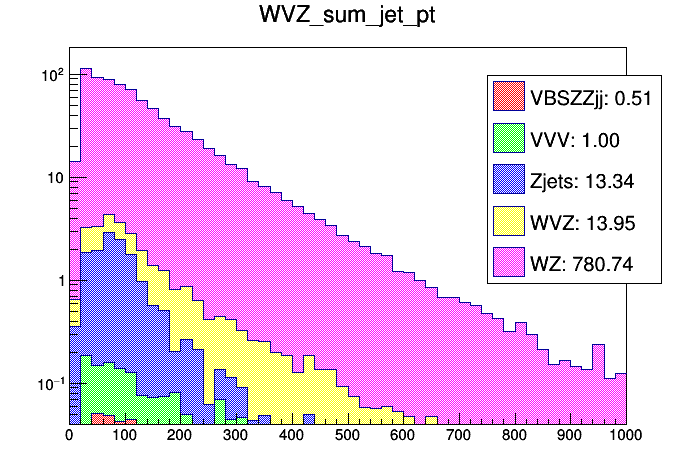

Sum of Jet pT |

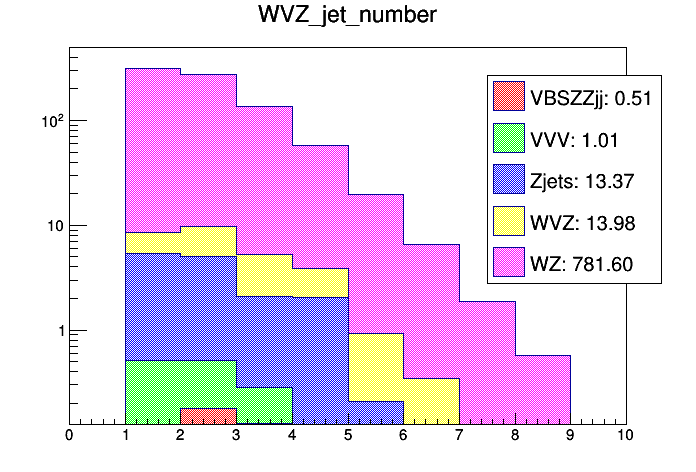

nJets |
 |
 |
 |
 |

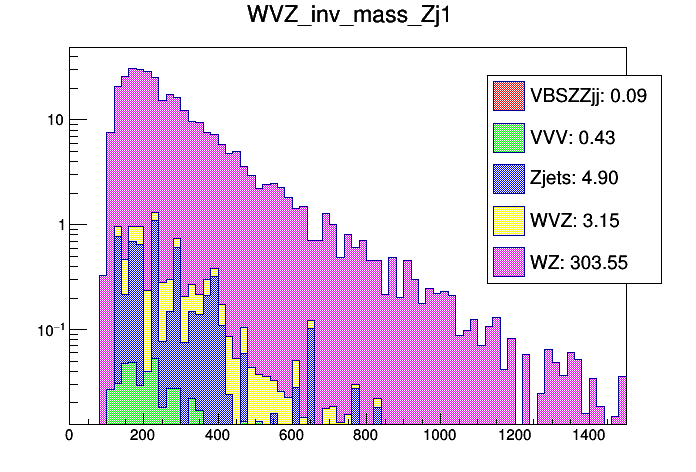

| mZJ1 (nJets = 1 only) |

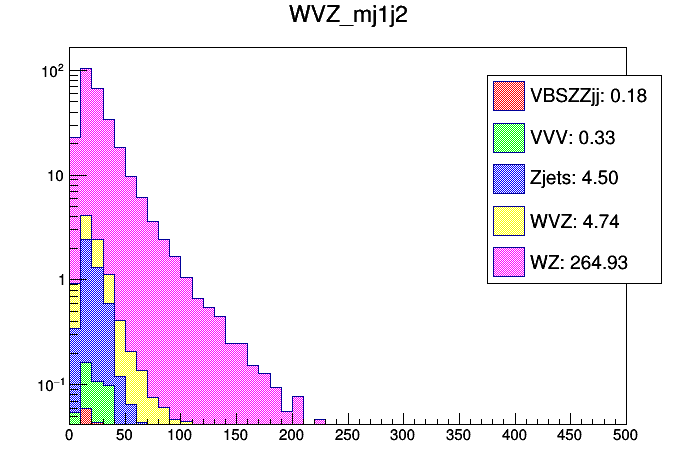

mJ1J2 (nJets = 2 only) |

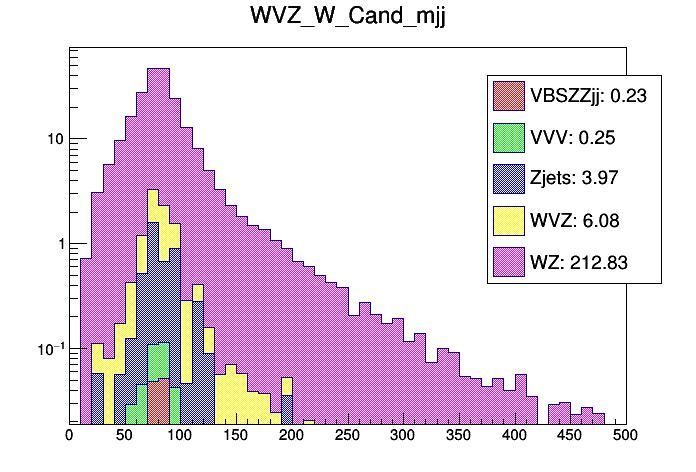

mJJ of Best W Candidate (nJets >= 3 only) |

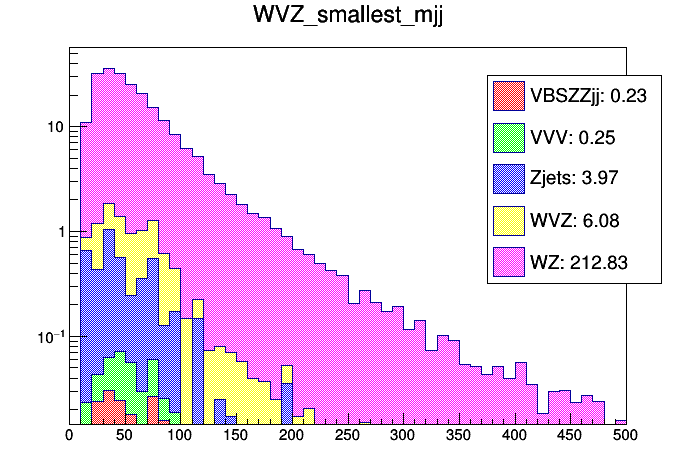

Smallest mJJ (nJets >= 3 only) |
 |
 |
 |
 |

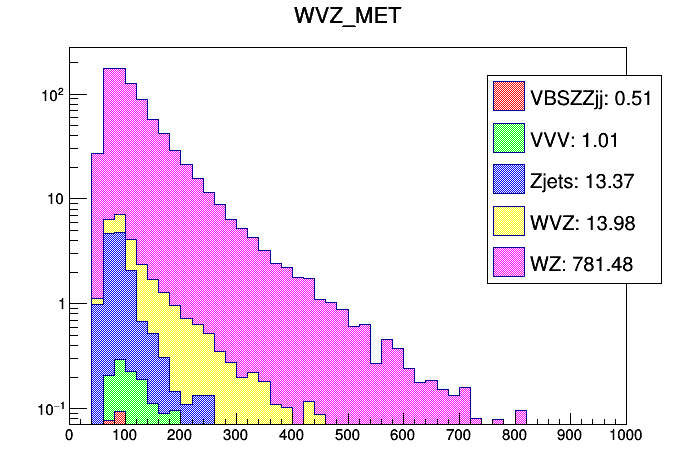

| MET |
MET Sig |

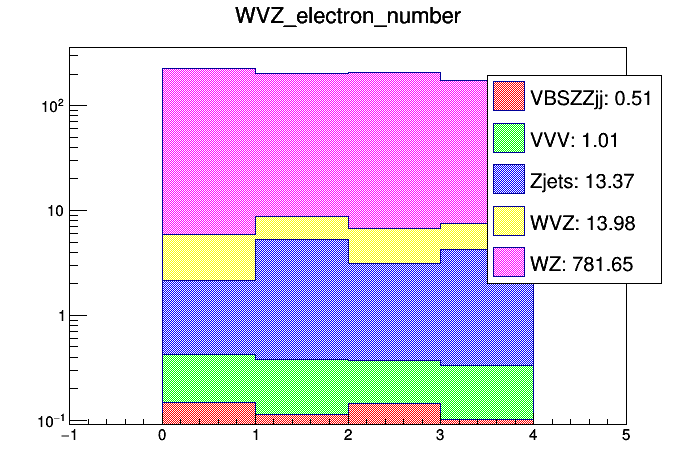

nElectrons |

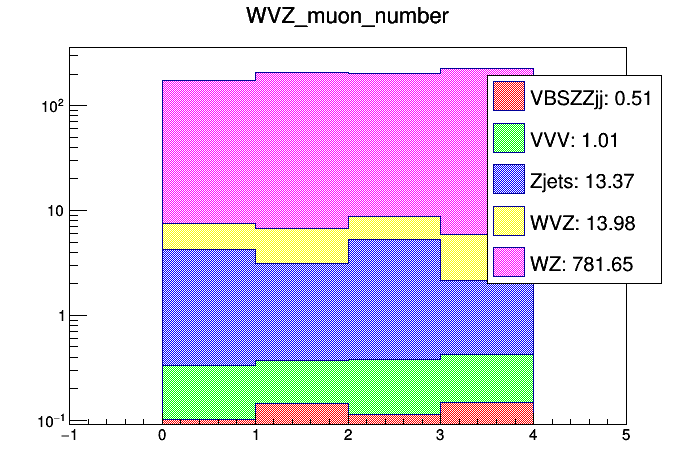

nMuons |
 |
 |
 |
 |
Lepton + Jet 4-Vectors
| Electrons |
pT |

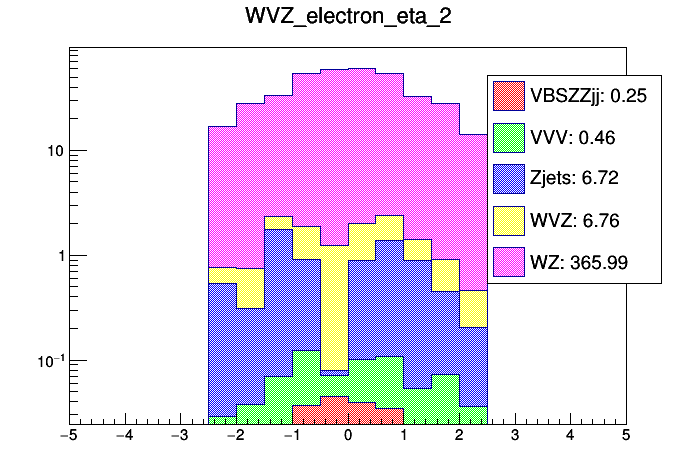

Eta |

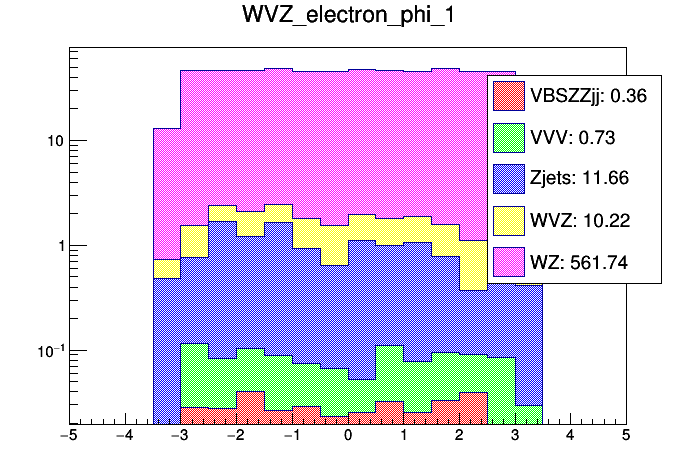

Phi |
Mass |

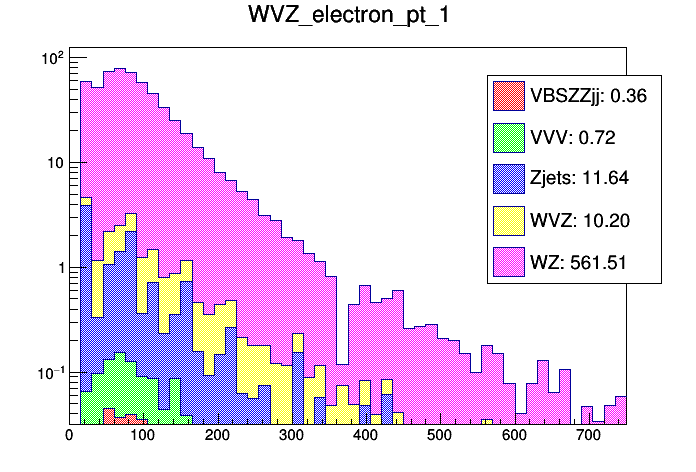

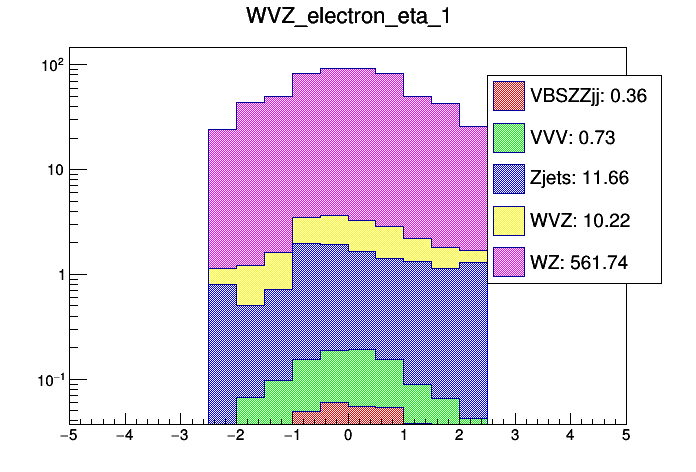

| Electron 1 |
 |
 |
 |
 |

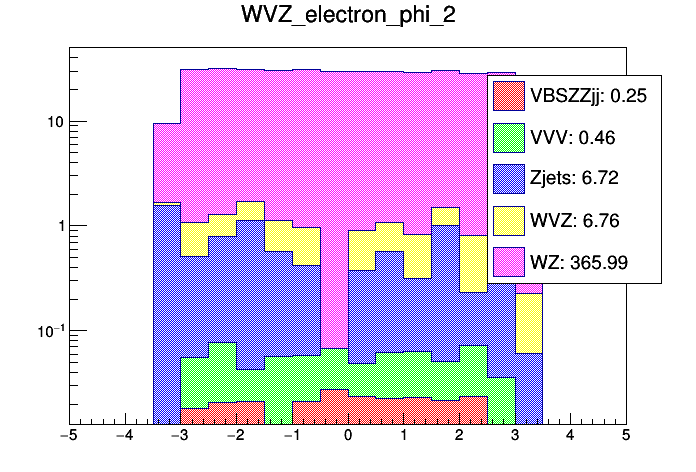

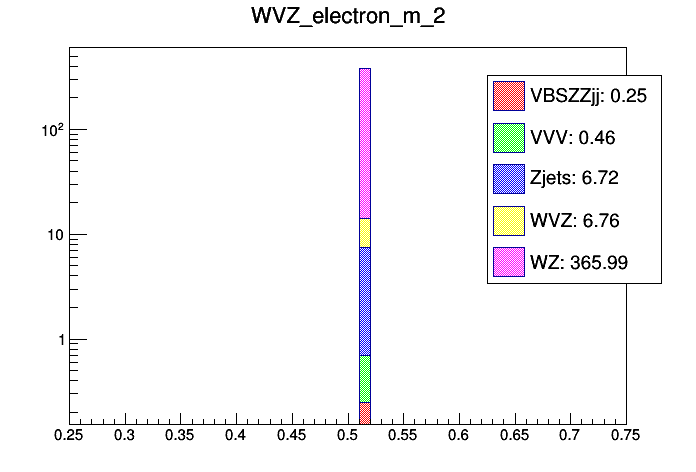

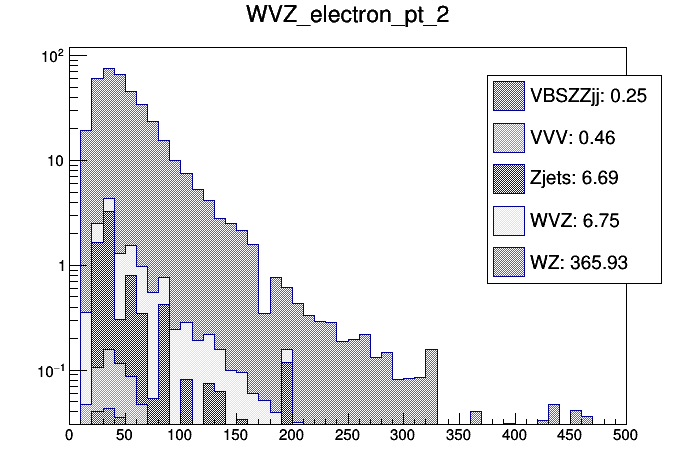

| Electron 2 |
 |
 |
 |
 |

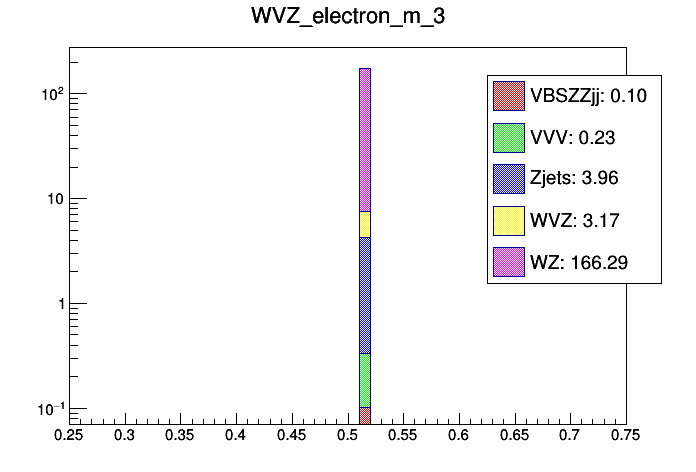

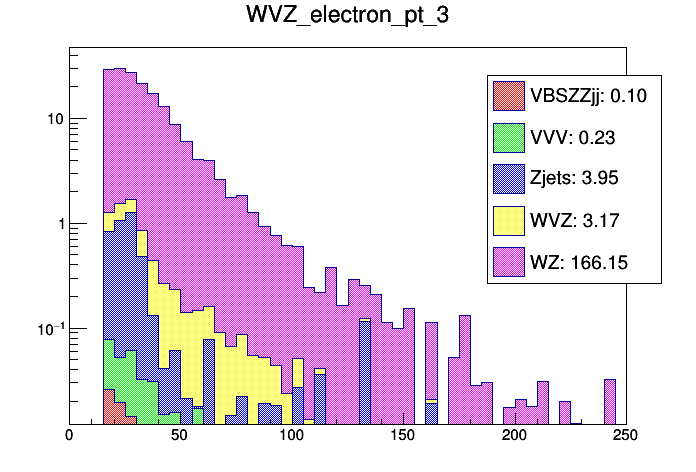

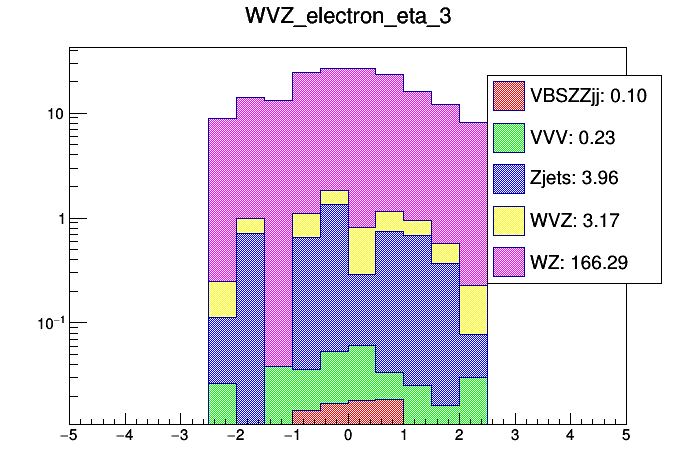

| Electron 3 |
 |
 |
 |
 |
| Muons |
pT |
Eta |

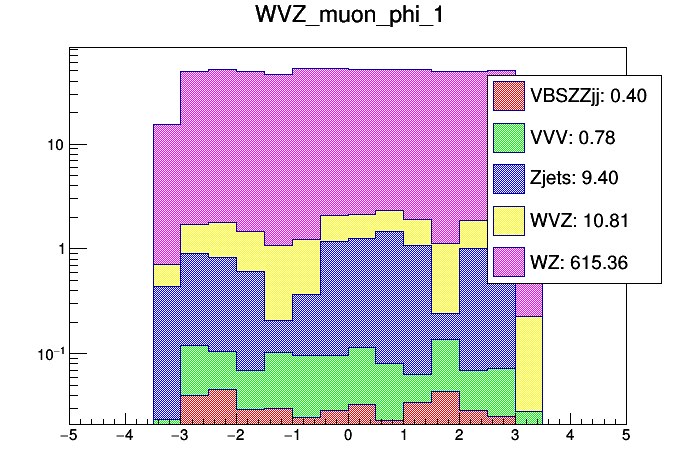

Phi |
Mass |

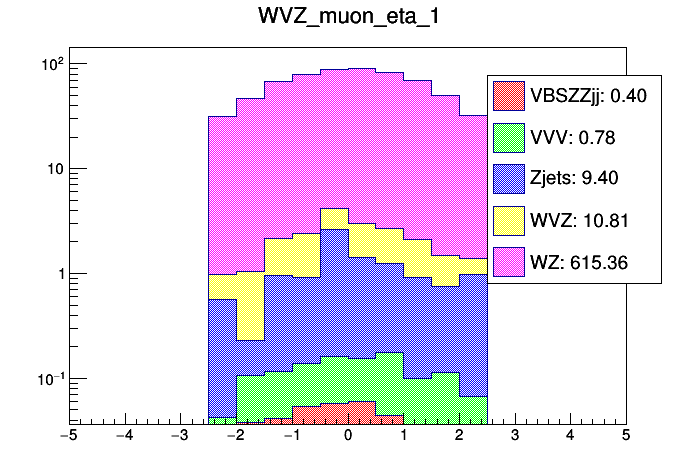

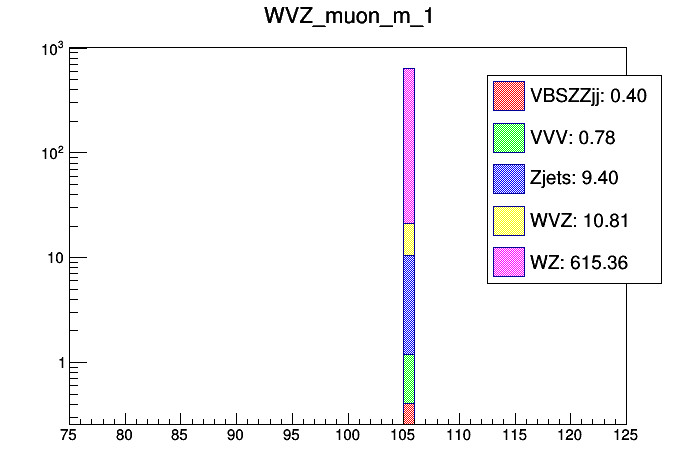

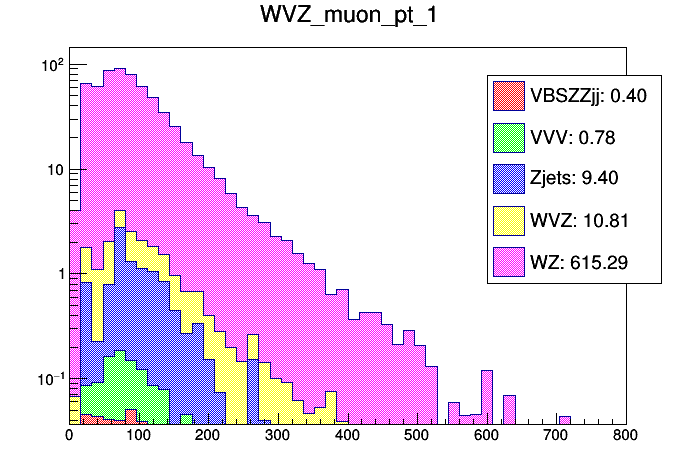

| Muon 1 |
 |
 |
 |
 |

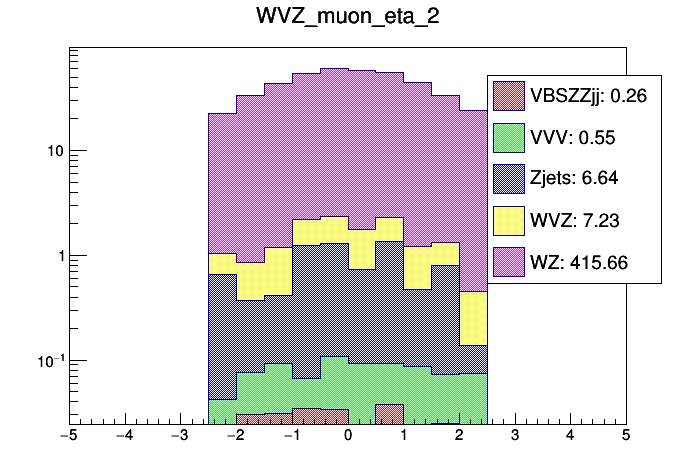

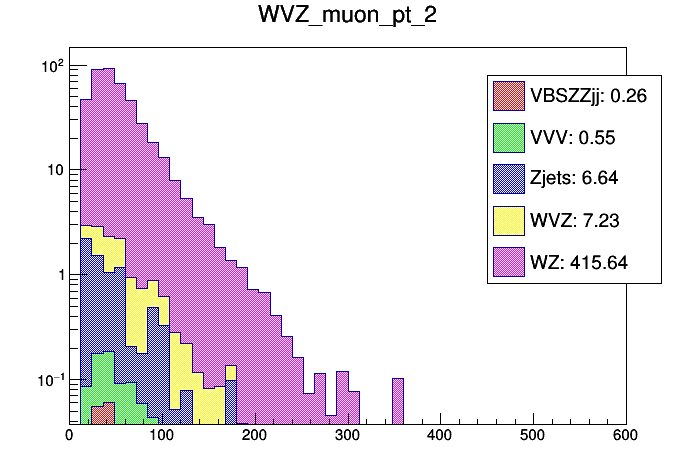

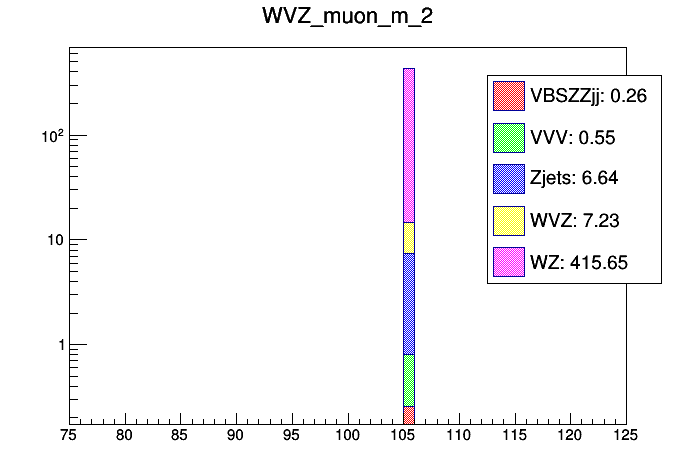

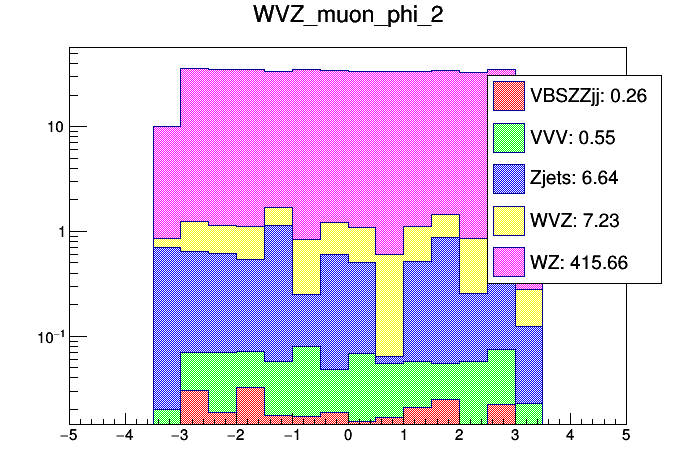

| Muon 2 |
 |
 |
 |
 |

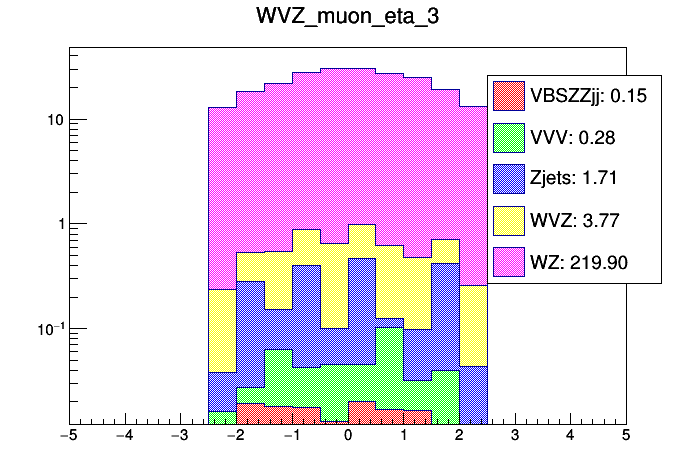

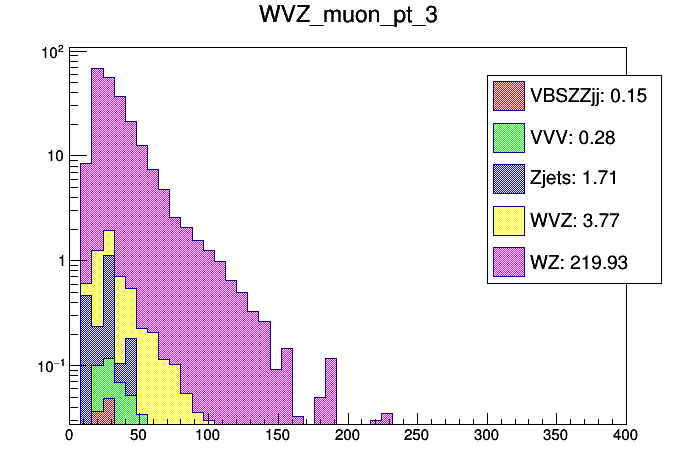

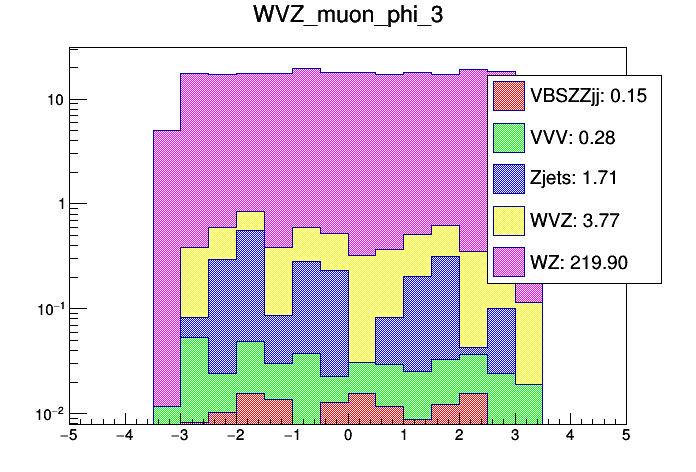

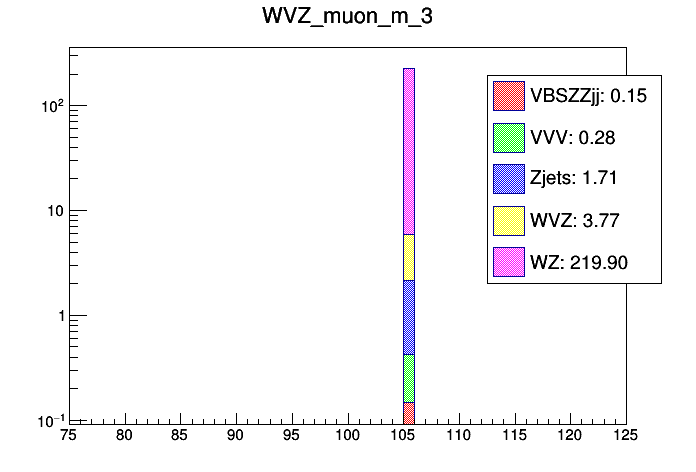

| Muon 3 |
 |
 |
 |
 |
| Jets |
pT |
Eta |

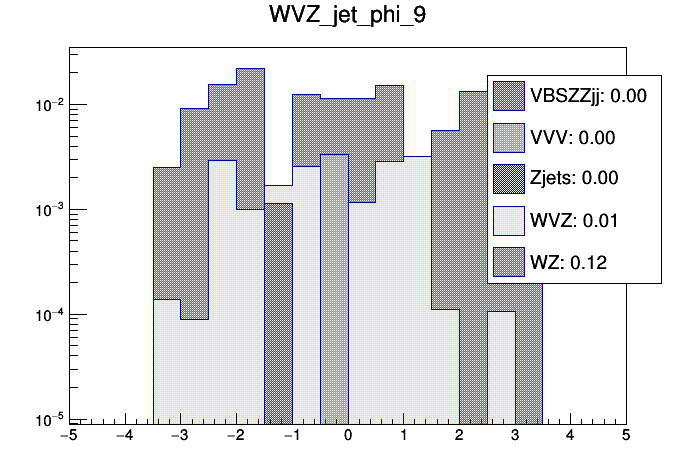

Phi |
Mass |

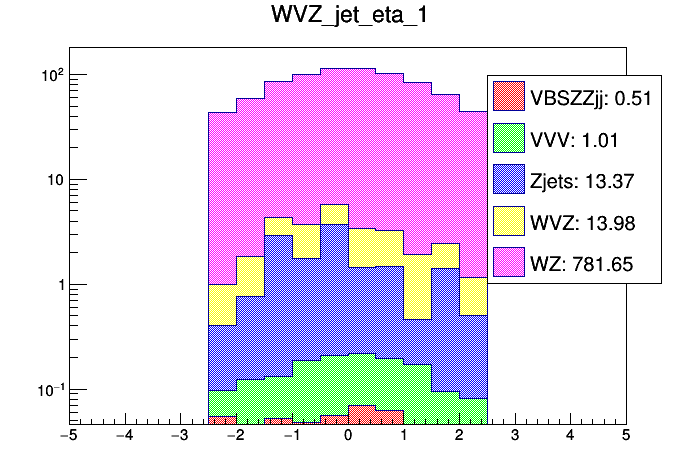

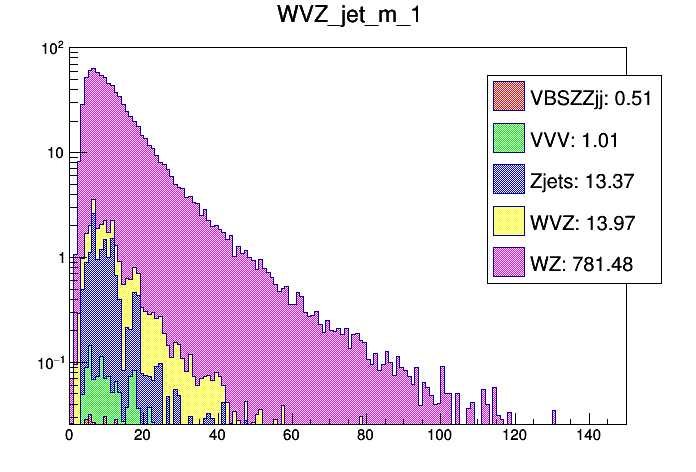

| Jet 1 |
|
 |
 |
 |

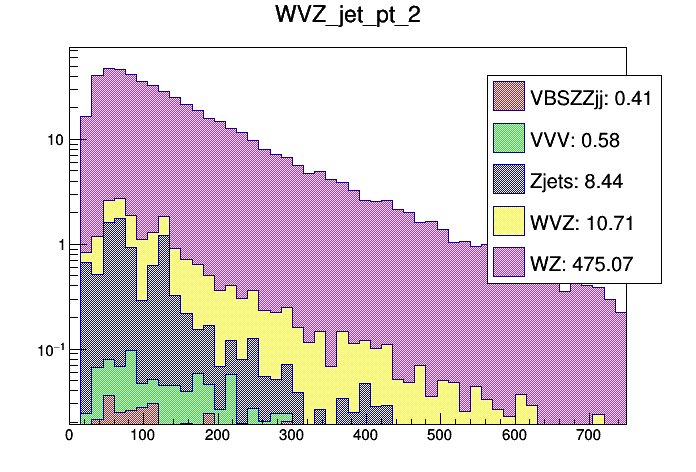

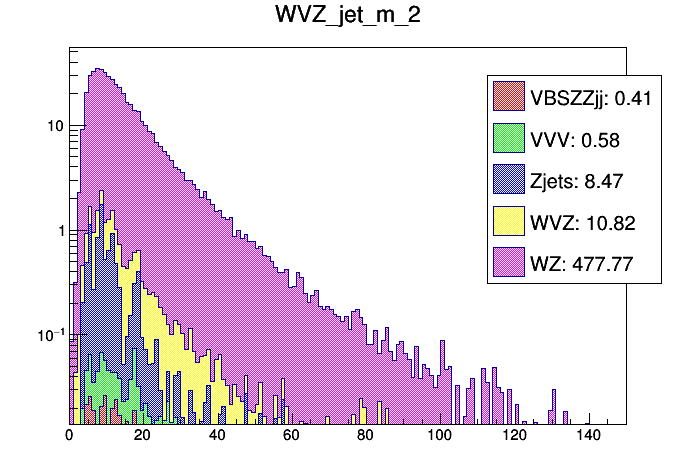

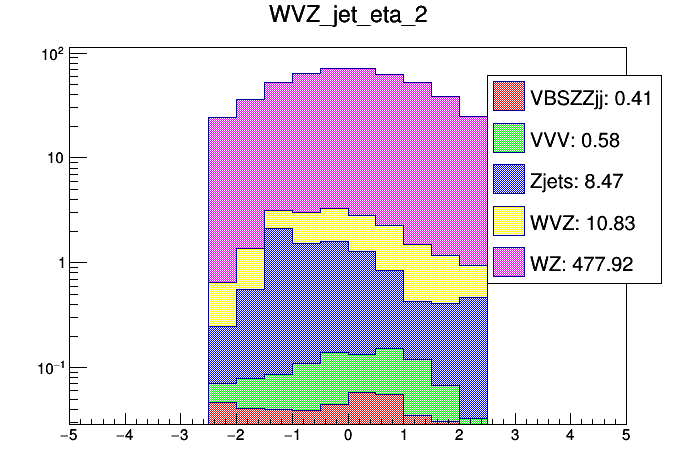

| Jet 2 |
|
 |
 |
 |

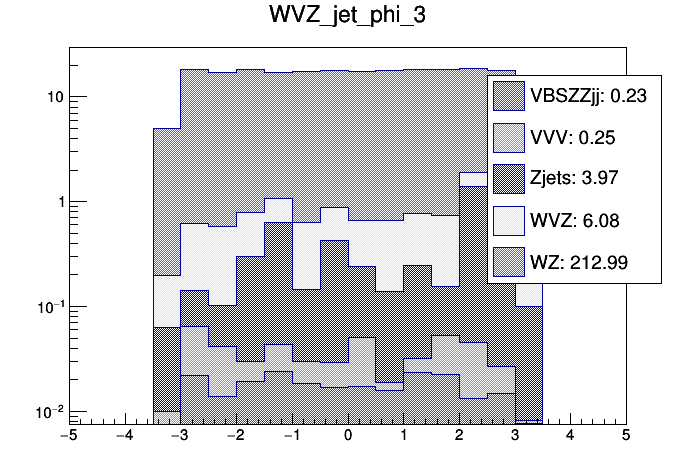

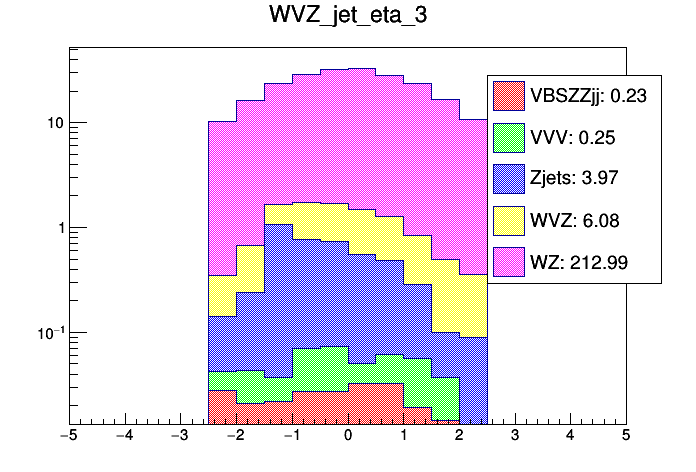

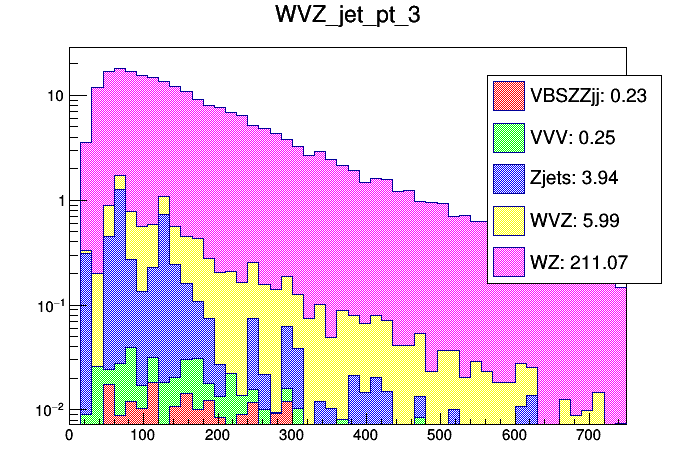

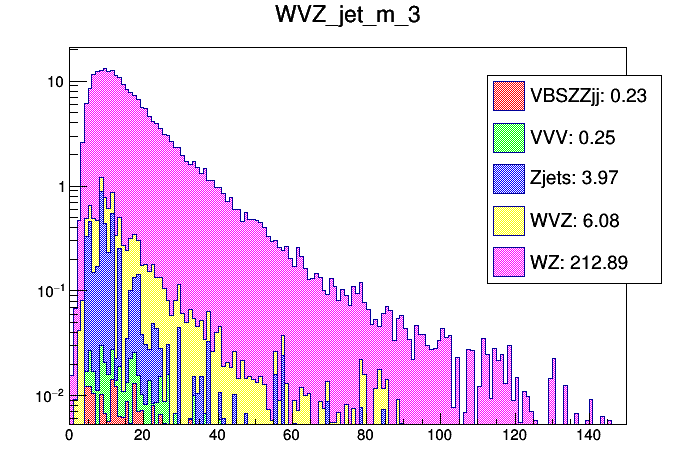

| Jet 3 |
 |
 |
 |
 |

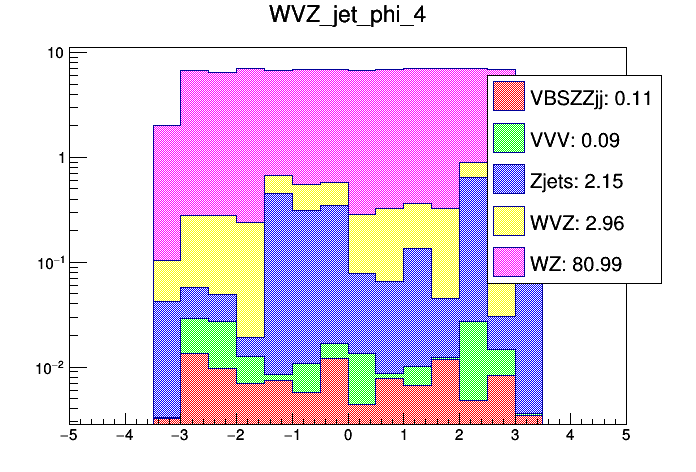

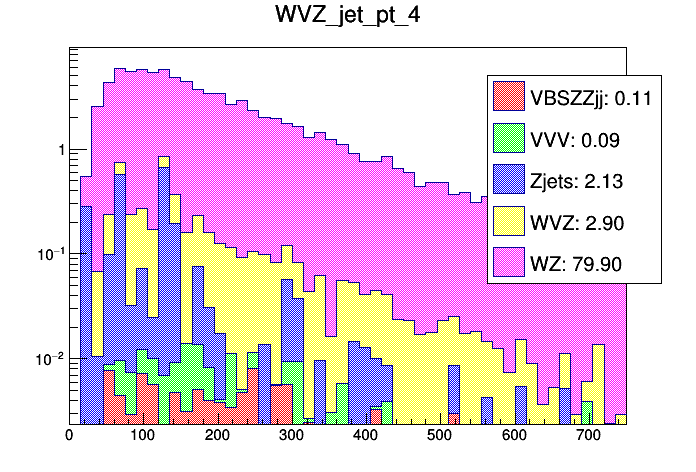

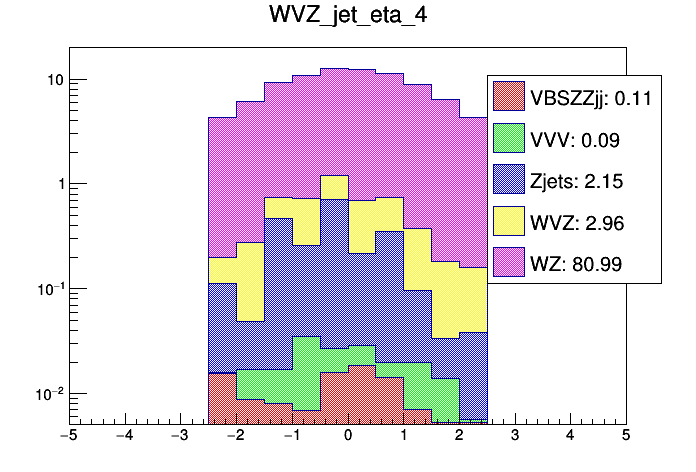

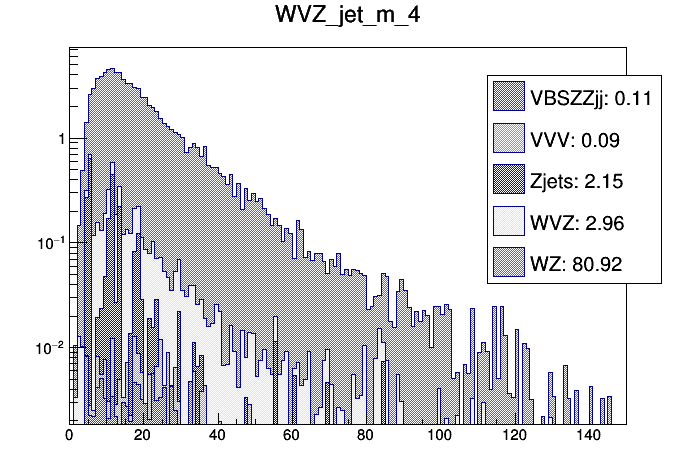

| Jet 4 |
 |
 |
 |
 |

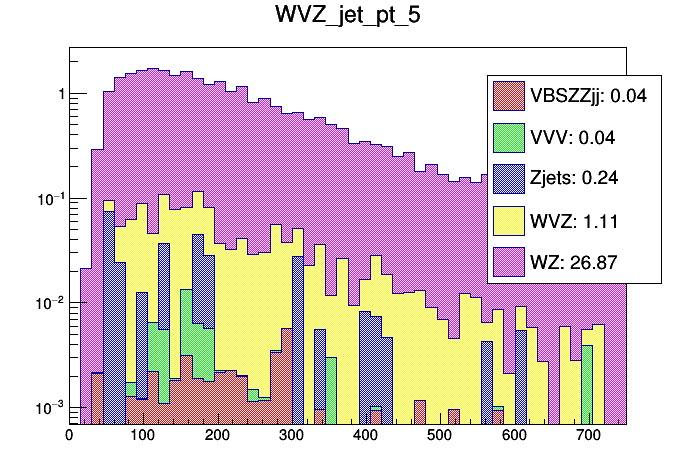

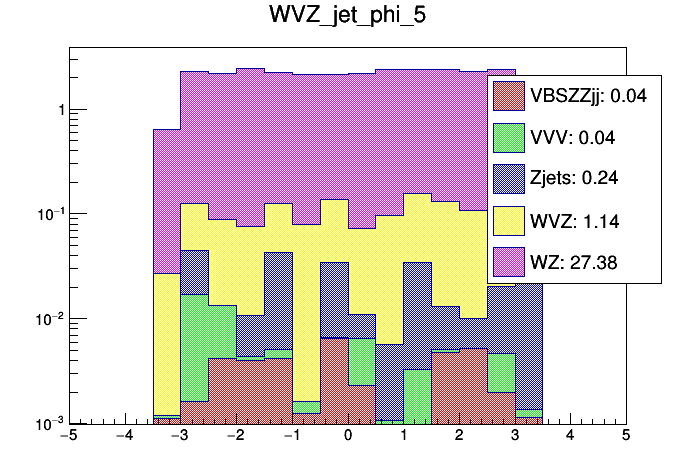

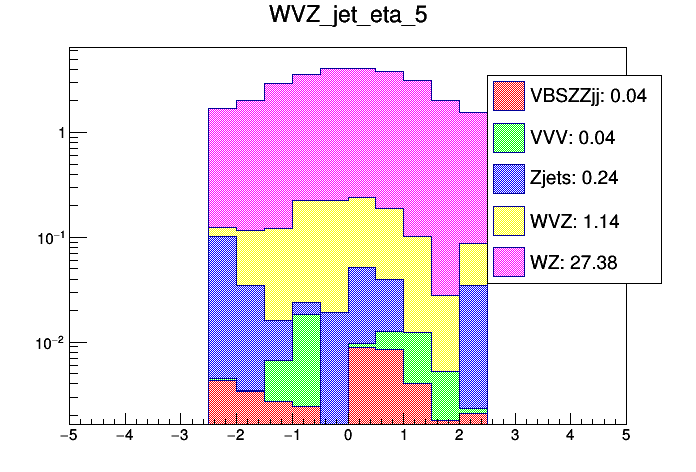

| Jet 5 |
 |
 |
 |
 |

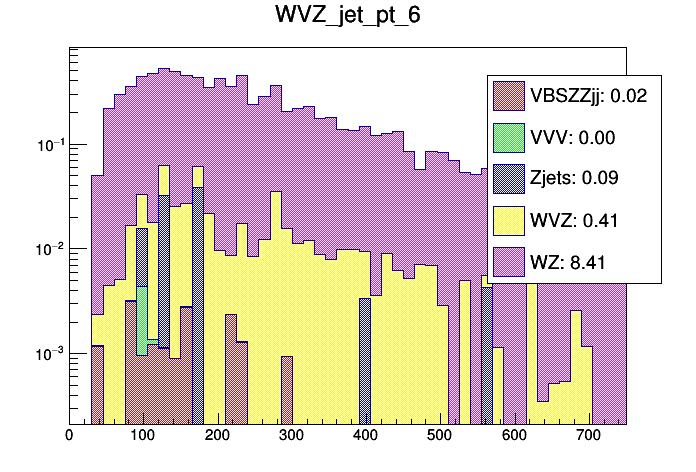

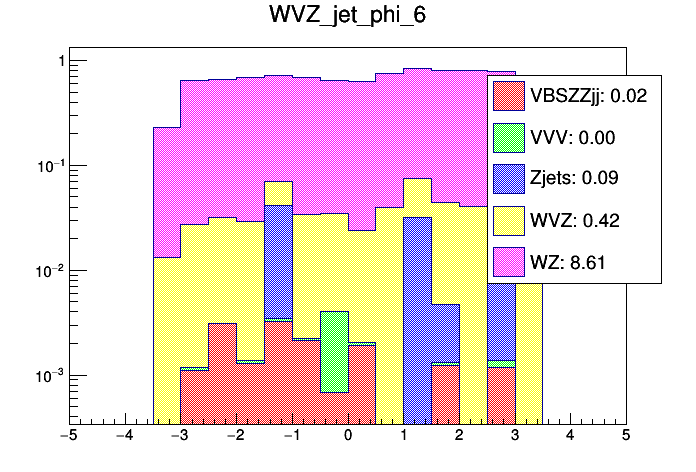

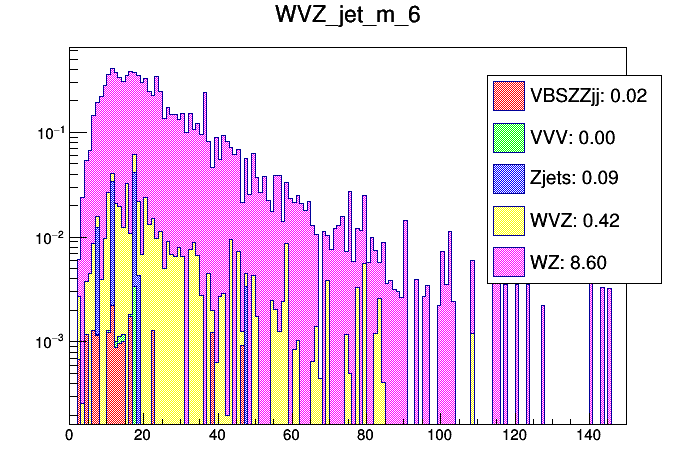

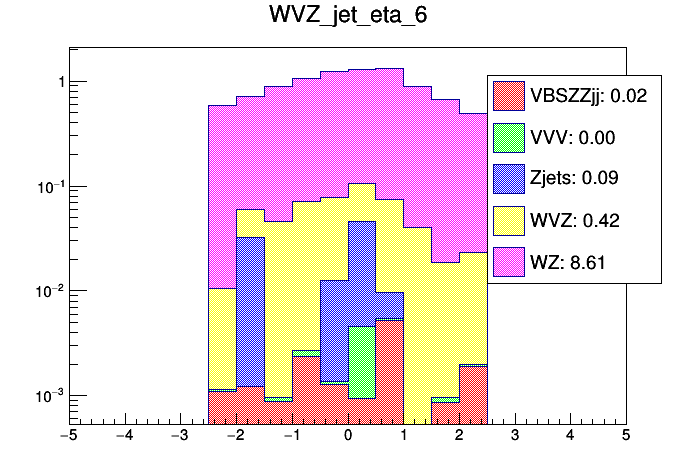

| Jet 6 |
 |
 |
 |
 |

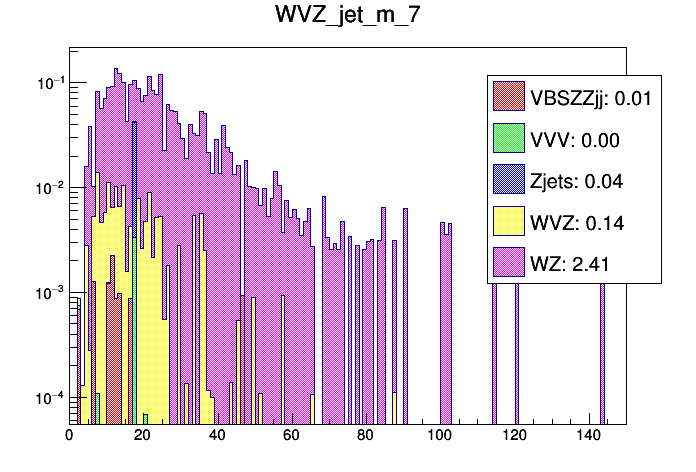

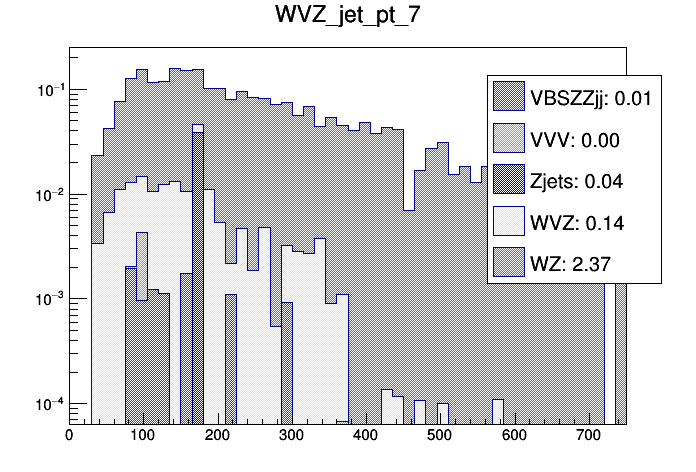

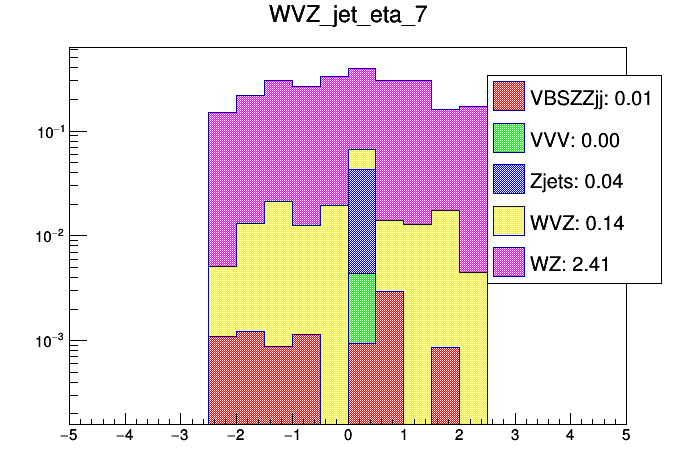

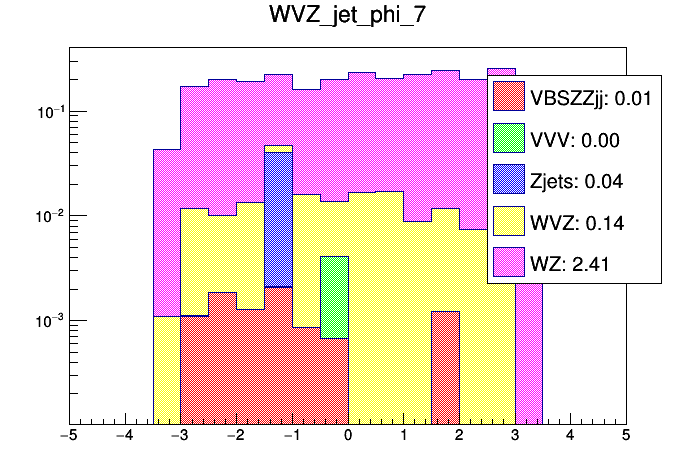

| Jet 7 |
 |
 |
 |
 |

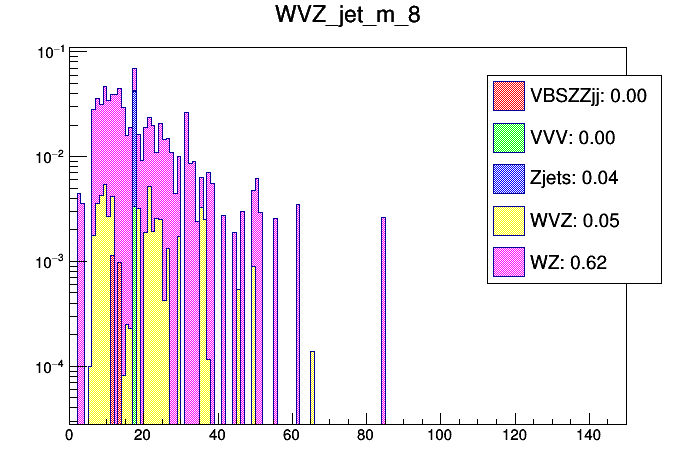

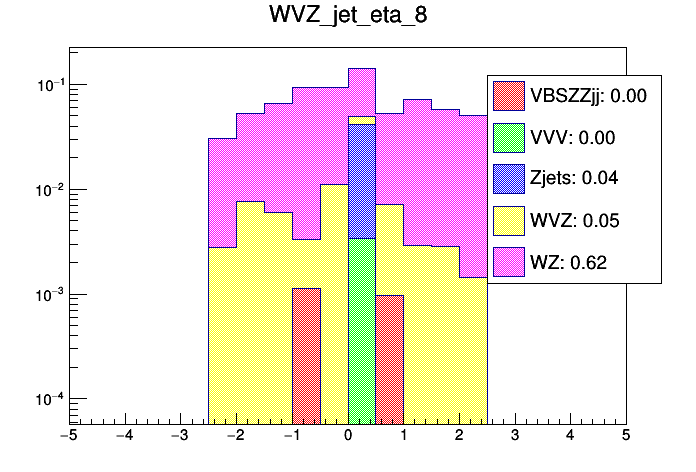

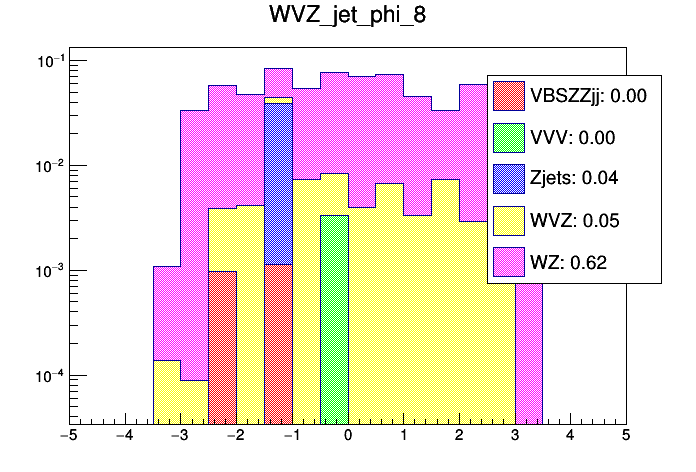

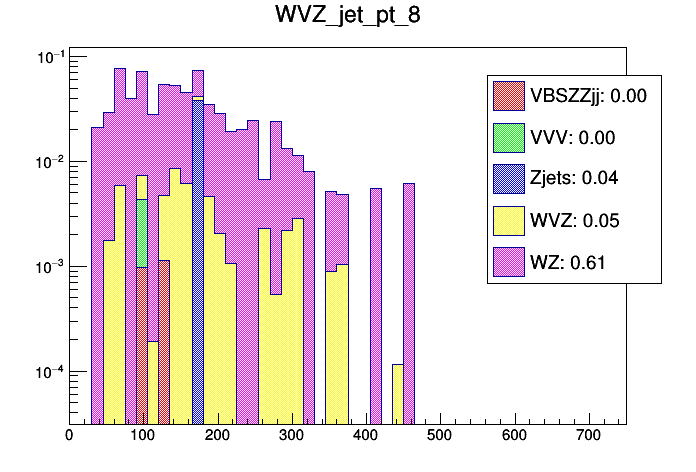

| Jet 8 |
 |
 |
 |
 |

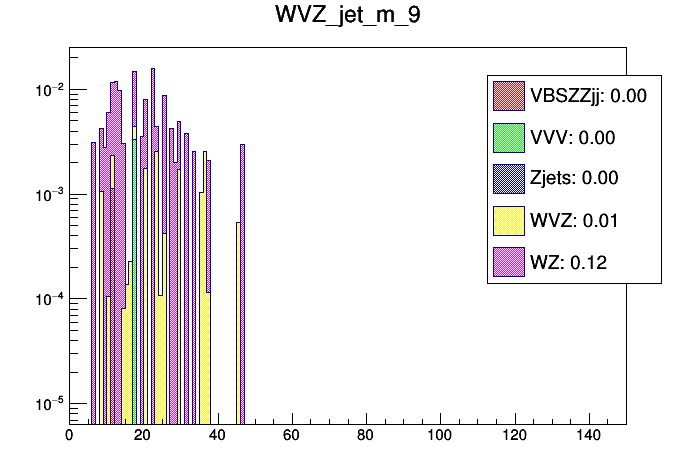

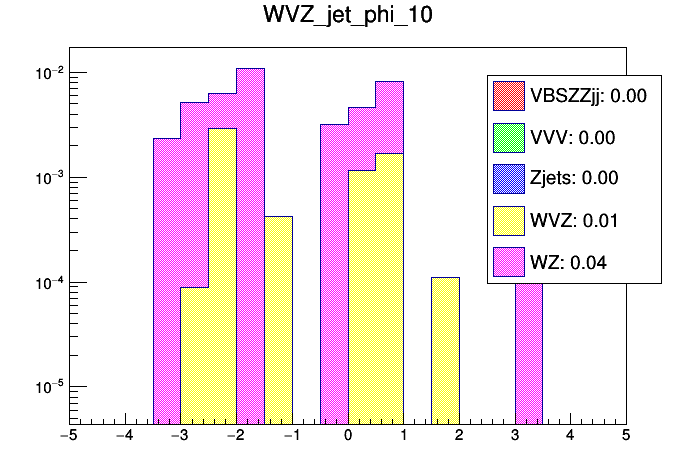

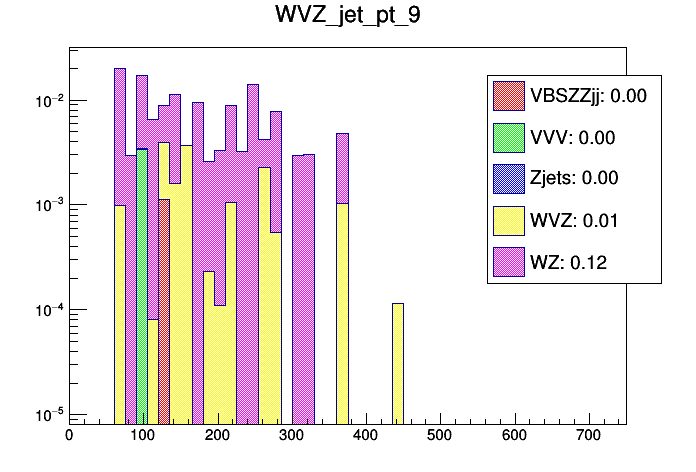

| Jet 9 |
 |
 |
 |
 |

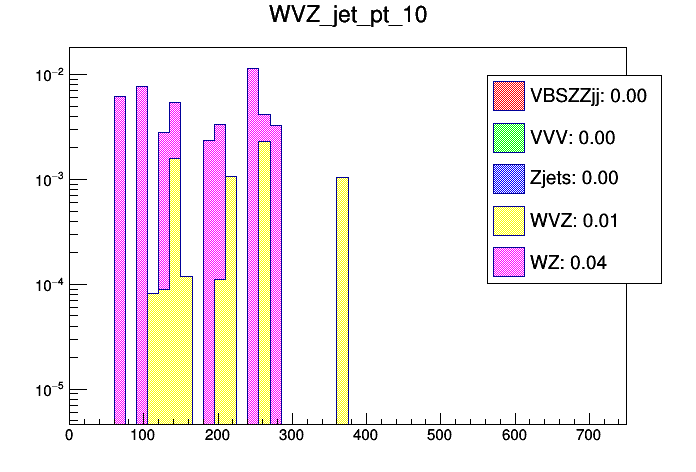

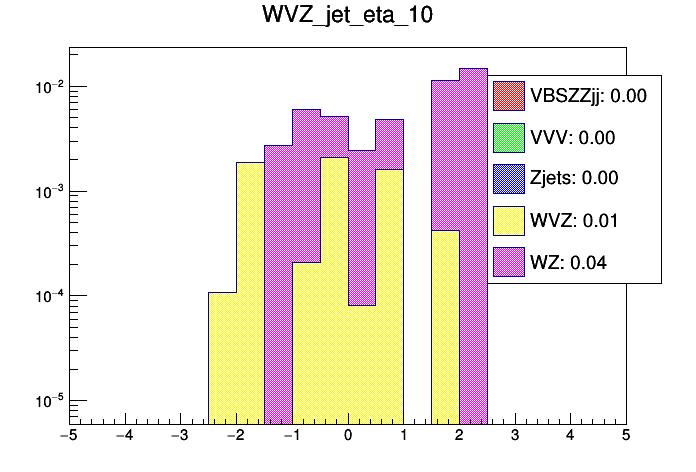

| Jet 10 |
 |
 |
 |
 |
