Run_0136 Range Plots

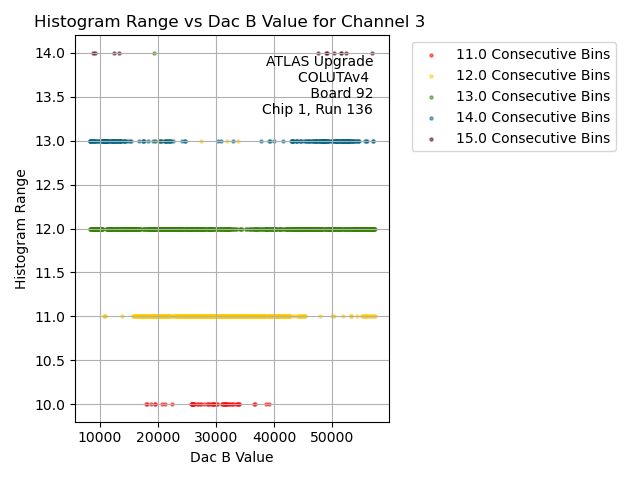

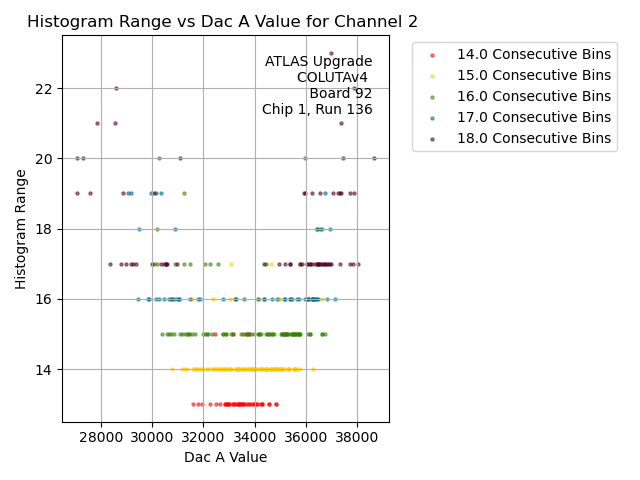

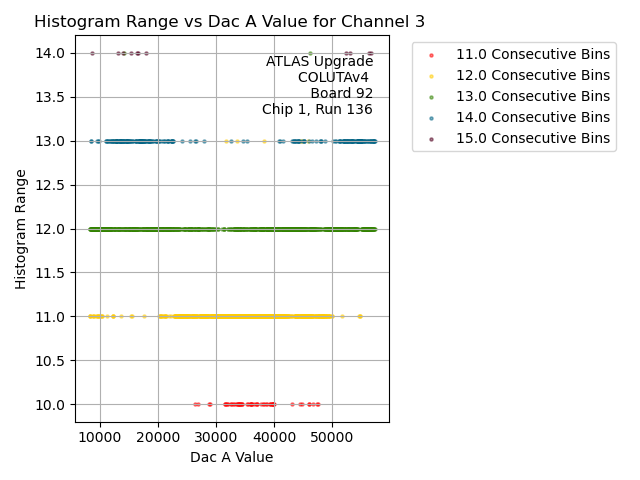

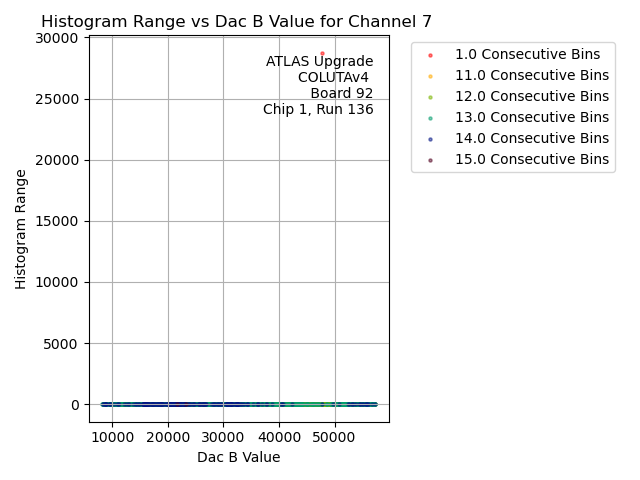

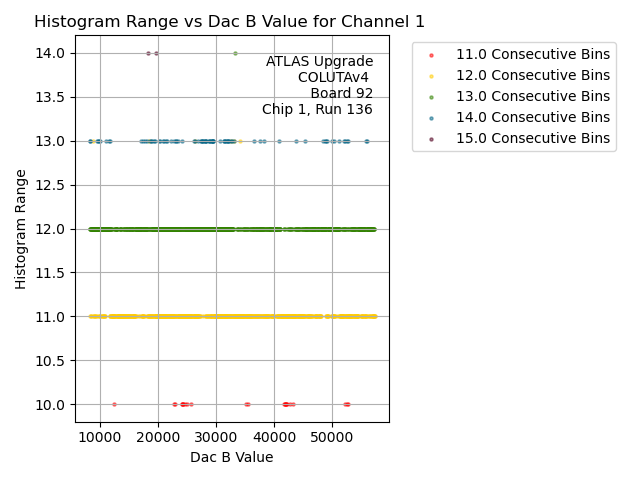

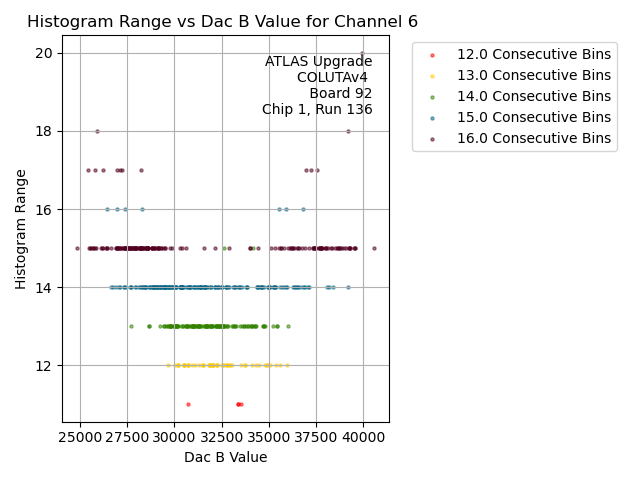

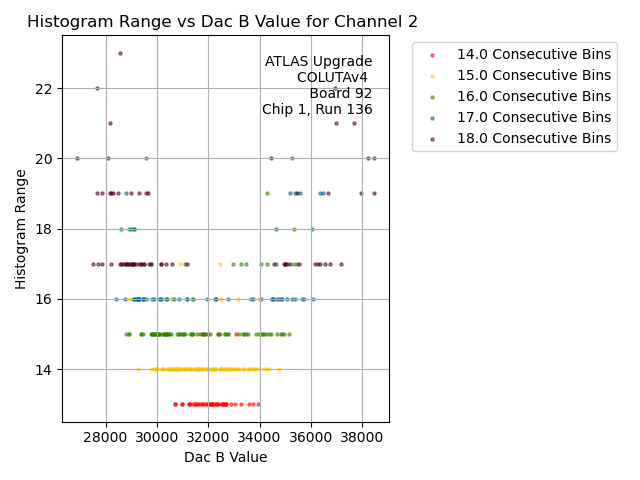

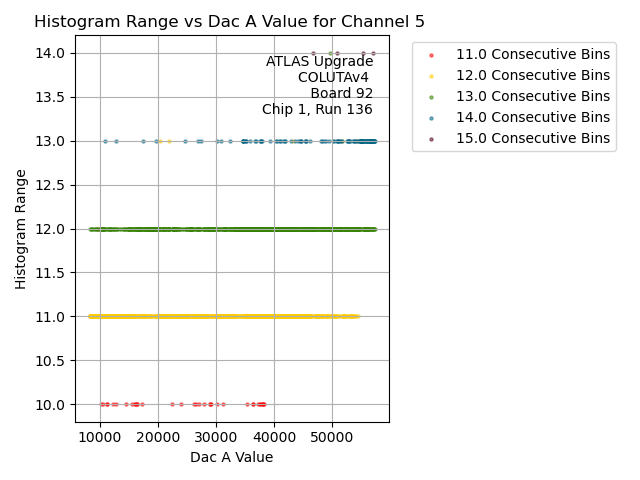

Channel No.Hist. Range vs. DAC A Code Hist. Range vs. DAC b Code
1
2
3
4
5
6
7
8

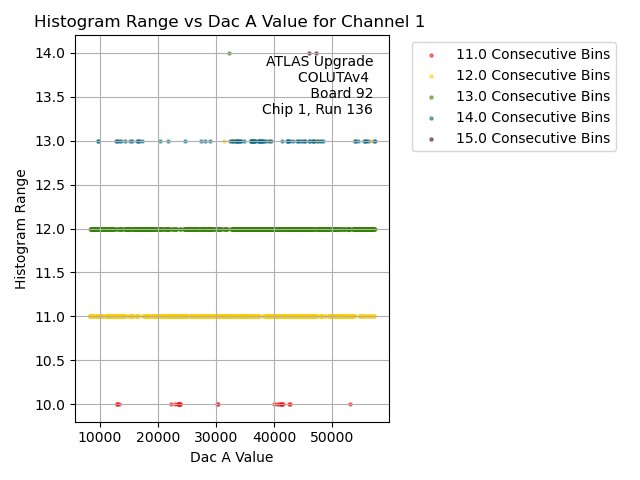

Channel No. 1
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
11.0 24 1 2.0
12.0 797 6 2.0
13.0 1065 1 2.0
14.0 82 0 1.0
15.0 2 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 2
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
14.0 48 5 2.0
15.0 106 9 2.0
16.0 87 14 3.0
17.0 58 10 3.0
18.0 67 21 3.0
19.0 56 28 4.0
20.0 68 22 3.0
21.0 50 18 4.0
22.0 47 18 7.0
23.0 41 22 4.0
24.0 44 20 8.0
25.0 75 31 11.0
26.0 70 29 10.0
27.0 98 55 13.0
28.0 124 75 12.0
29.0 153 98 14.0
30.0 225 159 14.0
31.0 537 387 12.0
32.0 16 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 3
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
11.0 61 3 2.0
12.0 772 7 2.0
13.0 886 2 2.0
14.0 240 0 1.0
15.0 11 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins

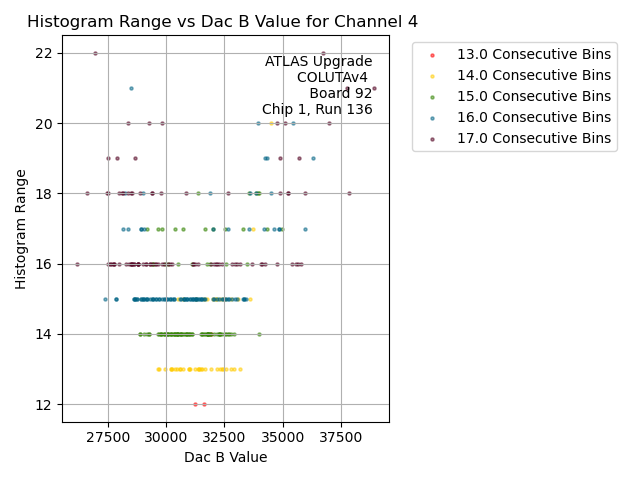

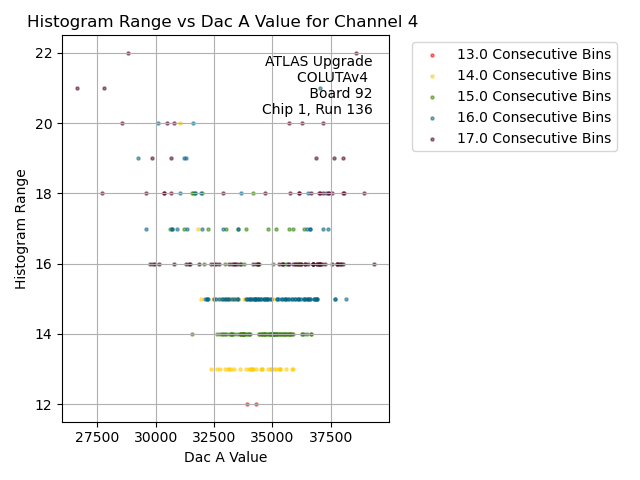

Channel No. 4
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
13.0 3 1 2.0
14.0 46 12 4.0
15.0 100 21 3.0
16.0 101 20 3.0
17.0 92 30 3.0
18.0 91 24 4.0
19.0 85 34 4.0
20.0 61 23 4.0
21.0 66 30 8.0
22.0 68 23 4.0
23.0 86 30 10.0
24.0 99 35 12.0
25.0 101 39 10.0
26.0 100 46 9.0
27.0 78 37 10.0
28.0 95 59 10.0
29.0 102 66 11.0
30.0 144 111 11.0
31.0 443 337 10.0
32.0 9 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins

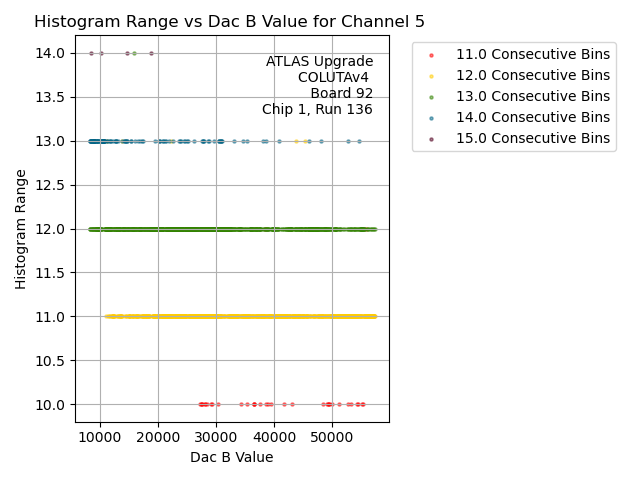

Channel No. 5
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
11.0 37 3 2.0
12.0 903 5 2.0
13.0 912 1 2.0
14.0 114 0 1.0
15.0 4 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins

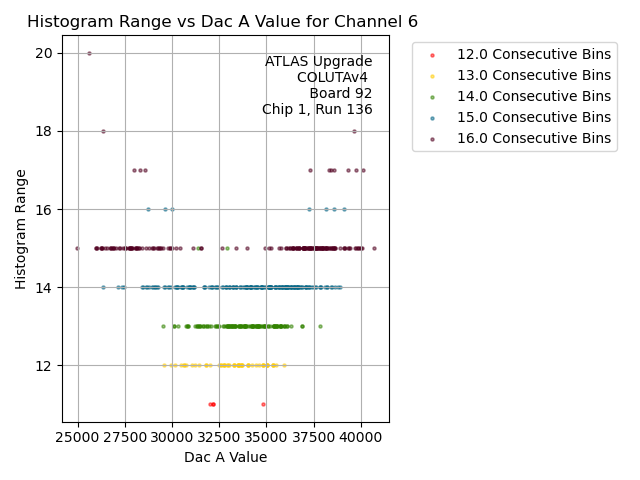

Channel No. 6
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
12.0 4 0 1.0
13.0 52 0 1.0
14.0 123 2 2.0
15.0 179 7 2.0
16.0 177 13 3.0
17.0 162 22 3.0
18.0 115 17 3.0
19.0 82 10 3.0
20.0 106 9 3.0
21.0 110 15 4.0
22.0 102 20 5.0
23.0 65 21 3.0
24.0 52 14 3.0
25.0 36 17 4.0
26.0 42 12 3.0
27.0 54 23 7.0
28.0 69 43 7.0
29.0 82 41 7.0
30.0 102 57 7.0
31.0 243 133 7.0
32.0 13 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins

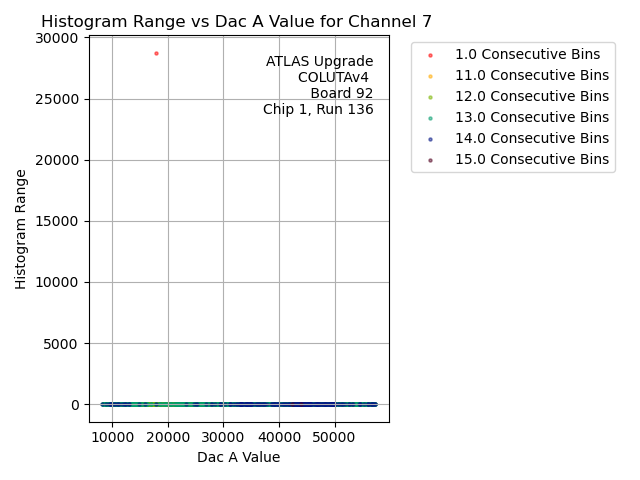

Channel No. 7
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
1.0 1 0 15.0
11.0 24 2 2.0
12.0 499 10 2.0
13.0 1204 3 2.0
14.0 240 0 1.0
15.0 2 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins

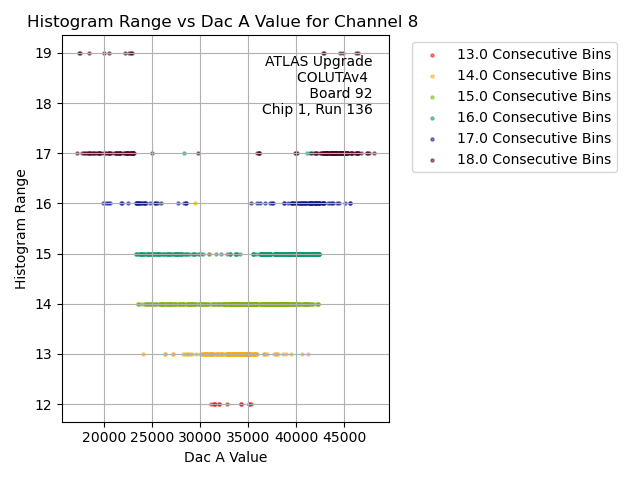

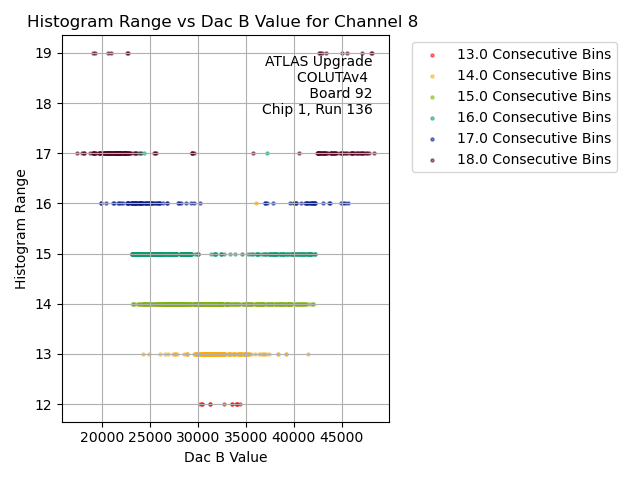

Channel No. 8
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
13.0 13 1 2.0
14.0 152 3 2.0
15.0 352 2 2.0
16.0 288 5 2.0
17.0 94 0 1.0
18.0 179 14 2.0
19.0 238 14 2.0
20.0 97 1 2.0
21.0 45 4 2.0
22.0 98 10 2.0
23.0 155 18 2.0
24.0 110 12 3.0
25.0 33 2 2.0
26.0 37 10 2.0
27.0 45 3 2.0
28.0 21 4 2.0
29.0 7 0 1.0
30.0 3 0 1.0
31.0 2 1 2.0
32.0 1 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
