Run_0210

Run_0210 Range Plots

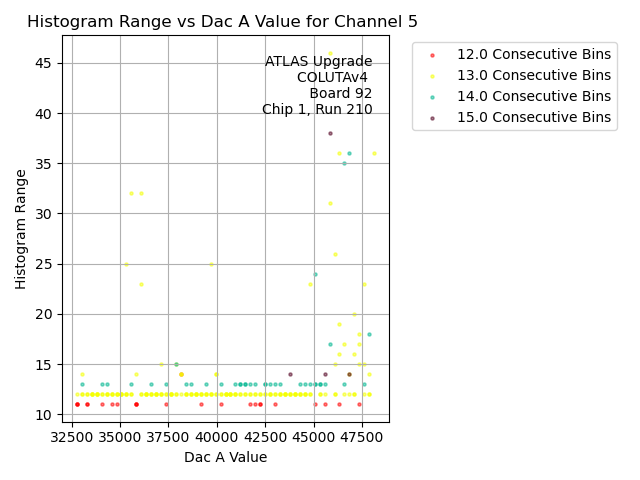

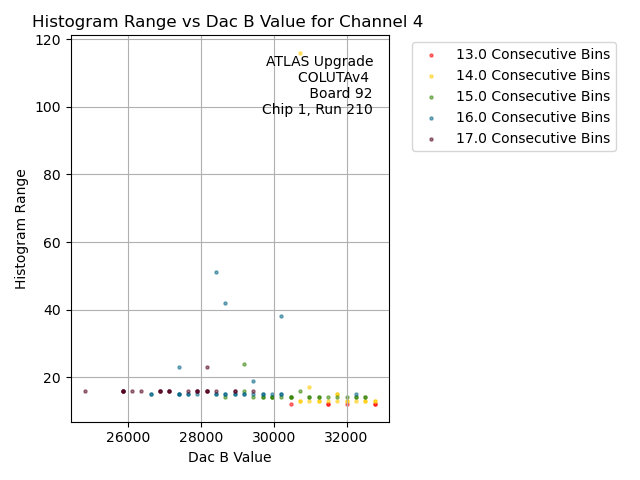

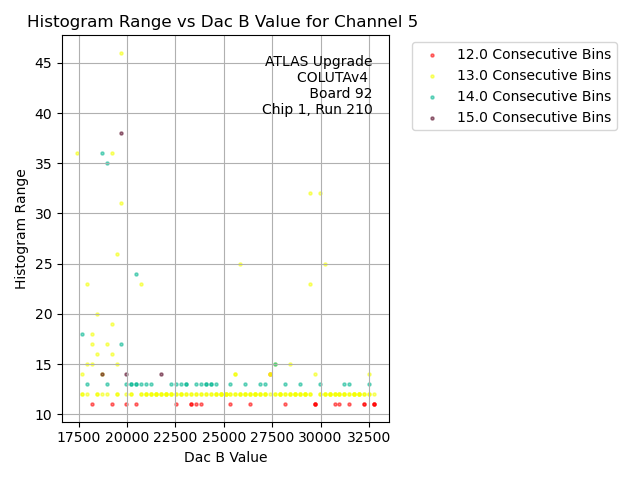

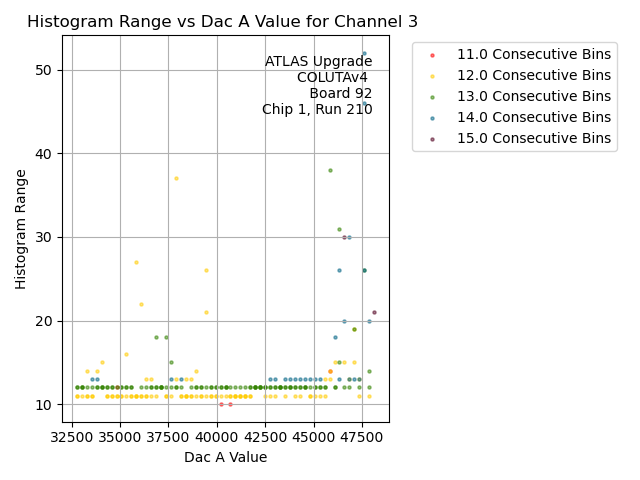

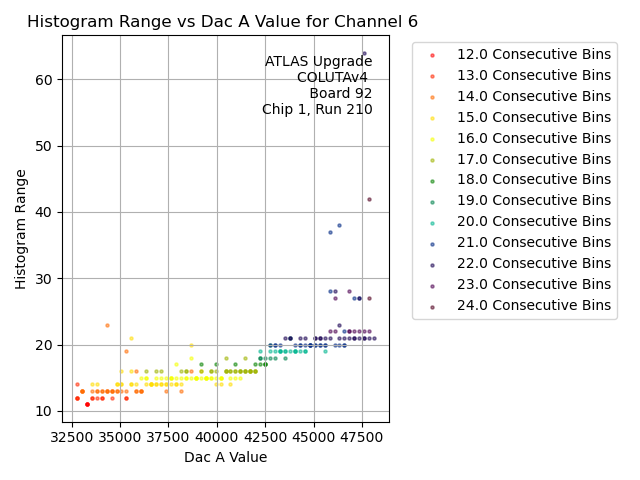

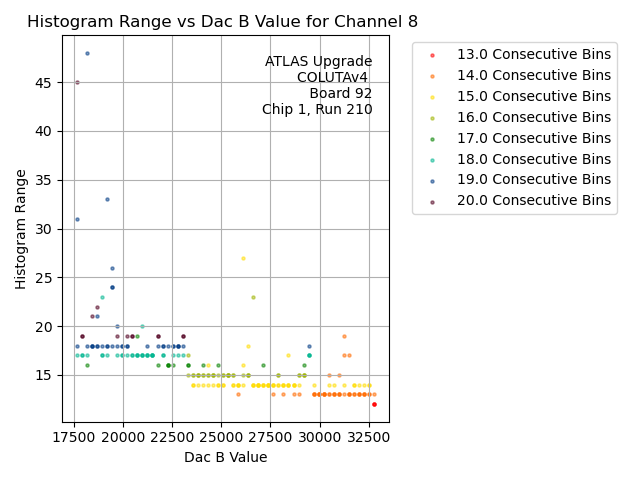

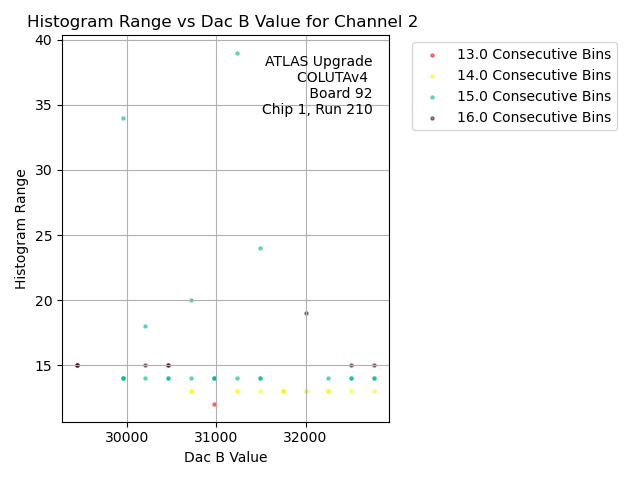

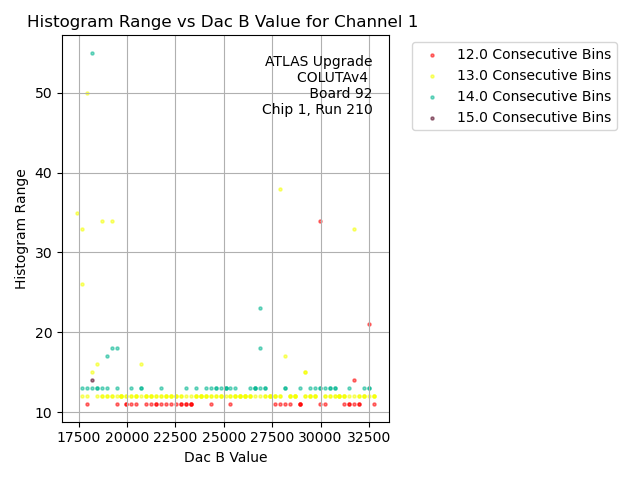

Channel No.Hist. Range vs. DAC A Code Hist. Range vs. DAC b Code
1

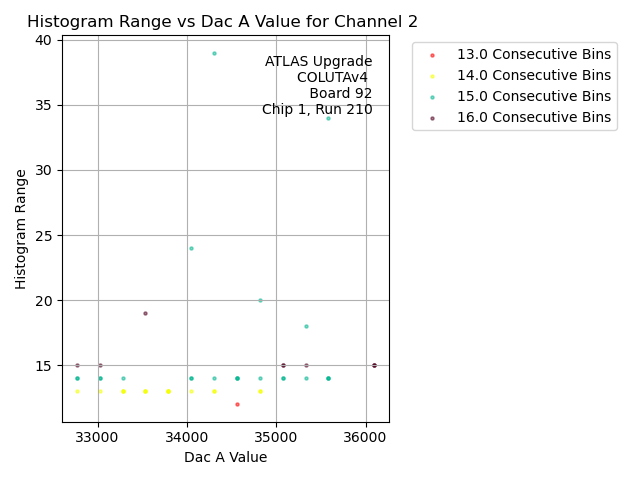

2

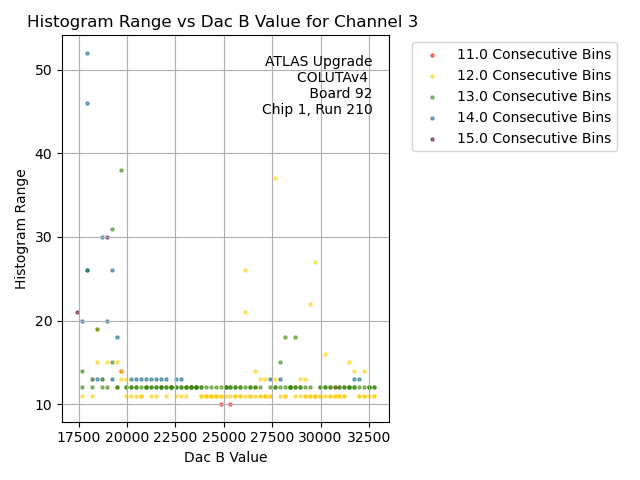

3
4
5

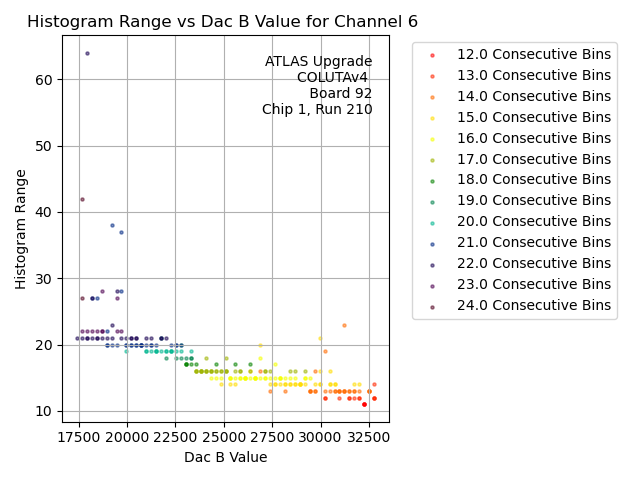

6

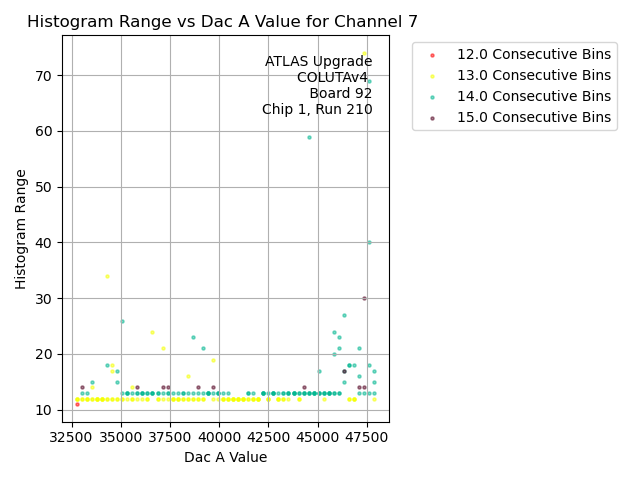

7

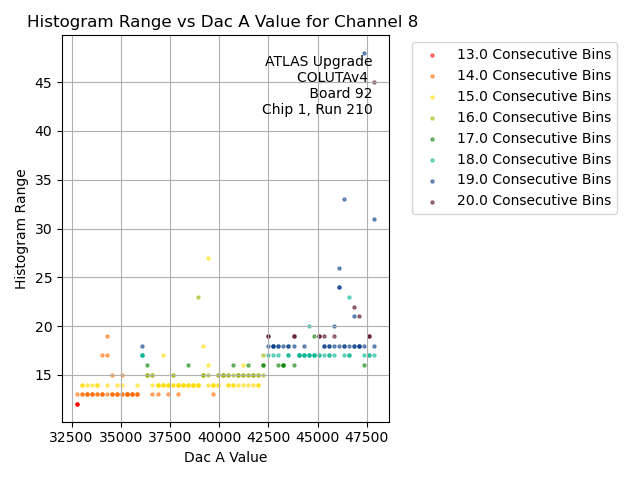

8


Channel No. 1
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
12.0 101 30 4.0
13.0 387 132 4.0
14.0 142 44 4.0
15.0 8 4 2.0
17.0 1 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 2
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
13.0 1 0 1.0
14.0 17 0 1.0
15.0 23 5 3.0
16.0 9 1 2.0
17.0 20 4 2.0
18.0 22 2 8.0
19.0 16 1 7.0
20.0 17 0 1.0
21.0 16 2 2.0
22.0 8 1 2.0
23.0 5 1 2.0
24.0 9 3 2.0
25.0 16 4 2.0
26.0 26 5 4.0
27.0 22 7 4.0
28.0 15 2 2.0
29.0 31 11 7.0
30.0 43 20 7.0
31.0 316 120 6.0
32.0 7 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 3
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
11.0 4 2 2.0
12.0 150 51 5.0
13.0 311 108 5.0
14.0 148 63 4.0
15.0 24 9 3.0
16.0 2 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 4
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
13.0 6 0 1.0
14.0 18 3 3.0
15.0 25 3 3.0
16.0 28 5 3.0
17.0 25 1 2.0
18.0 15 1 2.0
19.0 18 1 2.0
20.0 15 2 2.0
21.0 8 1 2.0
22.0 17 3 3.0
23.0 31 3 3.0
24.0 33 13 4.0
25.0 27 8 3.0
26.0 30 10 5.0
27.0 19 3 3.0
28.0 19 6 2.0
29.0 15 5 5.0
30.0 22 11 6.0
31.0 253 90 6.0
32.0 14 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 5
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
12.0 72 17 3.0
13.0 397 139 4.0
14.0 146 60 4.0
15.0 23 7 3.0
16.0 1 1 2.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 6
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
12.0 4 0 1.0
13.0 12 1 2.0
14.0 30 4 3.0
15.0 33 5 2.0
16.0 36 2 2.0
17.0 36 2 2.0
18.0 11 2 2.0
19.0 19 4 2.0
20.0 47 11 4.0
21.0 53 12 3.0
22.0 53 12 2.0
23.0 21 4 3.0
24.0 15 7 3.0
25.0 23 8 2.0
26.0 47 12 3.0
27.0 48 13 2.0
28.0 42 11 2.0
29.0 21 8 3.0
30.0 18 7 5.0
31.0 45 13 4.0
32.0 25 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 7
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
12.0 41 22 4.0
13.0 334 134 5.0
14.0 236 81 4.0
15.0 28 7 3.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 8
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
13.0 3 0 1.0
14.0 45 6 2.0
15.0 63 8 3.0
16.0 39 4 4.0
17.0 30 10 3.0
18.0 105 29 3.0
19.0 68 20 4.0
20.0 21 5 3.0
21.0 51 15 3.0
22.0 72 18 3.0
23.0 52 15 3.0
24.0 31 8 3.0
25.0 13 2 2.0
26.0 23 6 4.0
27.0 12 5 2.0
28.0 3 1 2.0
29.0 5 1 3.0
30.0 2 2 3.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
