| Summary Plots | These are plots of various sine parameters vs frequency for the 4x at 0.22 V and 1x at 0.9 V. | ||
|---|---|---|---|
| Amplitudes |  |
 |
|

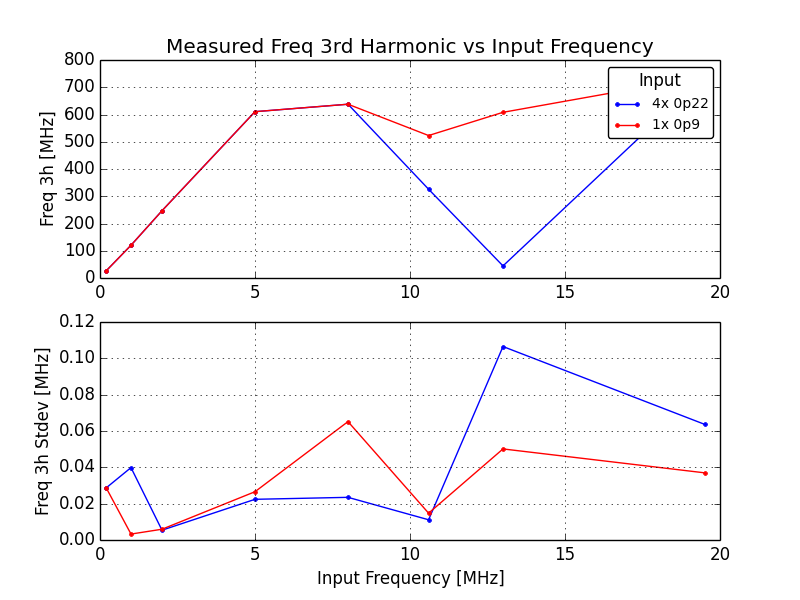

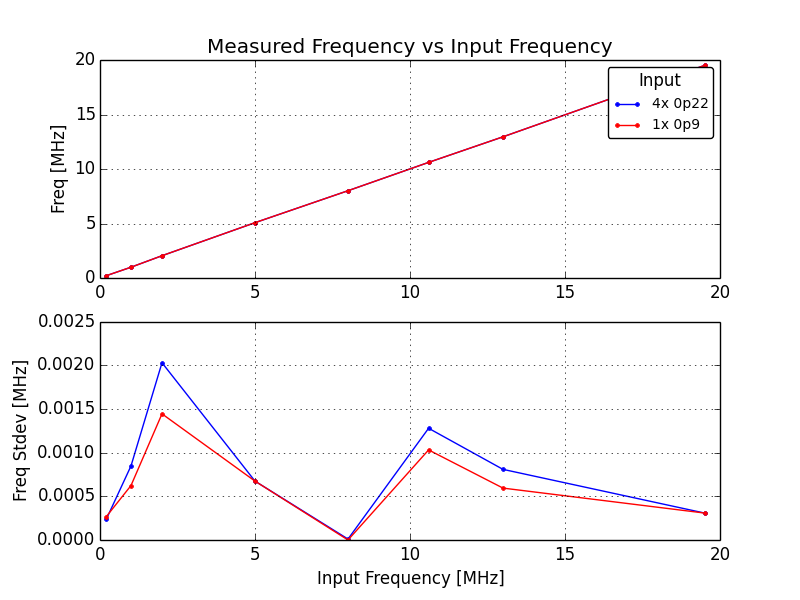

| Frequencies |  |
 |
|

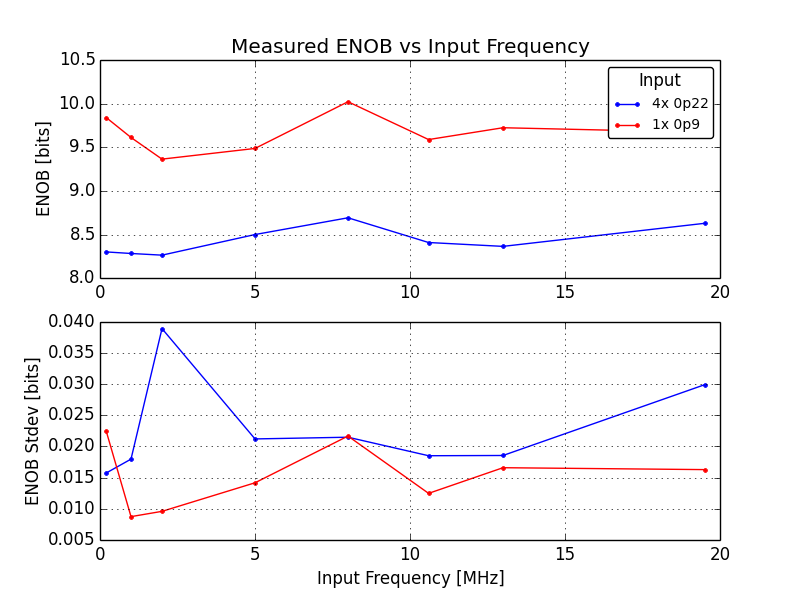

| ENOBs |  |
 |
 |

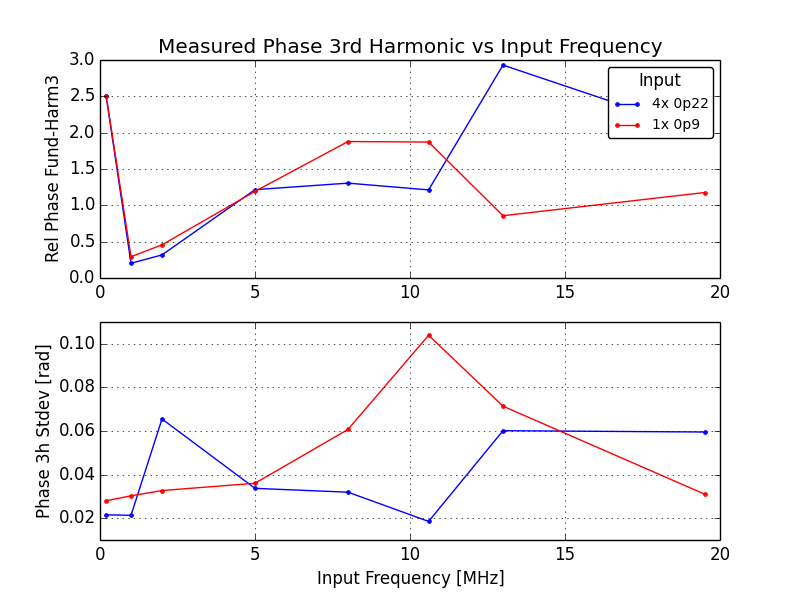

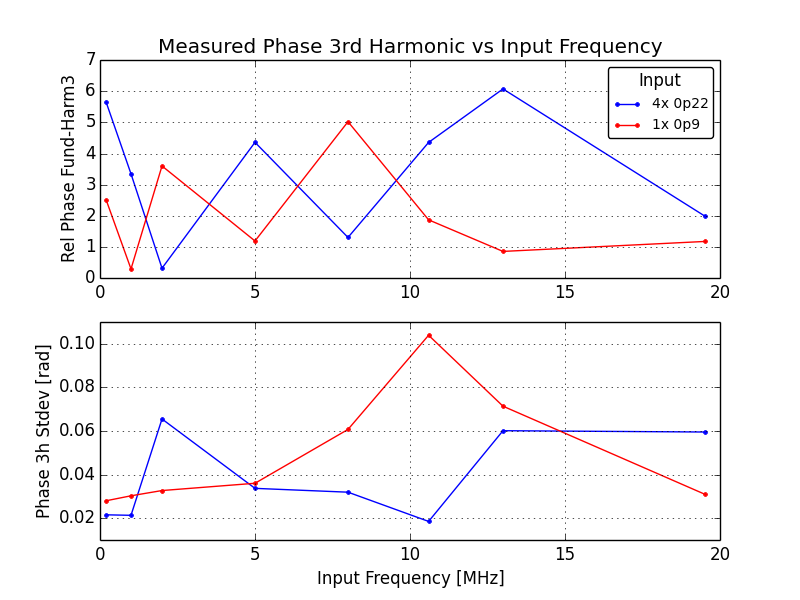

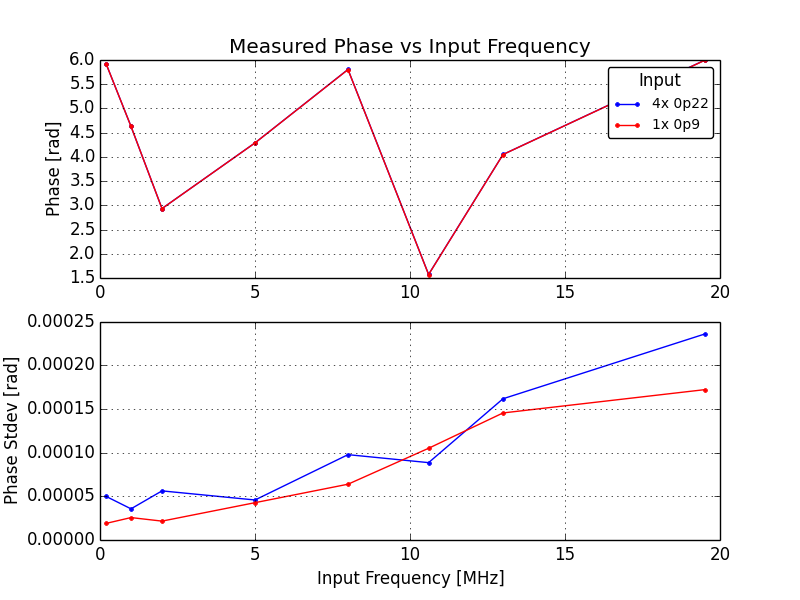

| Phases & Relative Phases |  |
 |
 |

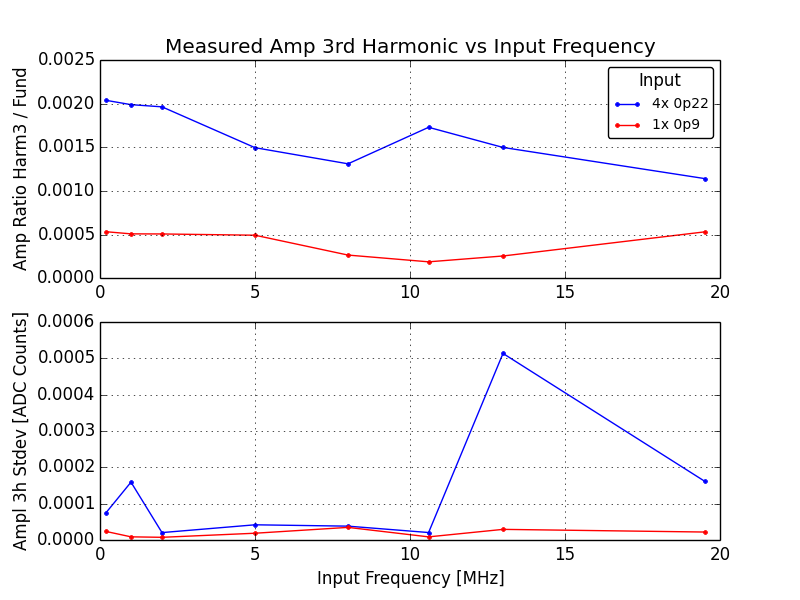

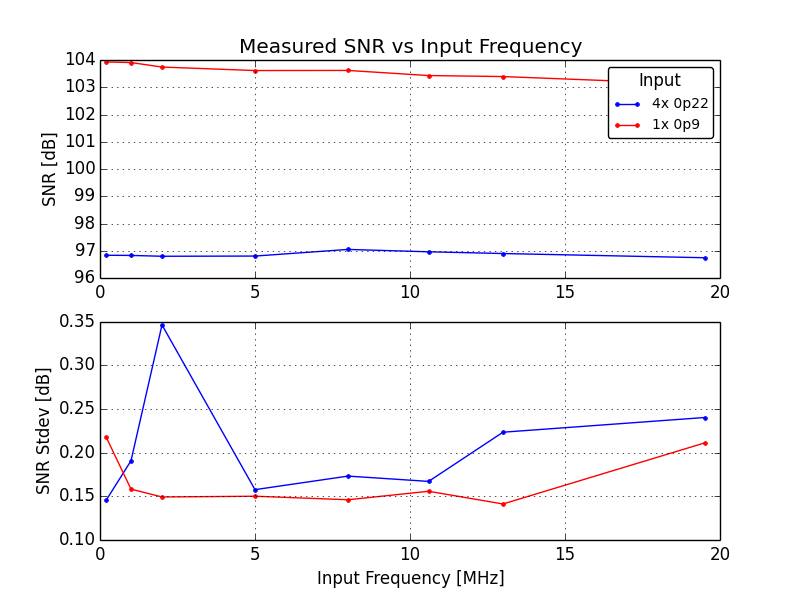

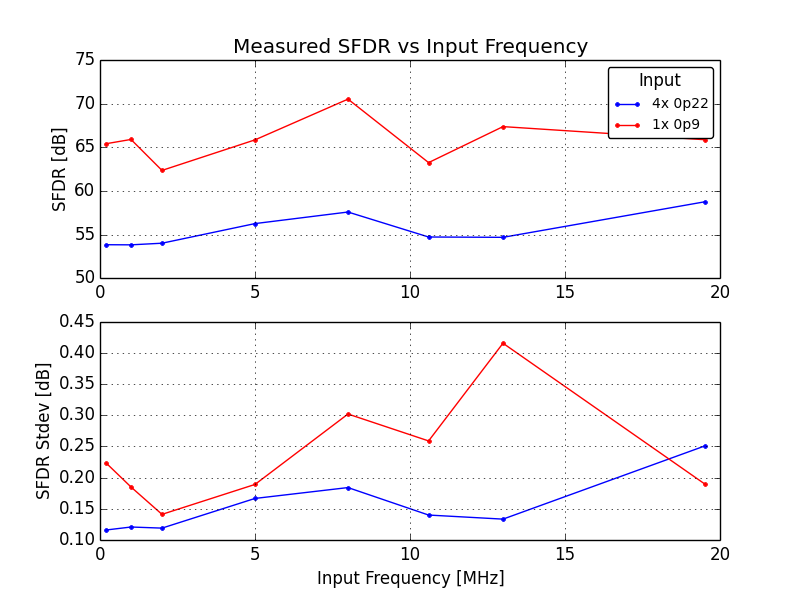

| Other: offset, sfdr, snr. (sfdr and snr not yet corrected for 3rd harmonic distortion) |  |
 |
 |

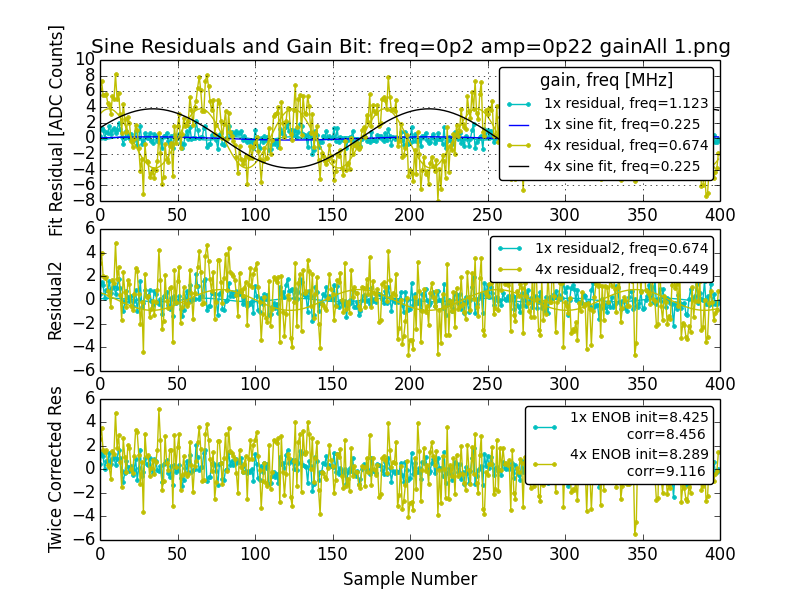

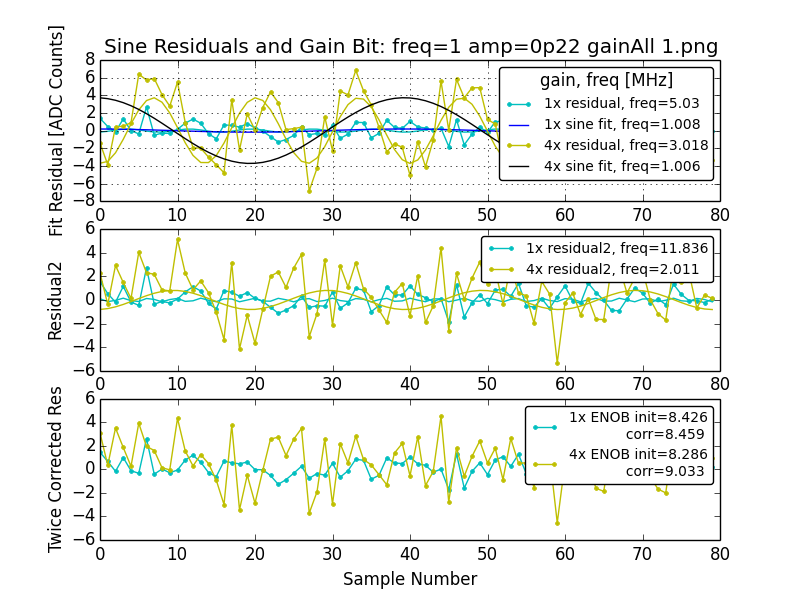

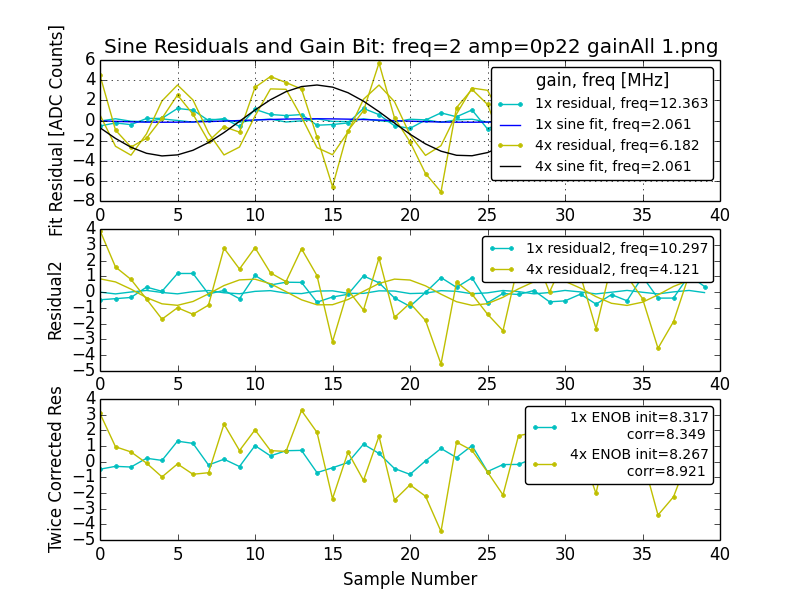

| Sine Fit Residuals (selected) |  |
 |
 |
|---|

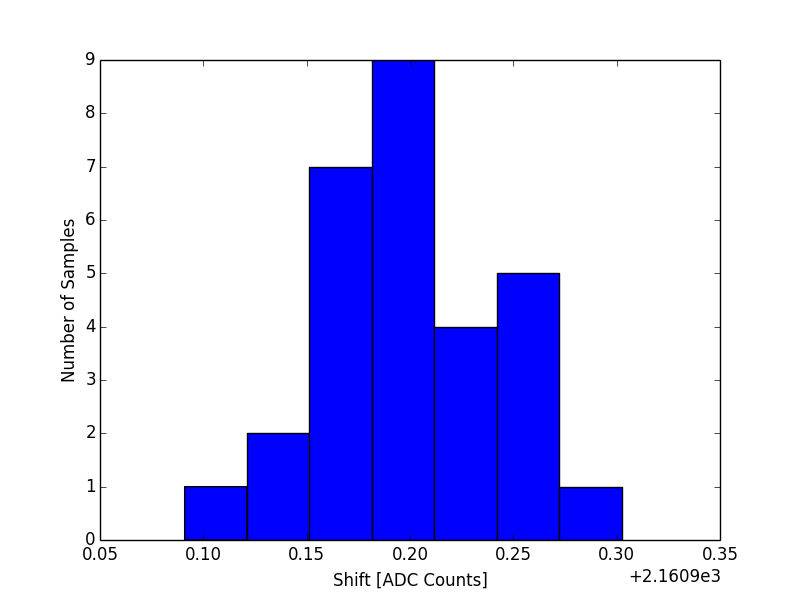

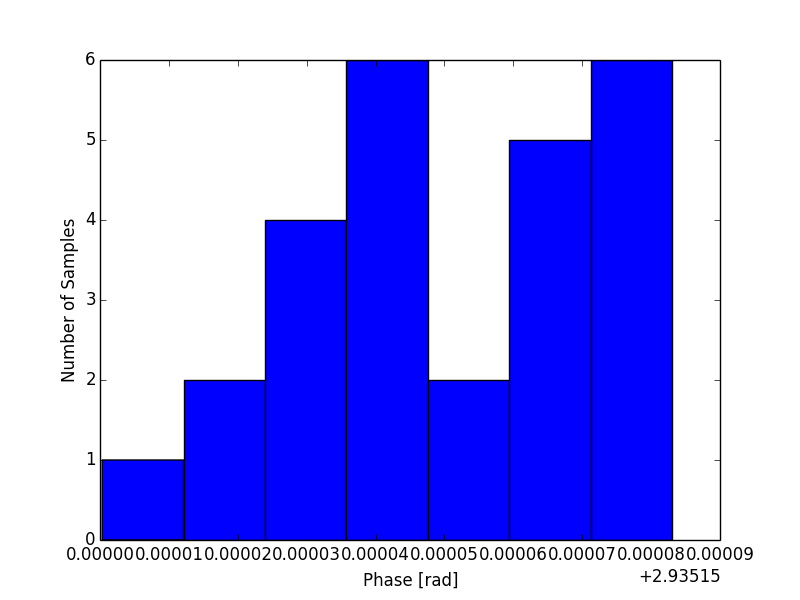

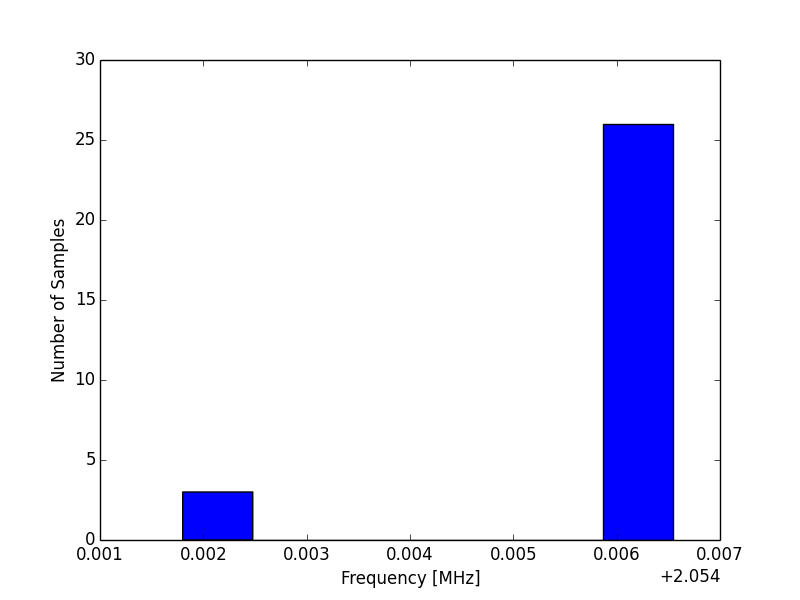

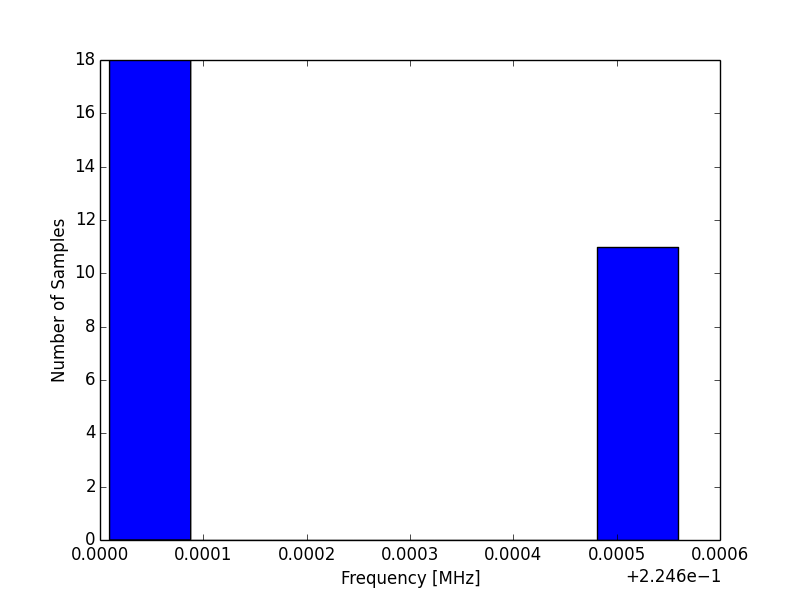

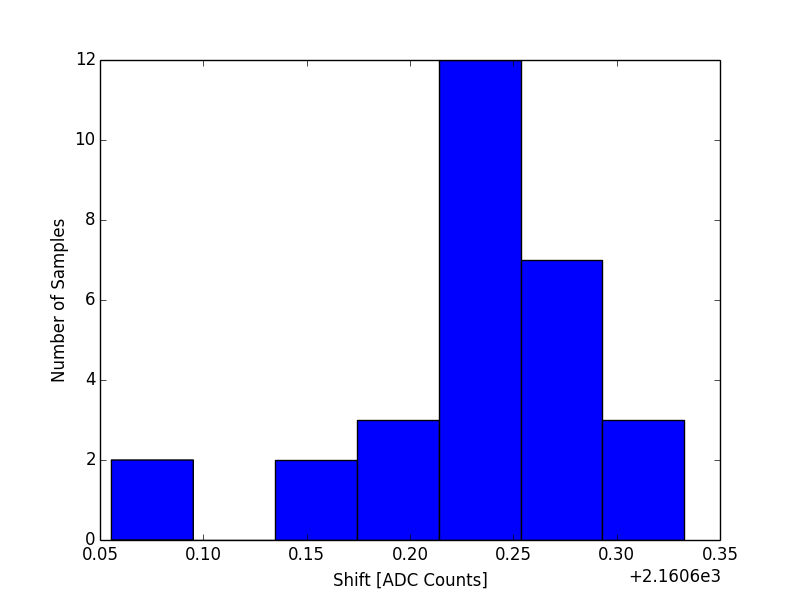

| Selected Histograms | 0p2 MHz | 2 MHz | 8 MHz | 13 MHz |
|---|---|---|---|---|

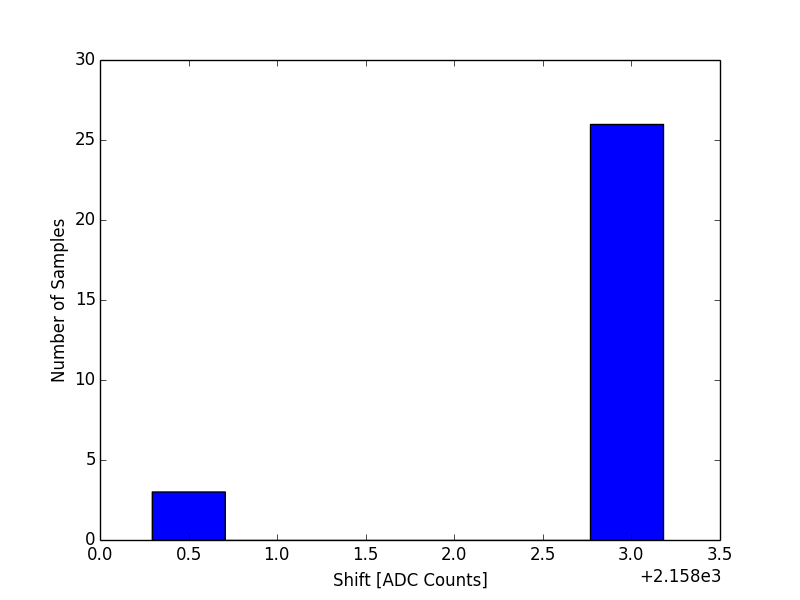

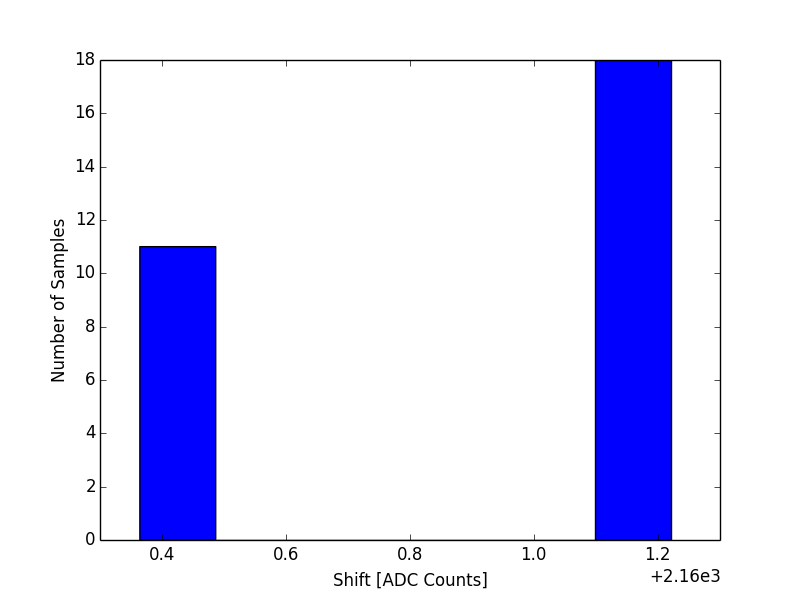

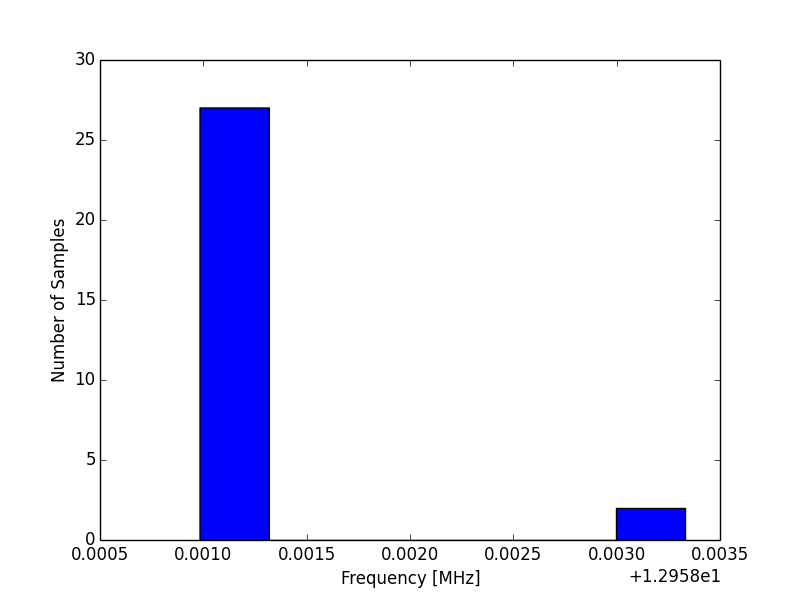

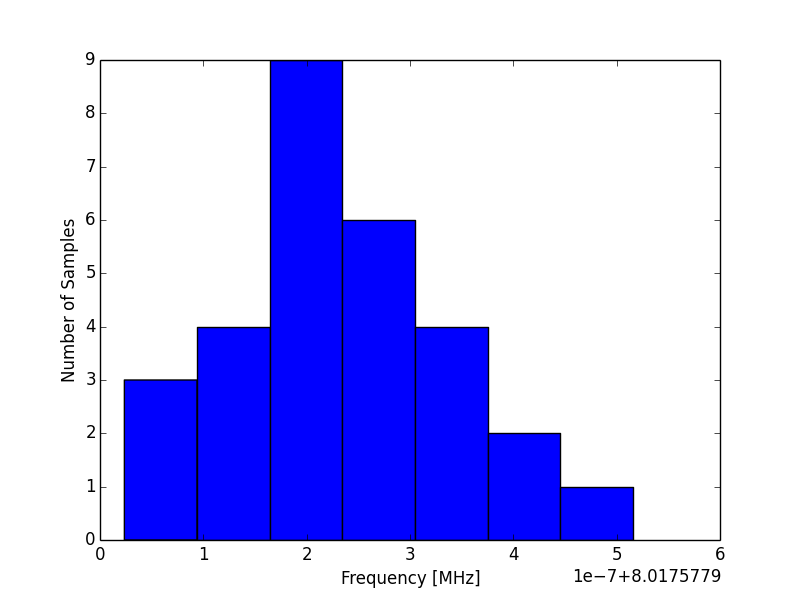

| Frequency |  |
 |
 |
 |

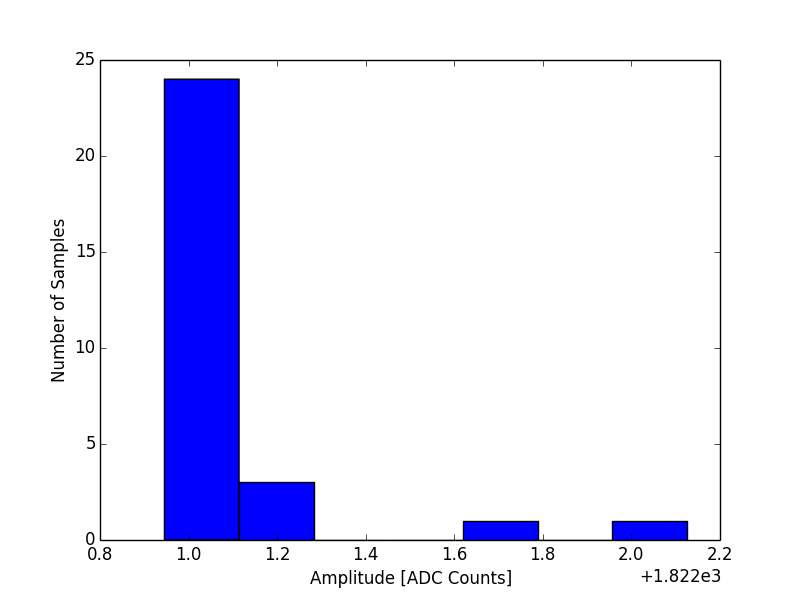

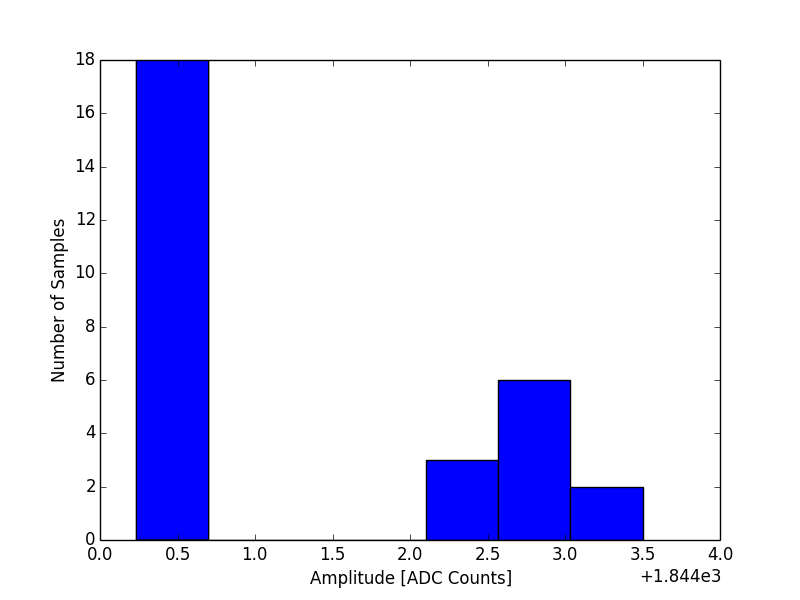

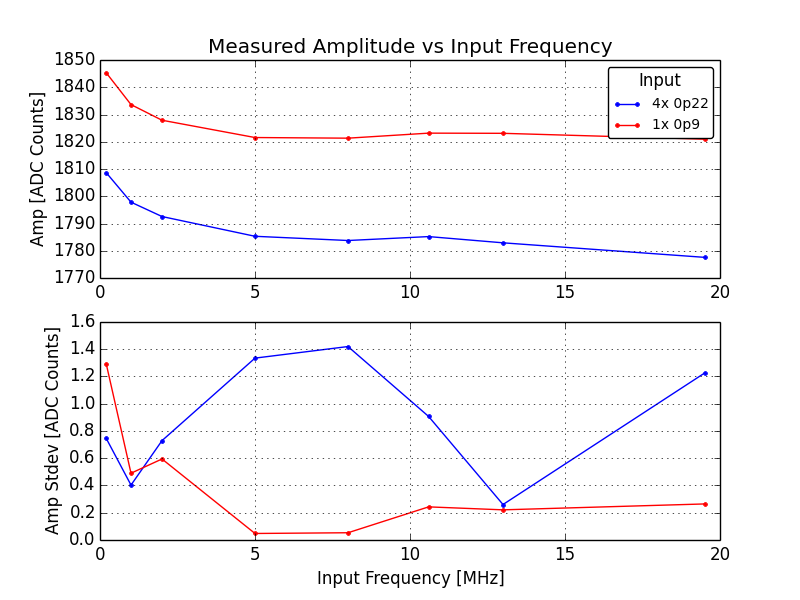

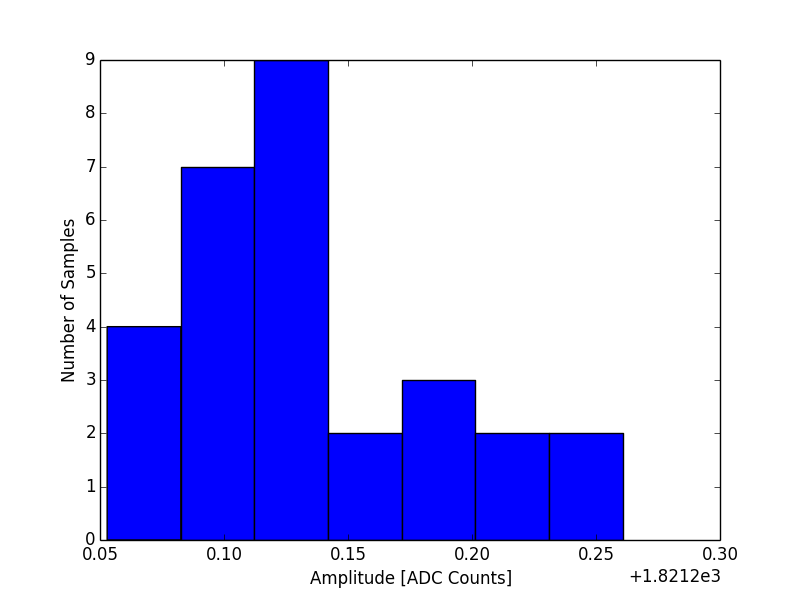

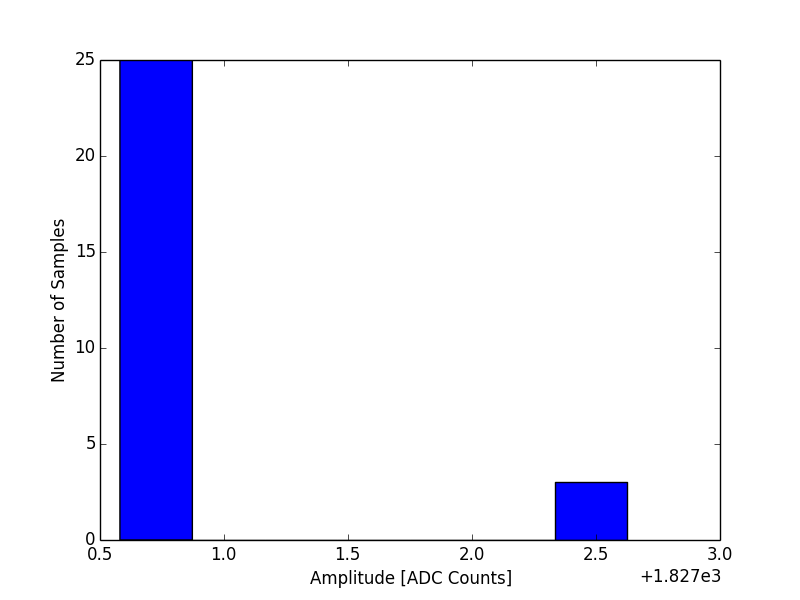

| Amplitude |  |
 |
 |
 |

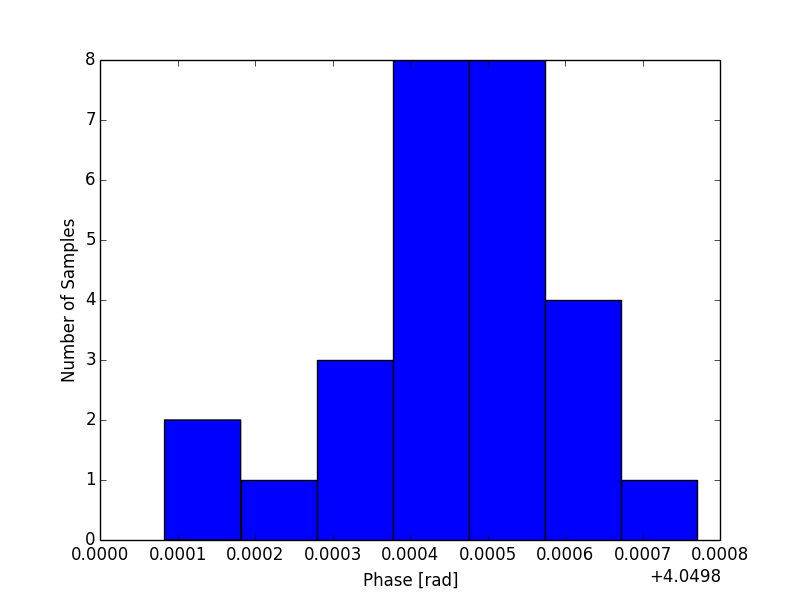

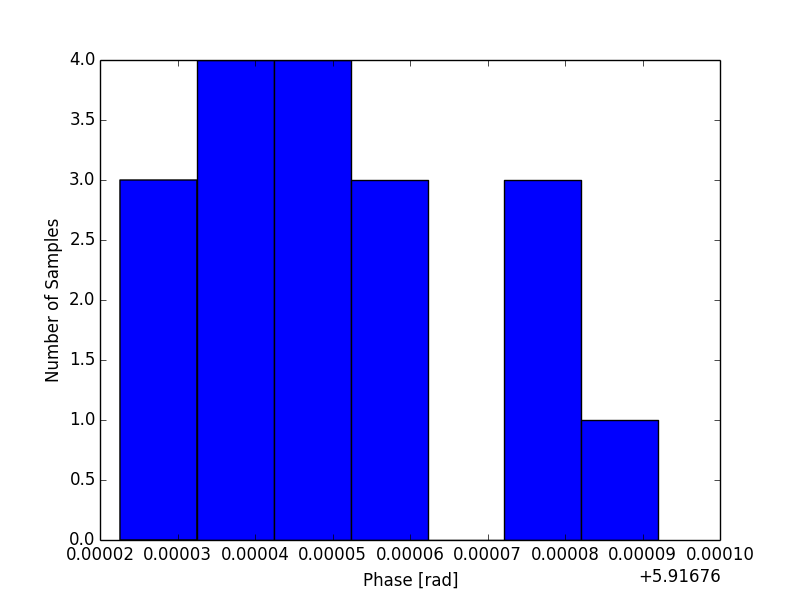

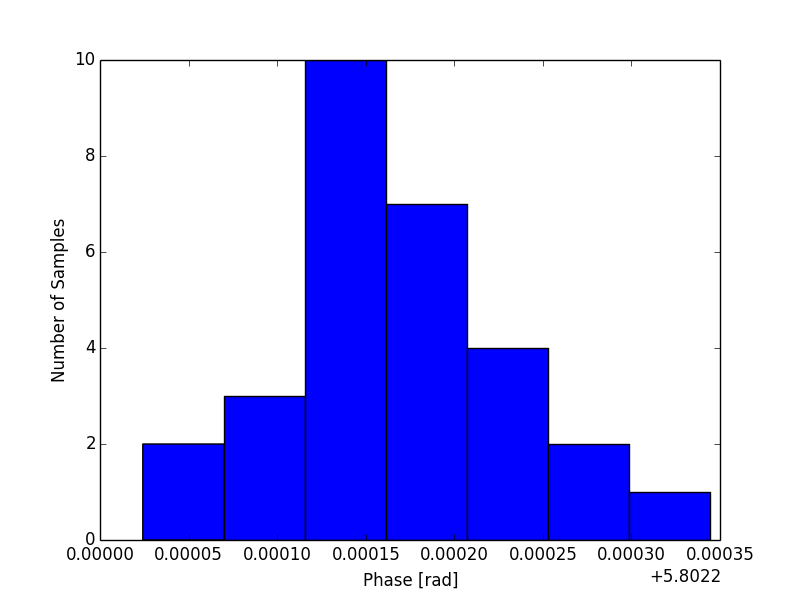

| Phase |  |
 |
 |
 |
| Offset |  |
 |
 |
 |

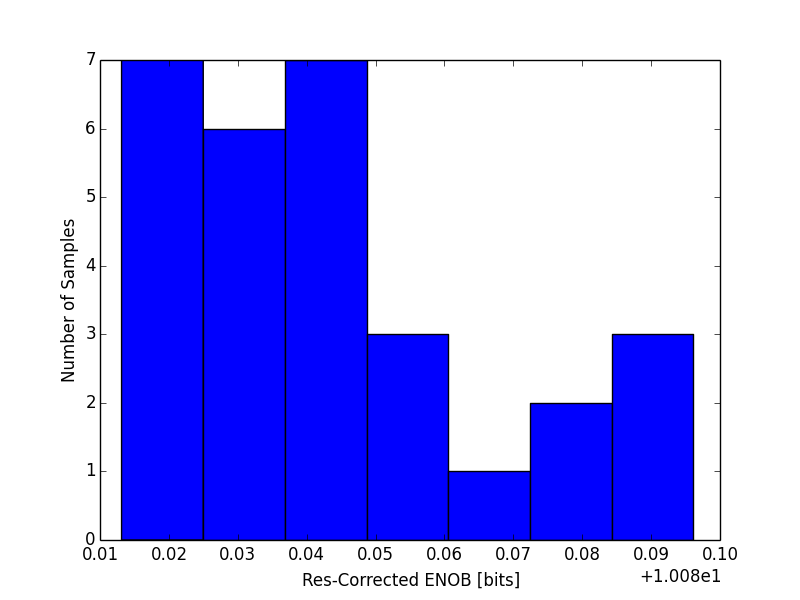

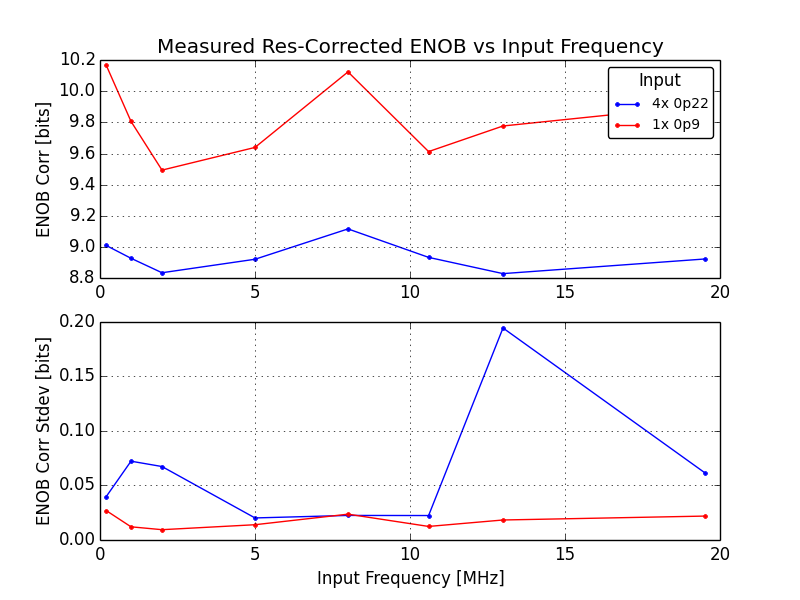

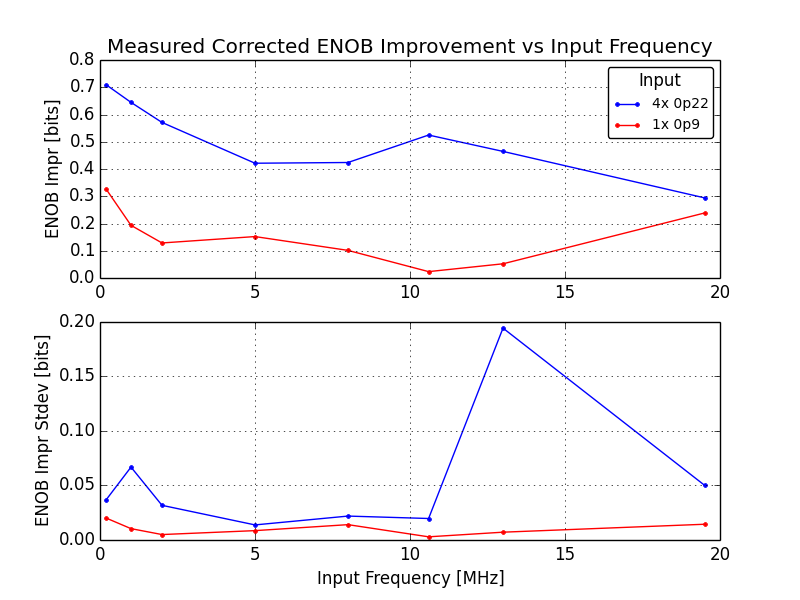

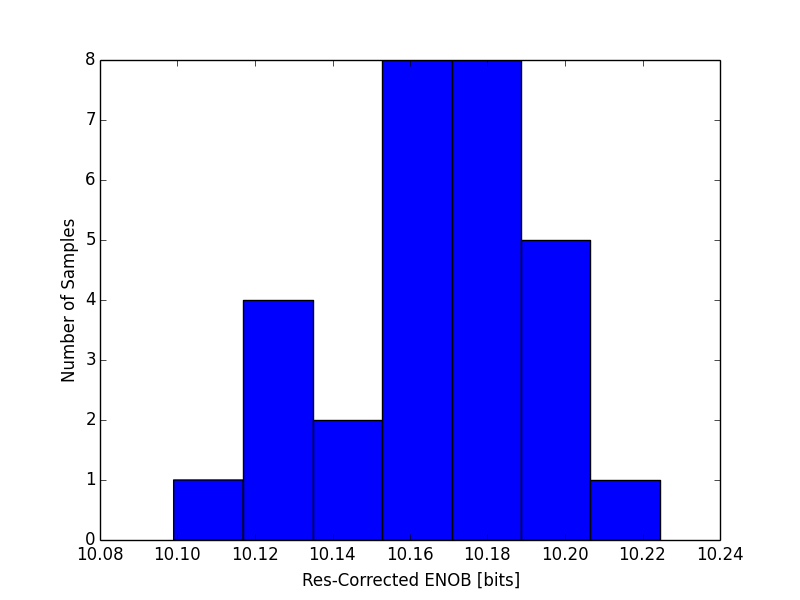

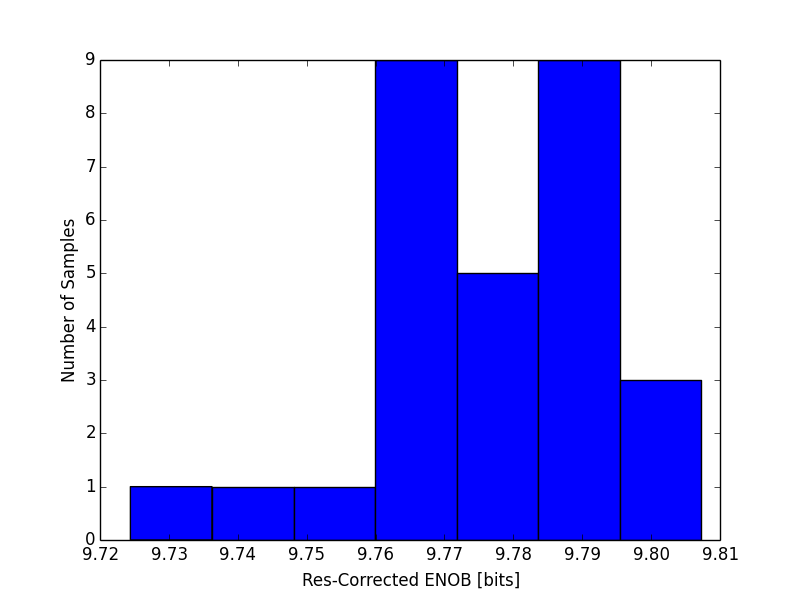

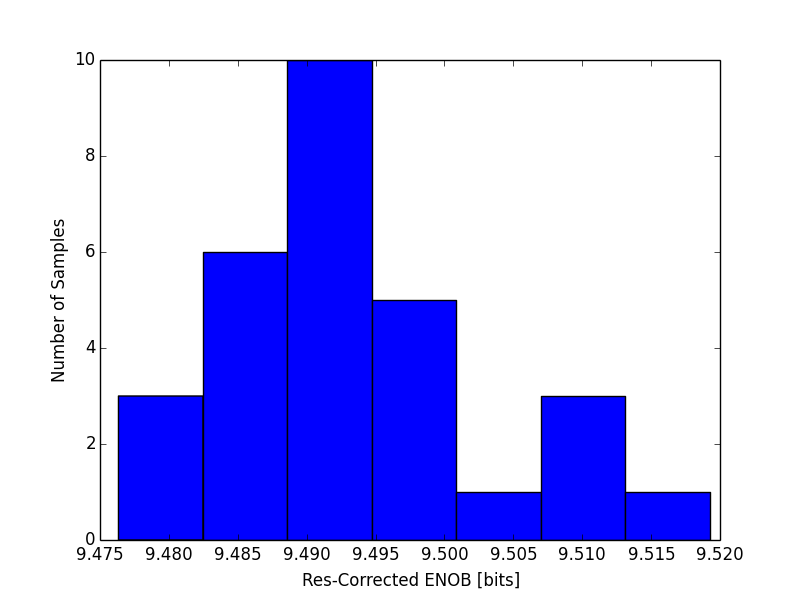

| ENOB (Corrected) |  |
 |
 |
 |
