Non-Pointing Photon Plots

Non-Pointing Photon Analysis: Significances

Preliminary significance calculations using only the photon timing.

Define:
significance = sqrt( -2*(b*log(1 + s/b ) -s ) )
Nsignal = number of signal events in SR with ph_t > 2 ns
Nbkg = scaled* number of data events in CR with ph_t > 2 ns
*scaled --> scale the data events in the CR to the number in the SR (I am using the timing shape of the CR)

Note: I am currently using exclusive timing shapes for the background (ie, use scaled timing shape from data CR_1el_1ph and timing shape of signal SR_1el_1ph to calculate significance).
Next step: using binned log likelihood using photon timing

SR

tau = 2 ns tau = 10 ns

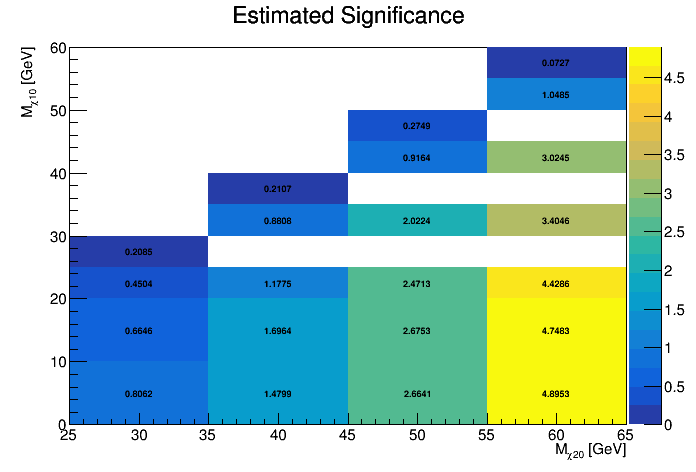

Inclusive (dev ongoing)

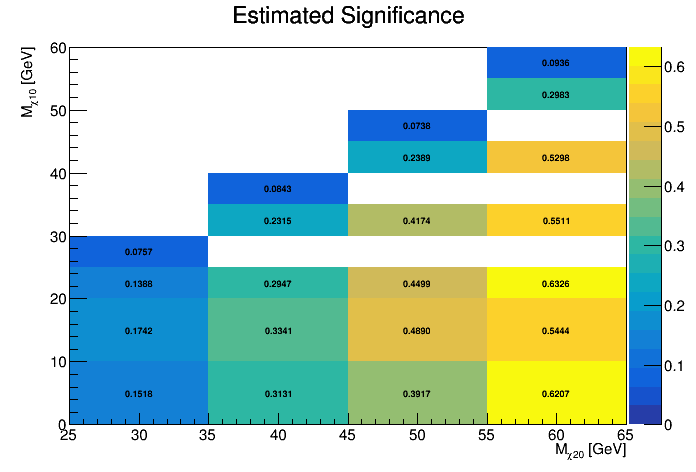

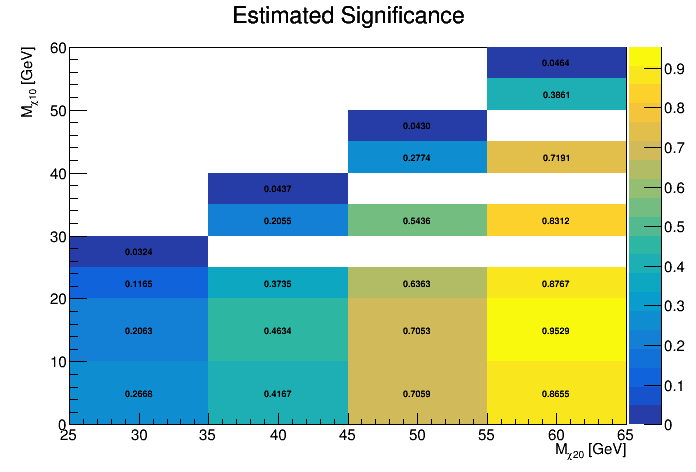

1el, 1 ph

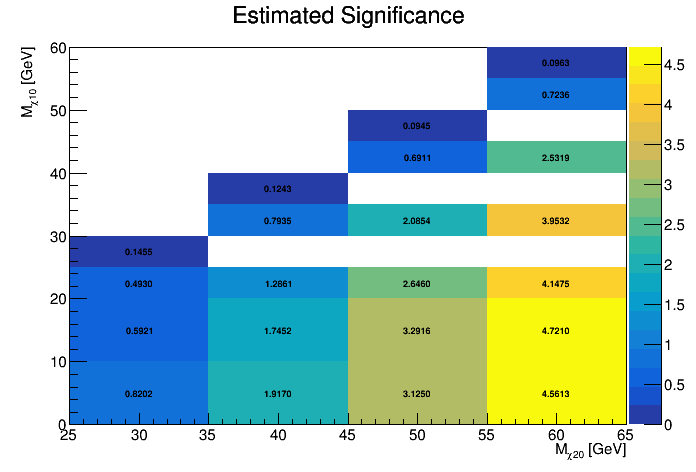

1el, 2 ph
1mu, 1 ph
1mu, 2 ph

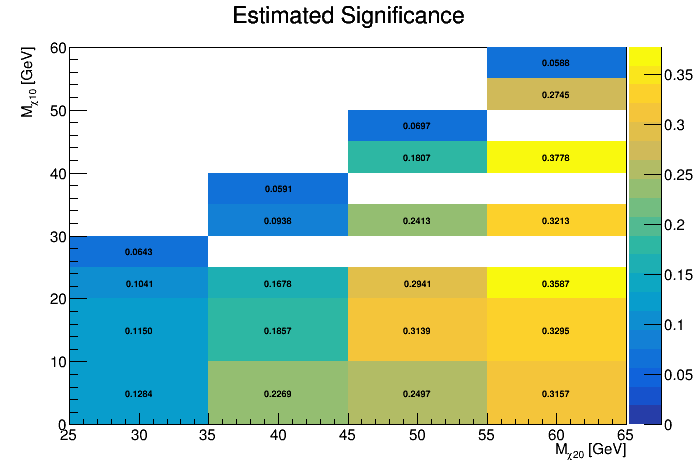

2elOnZ, 1 ph

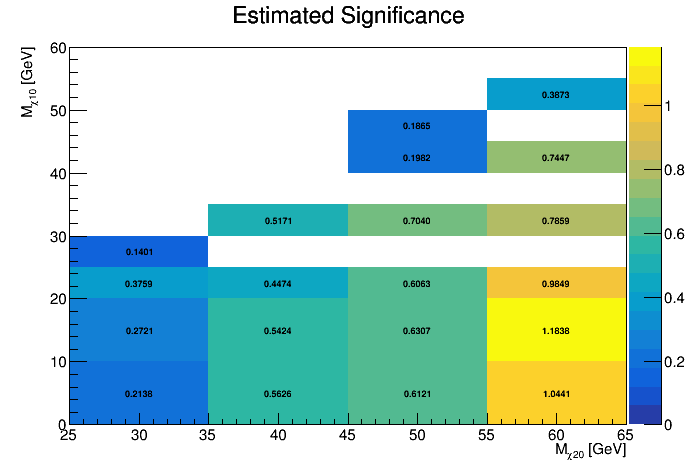

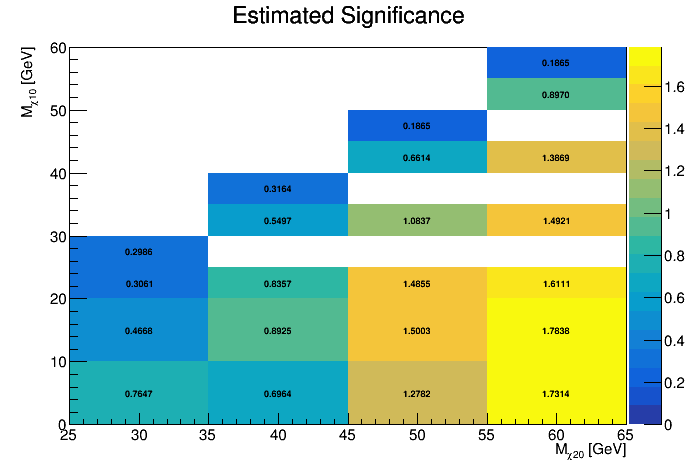

2elOnZ, 2 ph

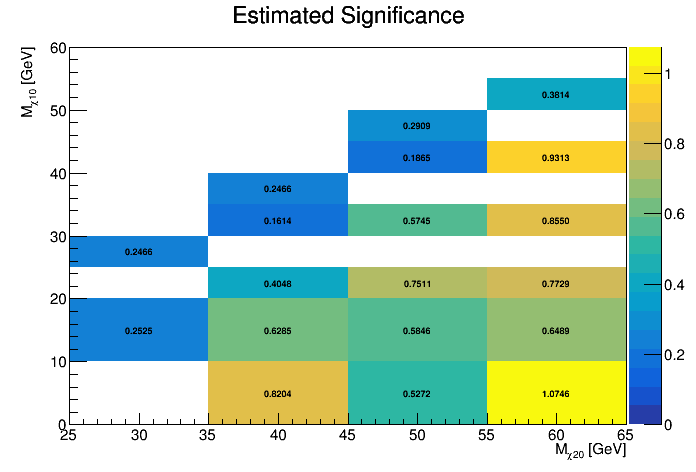

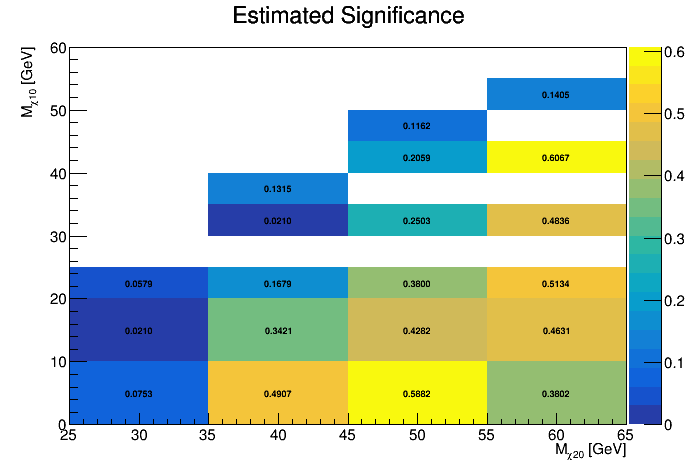

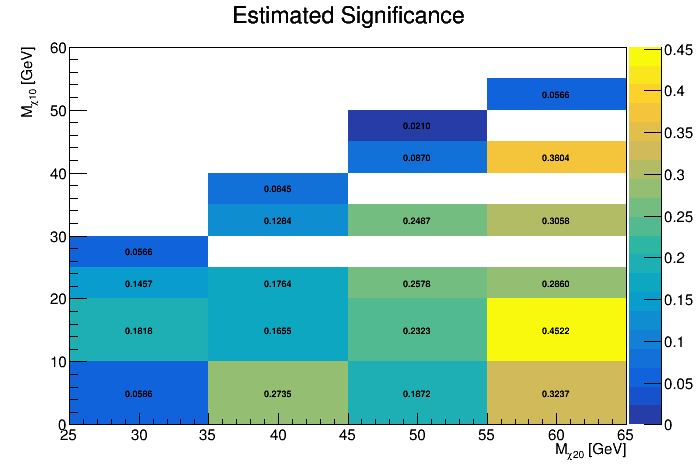

2elOffZ, 1 ph

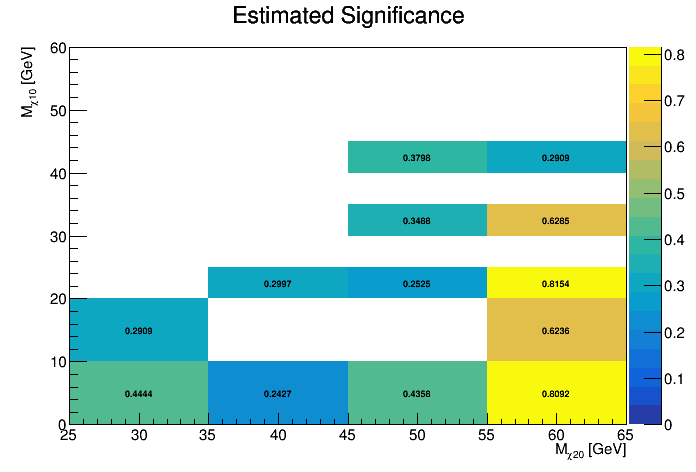

2elOffZ, 2 ph

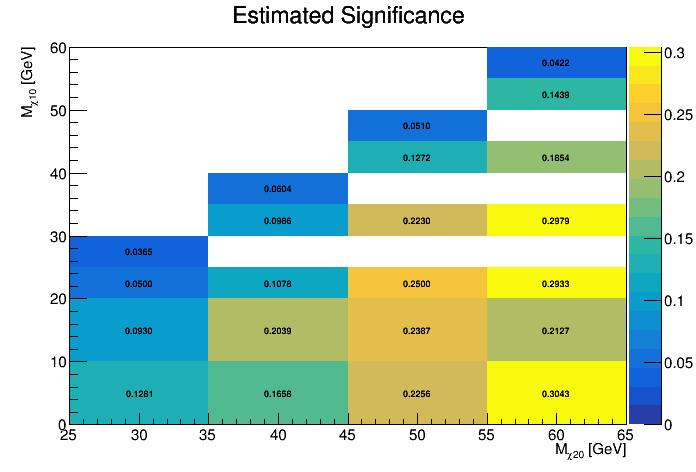

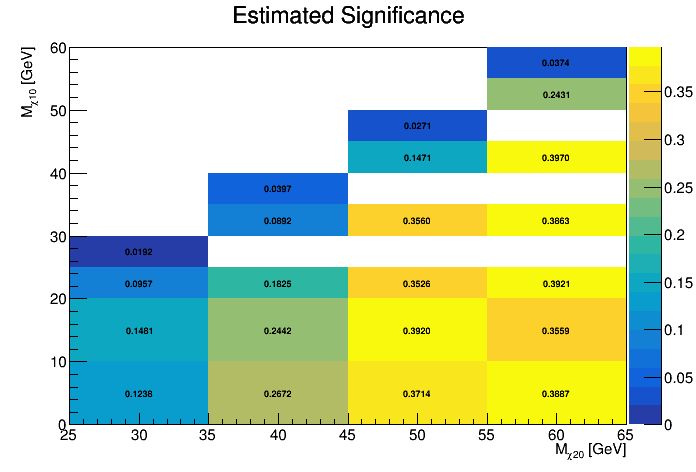

2muOnZ, 1 ph

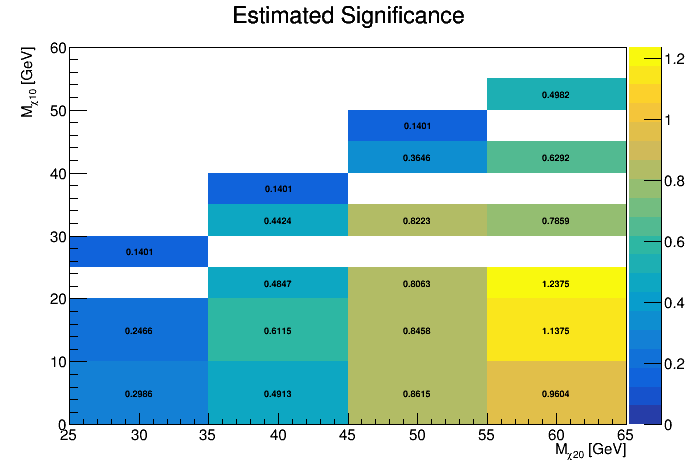

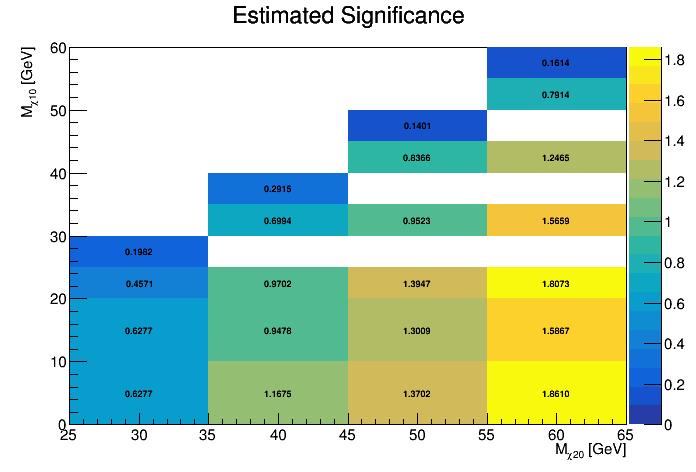

2muOnZ, 2 ph

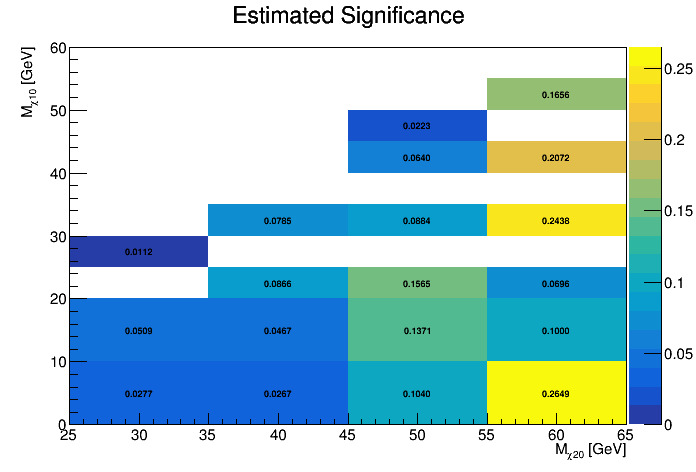

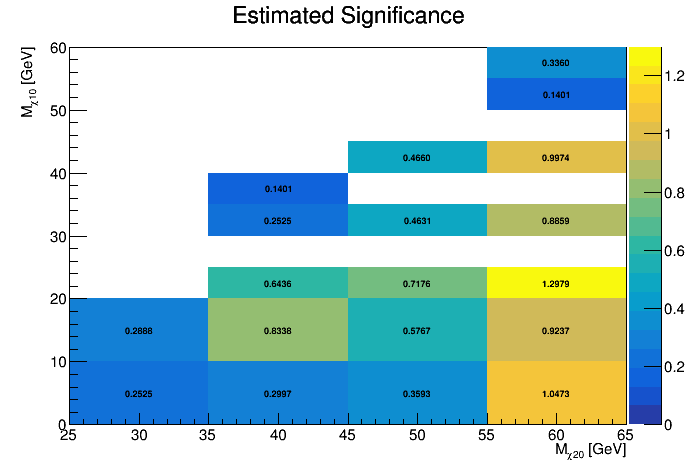

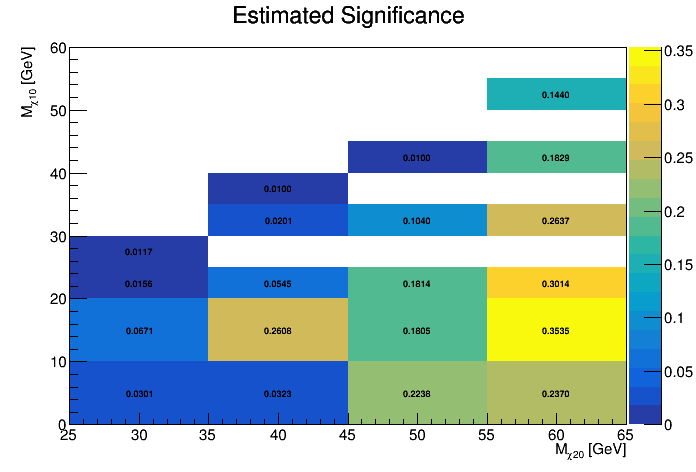

2muOffZ, 1 ph

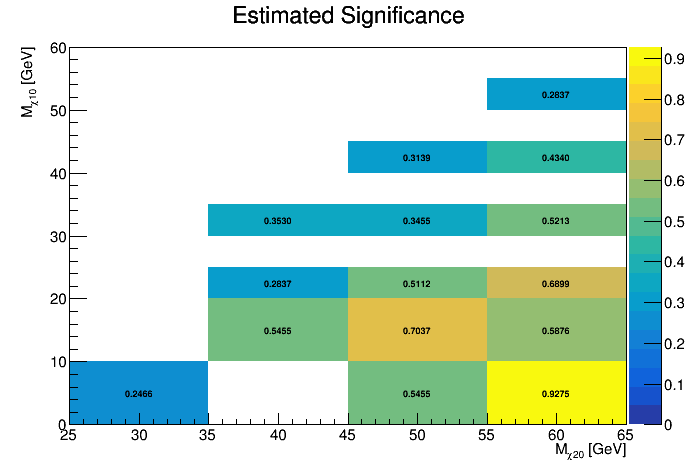

2muOffZ, 2 ph
