Non-Pointing Photon Plots

Non-Pointing Photon Analysis: Comparing Photon Significances in Barrel/Endcap

Preliminary significance calculations using only the photon timing.

Define:
significance = sqrt( -2*(b*log(1 + s/b ) -s ) )
Nsignal = number of signal events in SR with ph_t > 2 ns
Nbkg = scaled* number of data events in CR with ph_t > 2 ns
*scaled --> scale the data events in the CR to the number in the SR (I am using the timing shape of the CR)

Note: I am currently using exclusive timing shapes for the background (ie, use scaled timing shape from data CR_1el_1ph and timing shape of signal SR_1el_1ph to calculate significance).
Next step: using binned log likelihood using photon timing

SR

tau = 2 ns tau = 10 ns

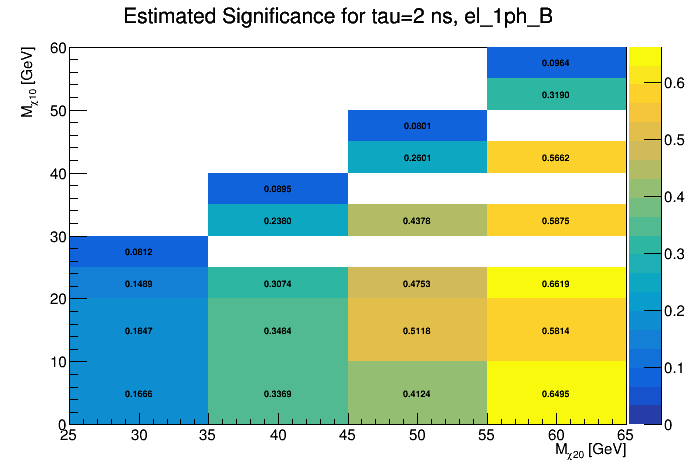

el channel, 1ph_B

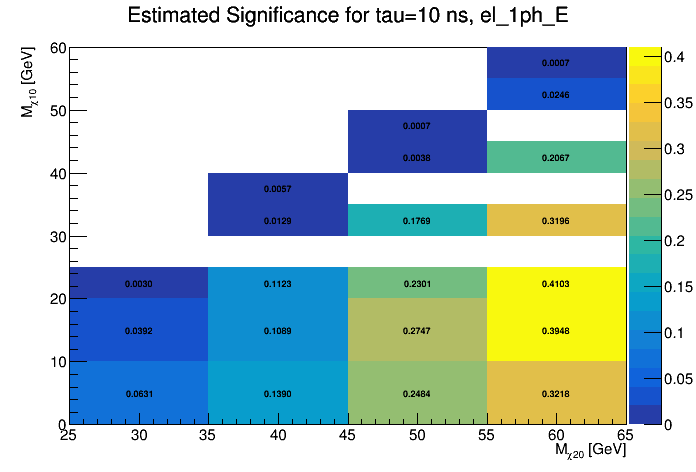

el channel, 1ph_E

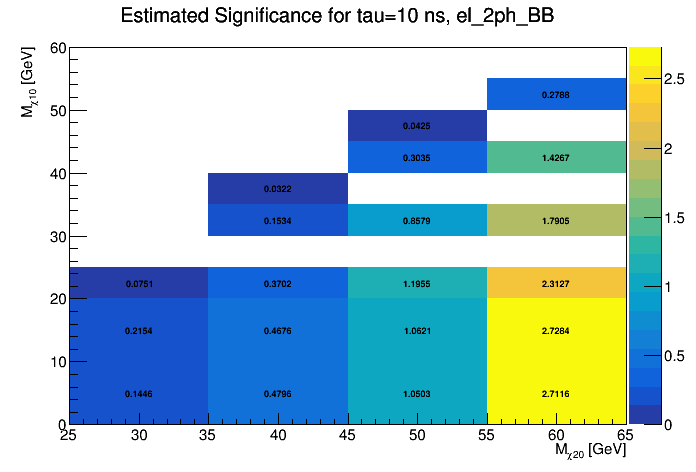

el channel, 2ph_BB

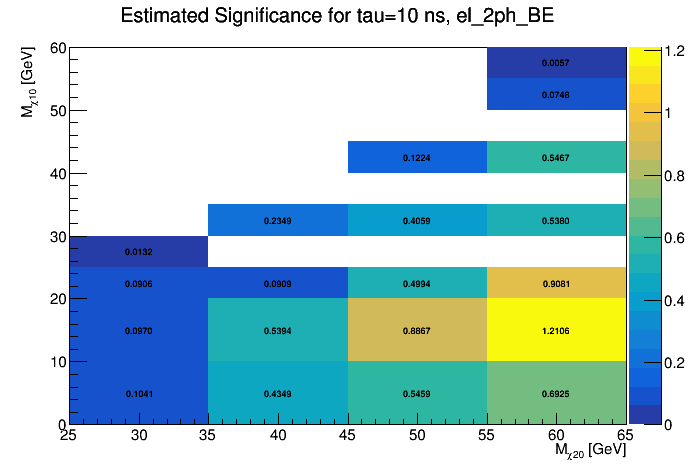

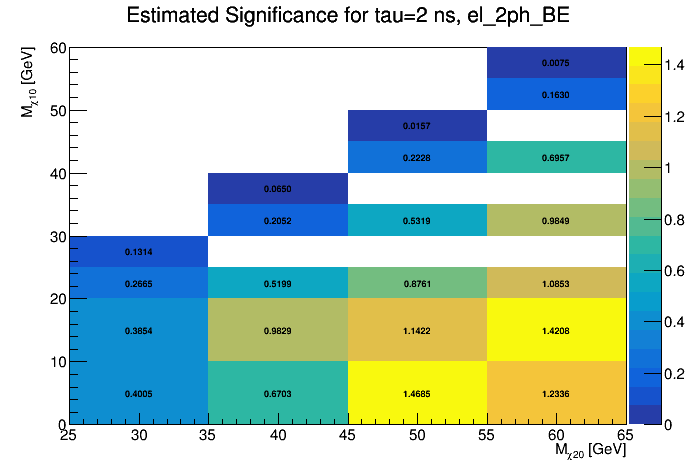

el channel, 2ph_BE

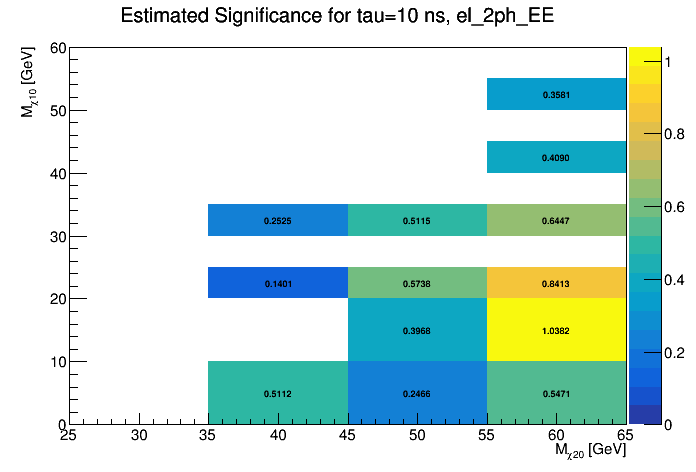

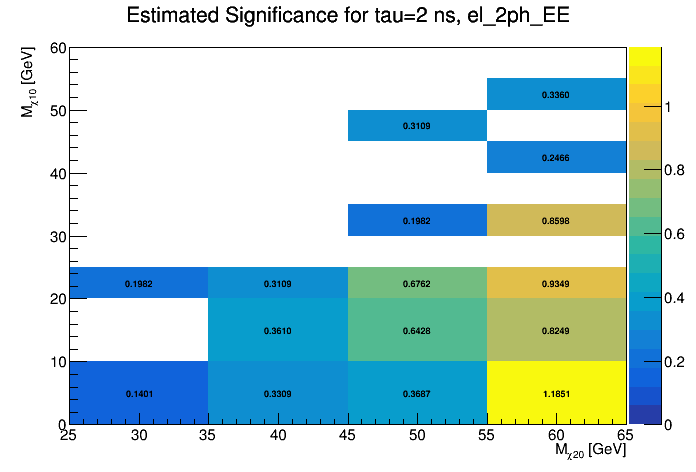

el channel, 2ph_EE
mu channel, 1ph_B

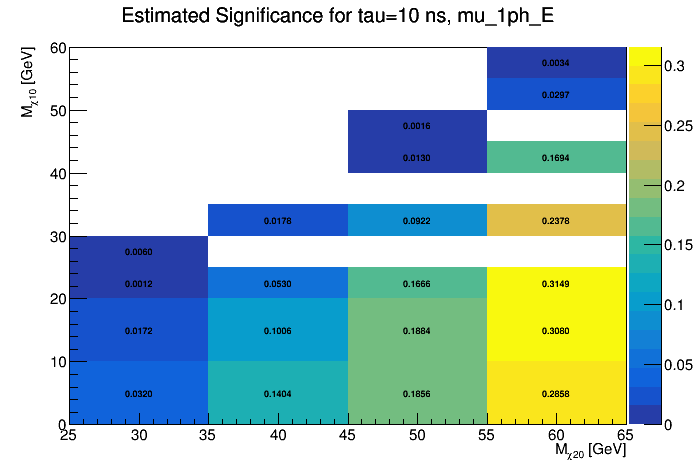

mu channel, 1ph_E
mu channel, 2ph_BB

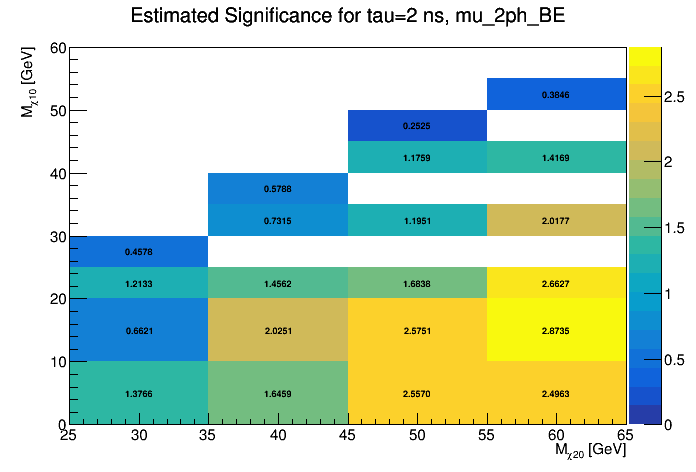

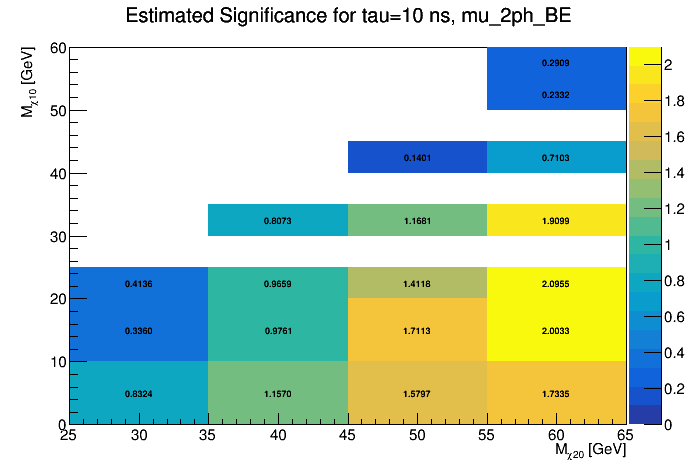

mu channel, 2ph_BE

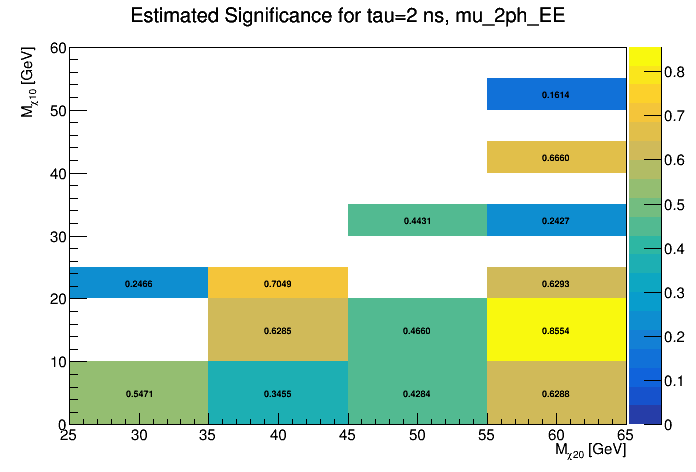

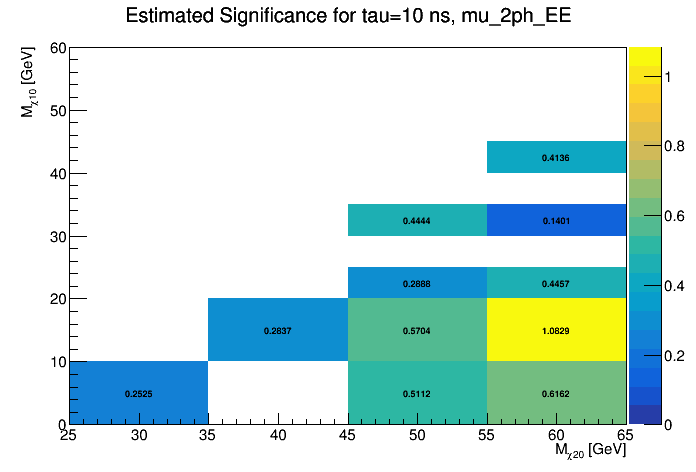

mu channel, 2ph_EE
