Run_0183

Run_0183 Range Plots

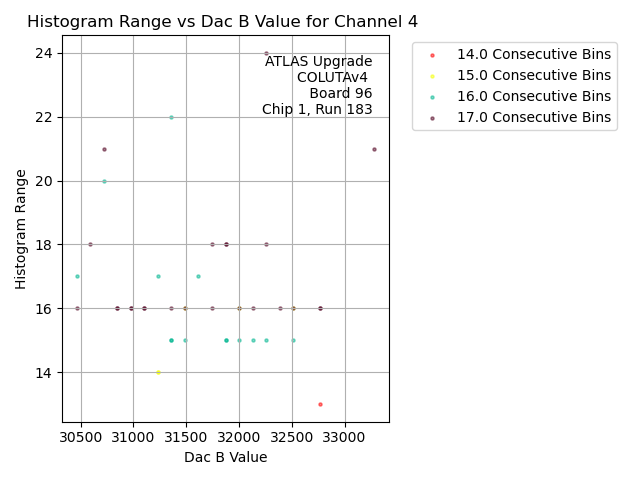

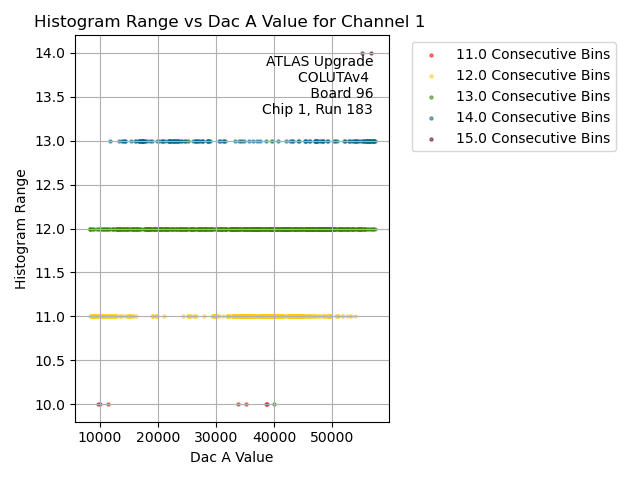

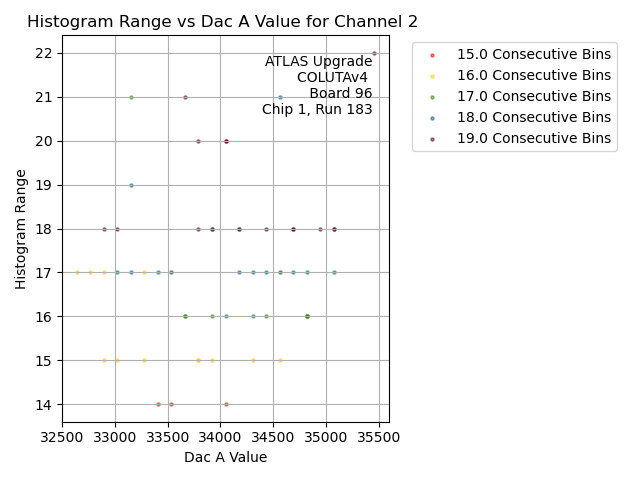

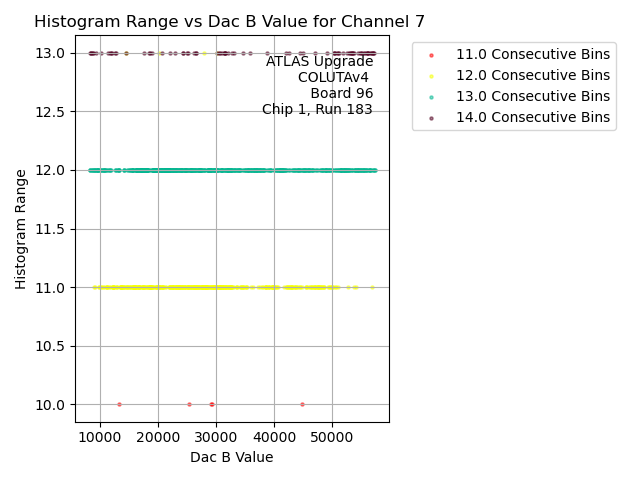

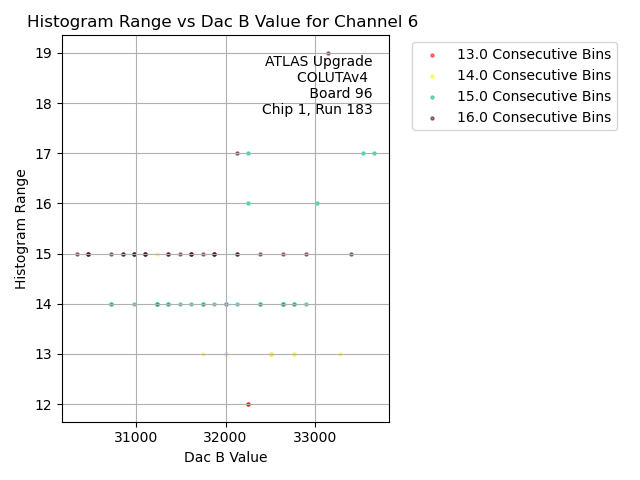

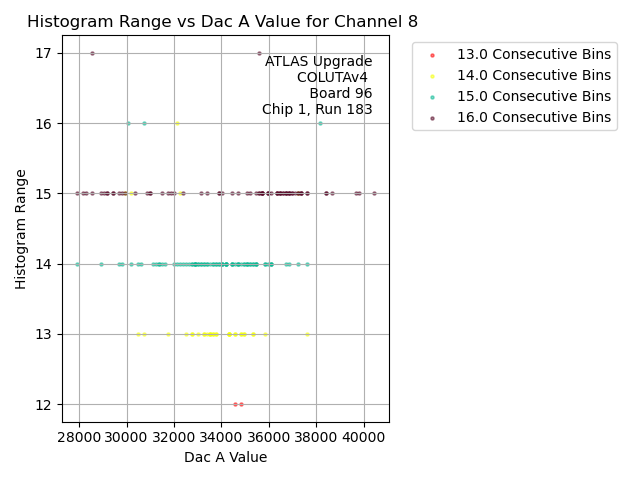

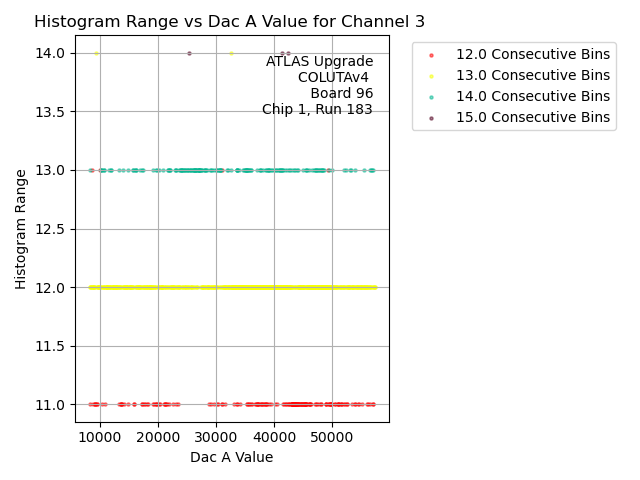

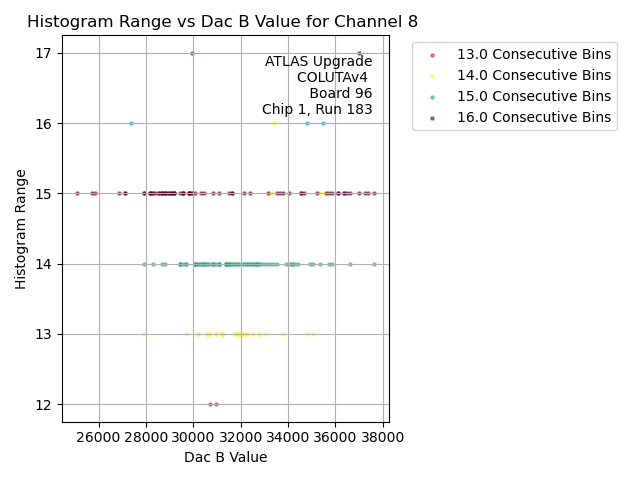

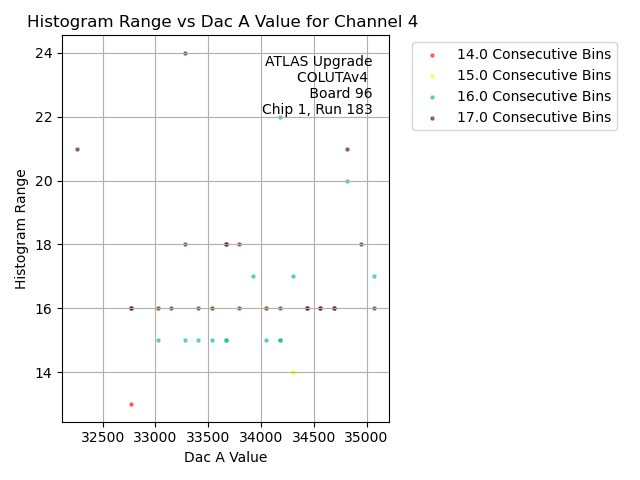

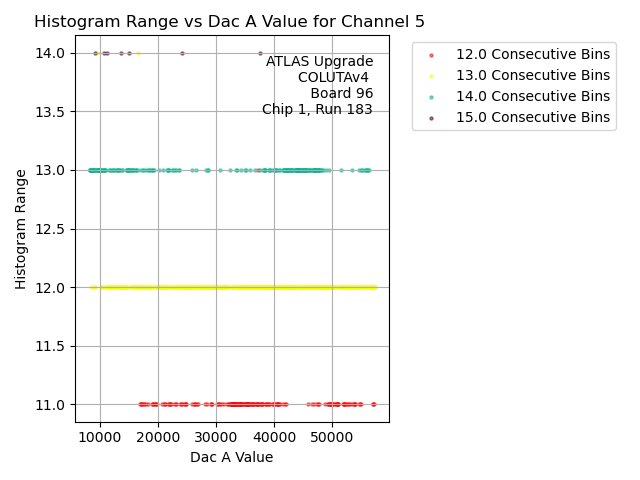

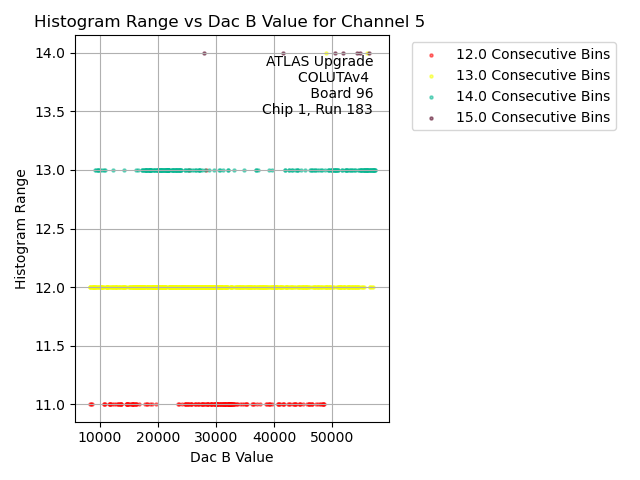

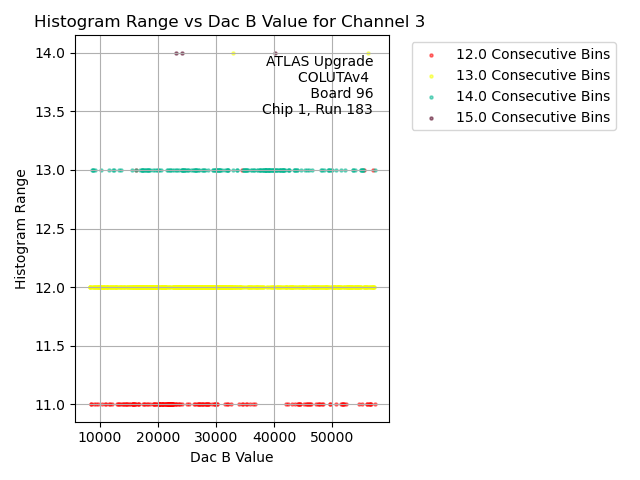

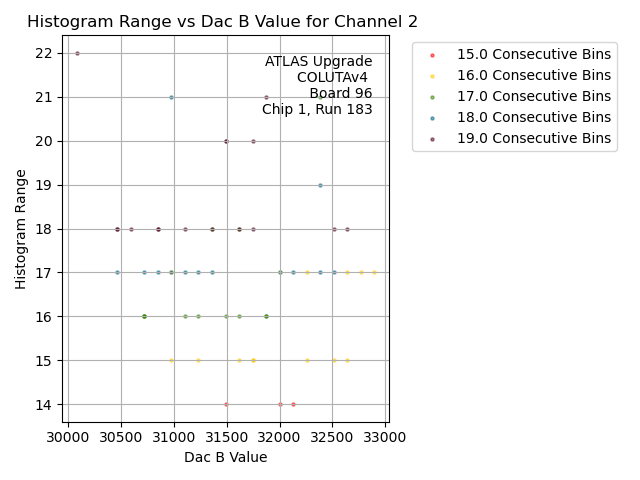

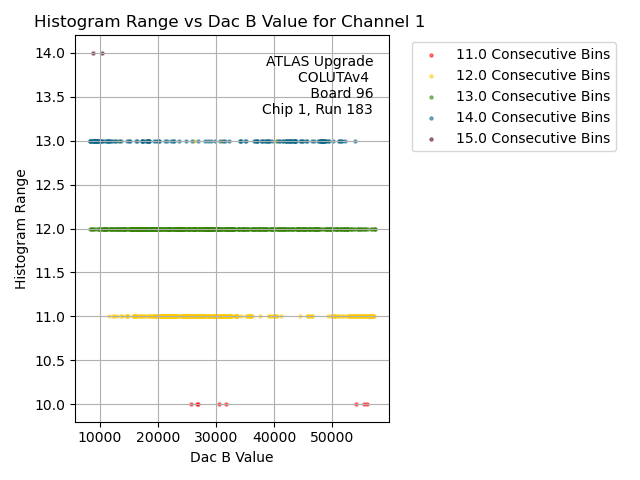

Channel No.Hist. Range vs. DAC A Code Hist. Range vs. DAC b Code
1
2
3
4
5
6
7
8


Channel No. 1
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
11.0 8 0 1.0
12.0 330 4 2.0
13.0 554 0 1.0
14.0 148 0 1.0
15.0 2 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 2
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
15.0 3 0 1.0
16.0 14 6 2.0
17.0 12 2 3.0
18.0 13 2 2.0
19.0 16 3 2.0
20.0 18 5 3.0
21.0 13 2 3.0
22.0 7 2 2.0
23.0 16 3 2.0
24.0 9 3 6.0
25.0 12 3 2.0
26.0 14 4 3.0
27.0 21 8 12.0
28.0 16 10 12.0
29.0 33 23 21.0
30.0 87 77 26.0
31.0 735 622 23.0
32.0 3 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 3
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
12.0 179 4 2.0
13.0 689 2 2.0
14.0 171 0 1.0
15.0 3 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 4
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
14.0 1 0 1.0
15.0 5 2 2.0
16.0 14 5 3.0
17.0 24 5 3.0
18.0 18 2 2.0
19.0 15 2 3.0
20.0 16 6 3.0
21.0 12 5 3.0
22.0 15 1 2.0
23.0 11 6 9.0
24.0 13 4 8.0
25.0 16 10 9.0
26.0 20 6 9.0
27.0 17 9 14.0
28.0 22 14 11.0
29.0 43 32 14.0
30.0 101 87 24.0
31.0 676 569 23.0
32.0 3 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 5
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
12.0 191 2 2.0
13.0 633 2 2.0
14.0 211 0 1.0
15.0 7 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 6
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
13.0 2 0 1.0
14.0 11 0 2.0
15.0 29 3 2.0
16.0 31 1 3.0
17.0 25 1 2.0
18.0 12 1 2.0
19.0 22 4 3.0
20.0 23 2 2.0
21.0 14 4 3.0
22.0 20 7 3.0
23.0 18 6 3.0
24.0 23 8 9.0
25.0 26 12 9.0
26.0 12 7 10.0
27.0 27 17 12.0
28.0 50 39 11.0
29.0 64 54 17.0
30.0 139 117 19.0
31.0 489 392 17.0
32.0 5 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 7
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
11.0 6 1 2.0
12.0 385 4 2.0
13.0 572 0 1.0
14.0 79 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 8
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
13.0 2 0 1.0
14.0 36 3 2.0
15.0 80 3 2.0
16.0 74 2 2.0
17.0 62 8 2.0
18.0 55 6 2.0
19.0 48 8 3.0
20.0 38 7 2.0
21.0 30 8 3.0
22.0 38 6 3.0
23.0 32 7 3.0
24.0 46 18 4.0
25.0 31 15 3.0
26.0 30 14 5.0
27.0 40 22 7.0
28.0 39 21 8.0
29.0 66 40 9.0
30.0 90 57 8.0
31.0 198 111 7.0
32.0 7 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
