Run_0210

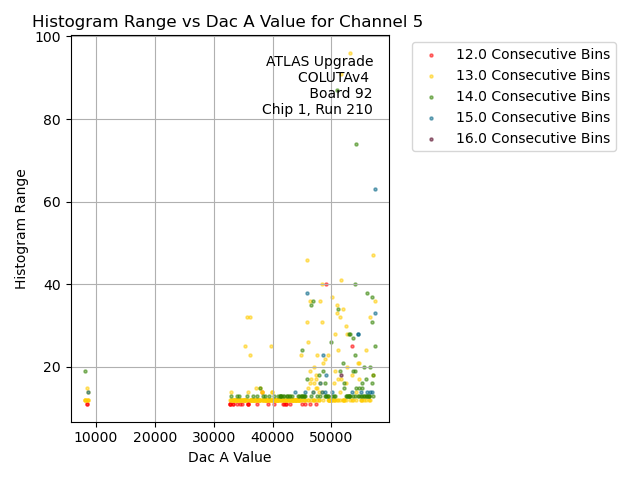

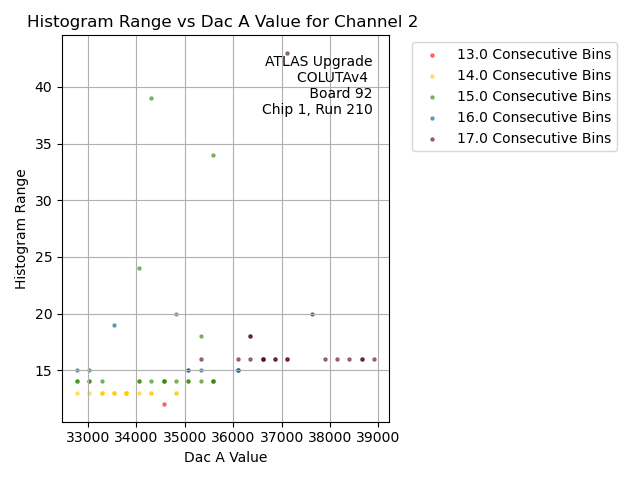

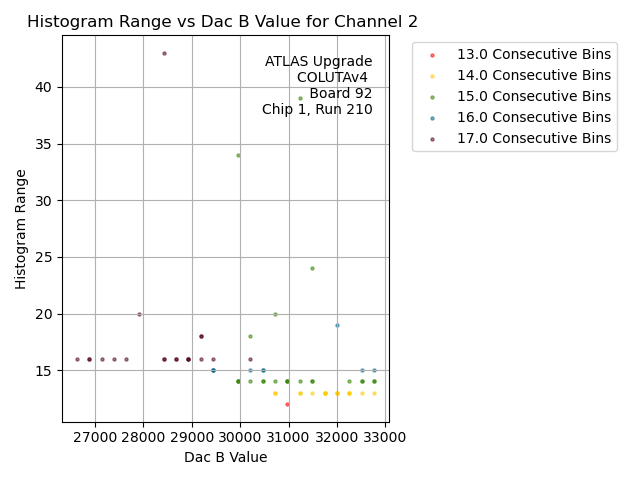

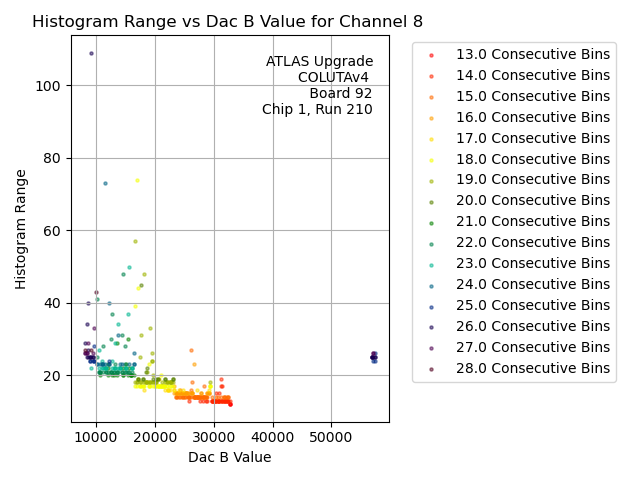

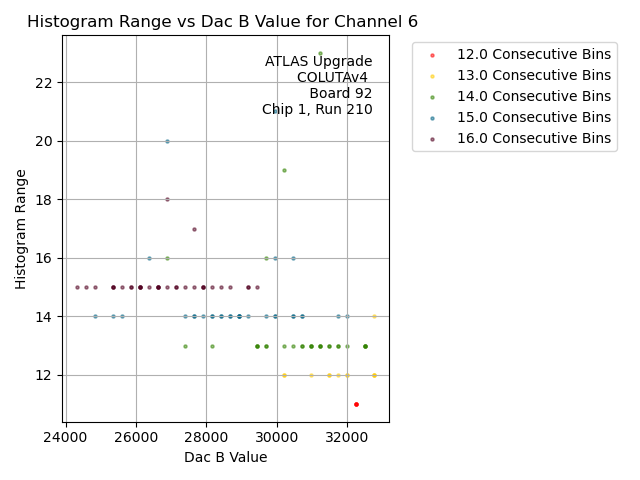

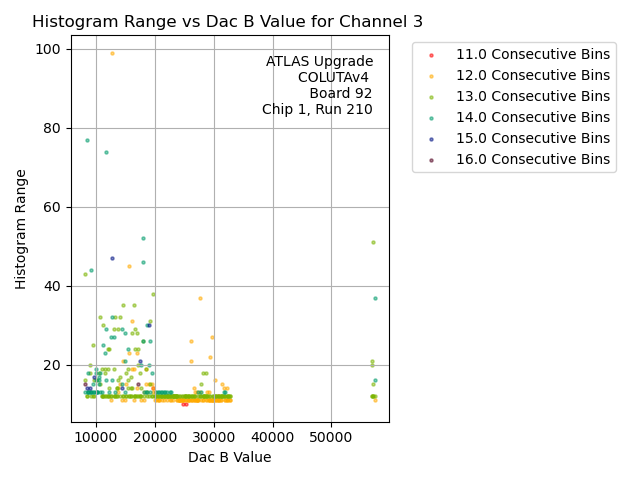

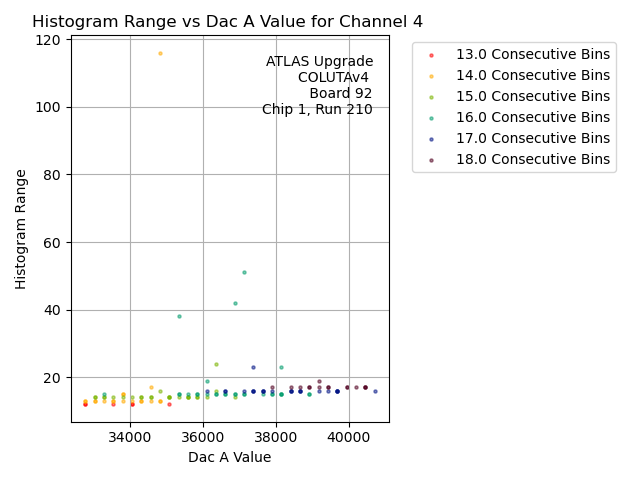

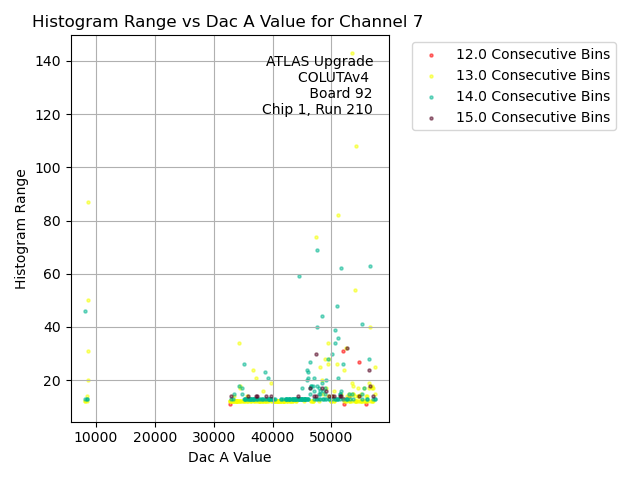

Run_0210 Range Plots

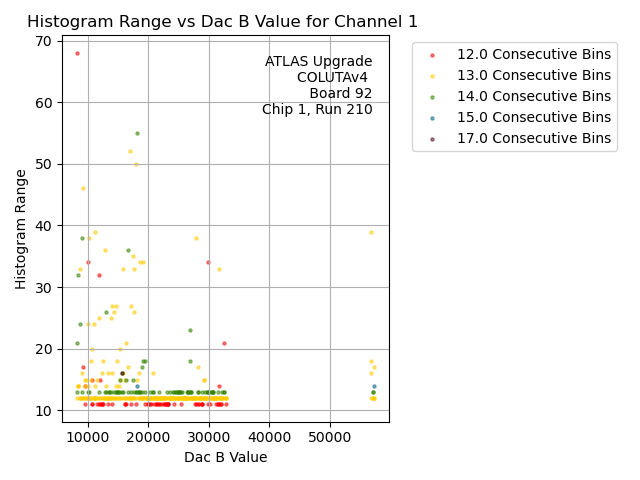

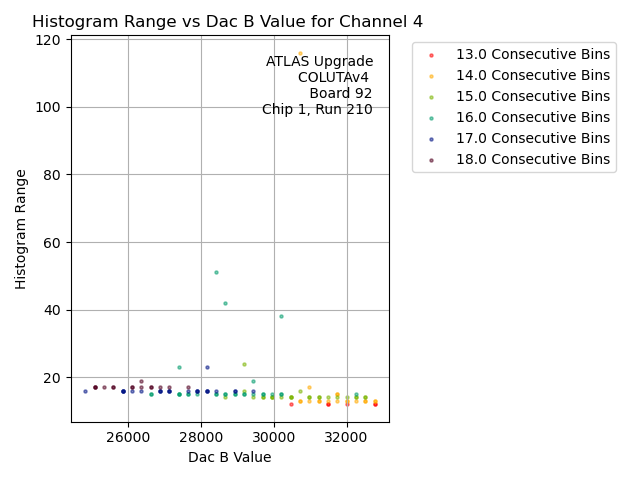

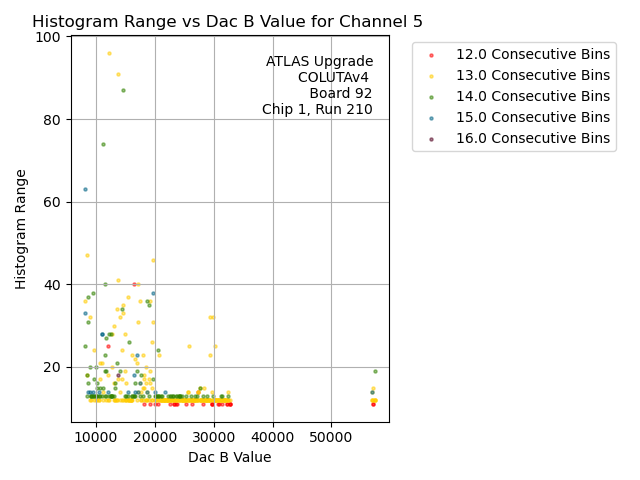

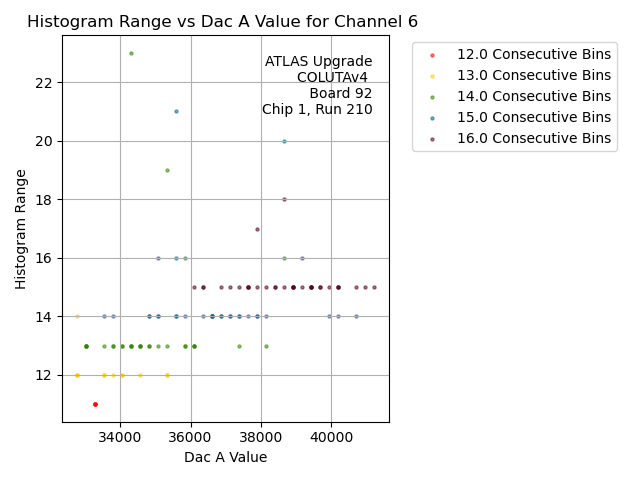

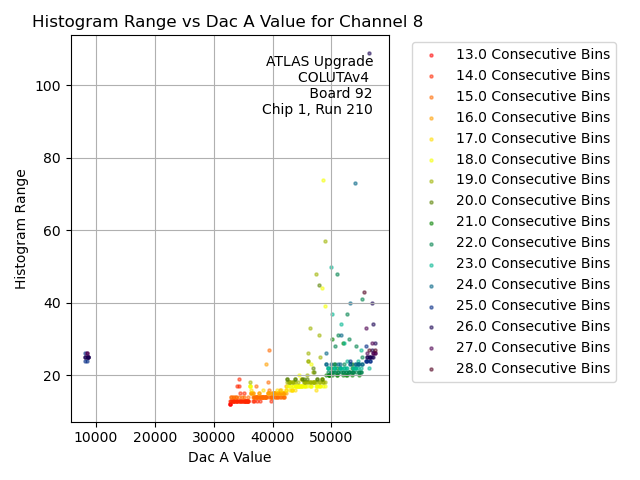

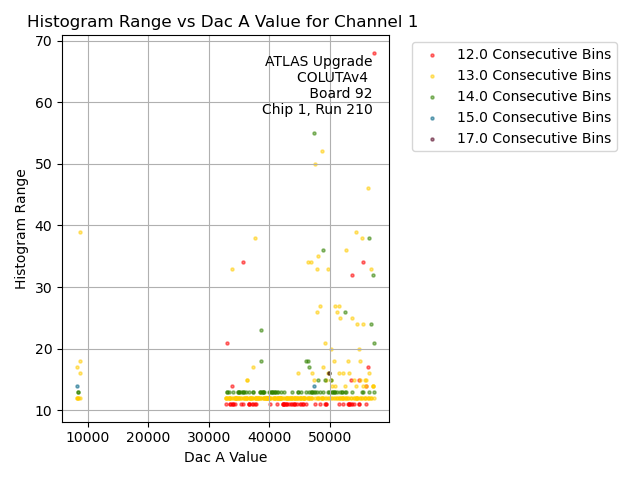

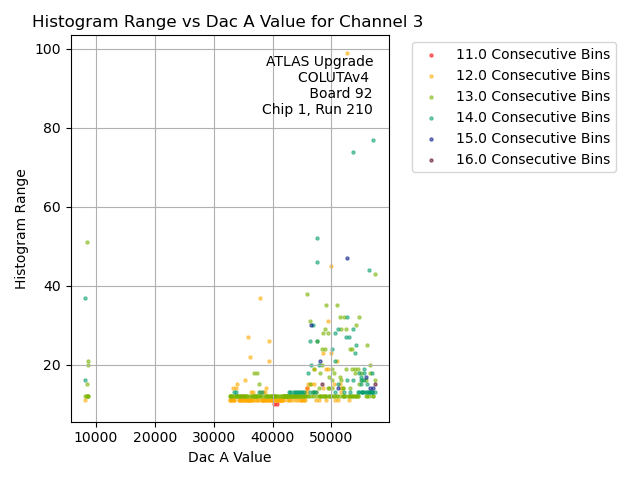

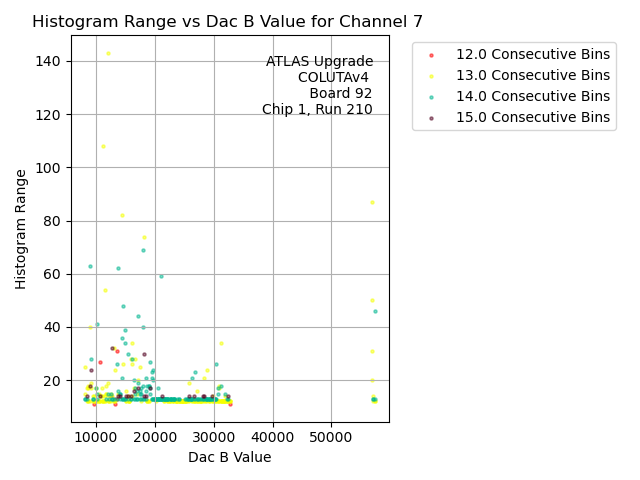

Channel No.Hist. Range vs. DAC A Code Hist. Range vs. DAC b Code
1
2
3
4
5
6
7
8


Channel No. 1
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
12.0 65 10 3.0
13.0 247 60 4.0
14.0 85 15 4.0
15.0 2 0 1.0
17.0 1 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 2
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
13.0 1 0 1.0
14.0 17 0 1.0
15.0 23 5 3.0
16.0 9 1 2.0
17.0 20 4 2.0
18.0 22 2 8.0
19.0 16 1 7.0
20.0 17 0 1.0
21.0 15 2 2.0
22.0 3 0 1.0
23.0 5 1 2.0
24.0 5 0 1.0
25.0 12 1 2.0
26.0 14 0 1.0
27.0 11 2 3.0
28.0 8 1 2.0
29.0 11 3 2.0
30.0 22 10 6.0
31.0 168 60 6.0
32.0 1 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 3
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
11.0 4 2 2.0
12.0 115 35 5.0
13.0 201 53 5.0
14.0 71 32 4.0
15.0 7 3 3.0
16.0 2 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 4
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
13.0 6 0 1.0
14.0 18 3 3.0
15.0 25 3 3.0
16.0 28 5 3.0
17.0 25 1 2.0
18.0 15 1 2.0
19.0 16 0 1.0
20.0 8 0 2.0
21.0 5 0 1.0
22.0 12 1 2.0
23.0 16 1 2.0
24.0 13 1 2.0
25.0 12 3 3.0
26.0 15 4 2.0
27.0 10 2 3.0
28.0 9 3 2.0
29.0 8 3 5.0
30.0 13 6 6.0
31.0 139 44 6.0
32.0 7 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 5
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
12.0 28 3 2.0
13.0 251 68 4.0
14.0 100 37 4.0
15.0 20 7 3.0
16.0 1 1 2.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 6
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
12.0 4 0 1.0
13.0 12 1 2.0
14.0 30 4 3.0
15.0 32 5 2.0
16.0 34 2 2.0
17.0 32 2 2.0
18.0 8 0 1.0
19.0 7 1 2.0
20.0 17 1 2.0
21.0 28 6 3.0
22.0 28 5 2.0
23.0 14 3 3.0
24.0 7 4 3.0
25.0 11 5 2.0
26.0 21 5 3.0
27.0 22 6 2.0
28.0 23 4 2.0
29.0 14 7 2.0
30.0 12 5 5.0
31.0 29 11 4.0
32.0 15 0 1.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 7
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
12.0 8 4 4.0
13.0 194 57 4.0
14.0 175 54 4.0
15.0 23 6 3.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
Channel No. 8
Number of consecutive binsTotal Number of histogramsNumber of Flagged SEU'sNumber of Islands
13.0 3 0 1.0
14.0 44 5 2.0
15.0 60 5 2.0
16.0 35 2 2.0
17.0 13 1 2.0
18.0 44 6 3.0
19.0 42 10 3.0
20.0 15 3 3.0
21.0 20 7 2.0
22.0 33 10 2.0
23.0 29 7 2.0
24.0 18 4 2.0
25.0 10 2 2.0
26.0 19 5 4.0
27.0 9 2 2.0
28.0 3 1 2.0
29.0 3 1 3.0
**Counts of lone bin and large width SEUs do not include overflow or histograms with repeated bins
