algo_fem_decoder_base Class Reference
[Algorithm, Algorithm]

Abastract base class for decoding FEM module data stream. More...

#include <algo_fem_decoder_base.hh>

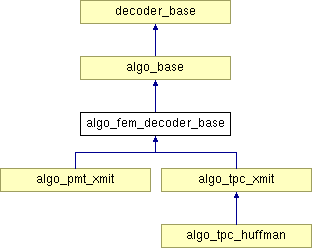

Inheritance diagram for algo_fem_decoder_base:


Public Member Functions
	algo_fem_decoder_base ()
	Default constructor.
virtual	~algo_fem_decoder_base ()
	Default destructor.
virtual bool	process_word (const PMT::word_t word)
	Implementation of algo_base::process_word.
virtual PMT::PMT_WORD	get_word_class (const PMT::word_t word) const
	Implementation of algo_base::process_word.
virtual bool	check_event_quality ()
	Implementation of algo_base::check_event_quality.
virtual void	reset ()
	Override function to reset the instance.
PMT::word_t	round_diff (PMT::word_t ref_id, PMT::word_t subject_id, PMT::word_t diff) const
	A simple round-diff algorithm for binary words.
virtual bool	is_event_empty ()
	A simple method to inquire if the data storage buffer is currently empty or not.
virtual void	finalize ()
	Function called just after processing word.
void	set_debug_mode (bool doit)
	Run utility: set debug mode. Children class defines what-to-do in debug mode.
void	set_storage_ptr (storage_manager *storage)
	Expects a storage pointer to be provided from a parent class.
virtual void	set_backtrace_mode (size_t nwords=0)
	Run utility: set back-trace mode. One should provide number of words to be stored.
size_t	backtrace_mode () const
	Getter for backtrace mode (returns # words specified to store. 0=no backtrace).
void	backtrace () const
	Function to print out stored words in buffer for back-trace purpose.
void	set_verbosity (MSG::Level level)
	Setter for the verbosity level.
MSG::Level	get_verbosity () const
	Getter for the verbosity level.
const std::string	class_name () const
	Getter for the class name.
Protected Member Functions
virtual bool	store_event ()=0
	A method to store event-wise data.
virtual void	clear_event ()
	A method to clear event-wise data.
virtual bool	process_fem_header (const PMT::word_t word, PMT::word_t &last_word)
	A method to process FEM header word passed from process_word method.
virtual bool	decode_fem_header (const PMT::word_t *event_header)
	A method to decode fem header word passed from process_header.
virtual bool	process_event_header (const PMT::word_t word, PMT::word_t &last_word)=0
	TO BE IMPLEMENTED! A method to process event header word.
virtual bool	process_ch_word (const PMT::word_t word, PMT::word_t &last_word)=0
	TO BE IMPLEMENTED! A method to process channel word passed from process_word method.
virtual bool	process_fem_last_word (const PMT::word_t word, PMT::word_t &last_word)=0
	TO BE IMPLEMENTED! A method to process 32-bit end-of-fem word.
virtual bool	process_event_last_word (const PMT::word_t word, PMT::word_t &last_word)=0
	TO BE IMPLEMENTED! A method to process 32-bit end-of-event word.
virtual bool	add_huffman_adc (std::vector< UShort_t > &wf, size_t zero_count)
virtual void	init_checker_info ()
	Function to initialize checker information.
Protected Attributes
PMT::word_t	_event_header_words [FEM_HEADER_COUNT]
	Event header word holder.
PMT::word_t	_last_word
	Last word processed.
size_t	_event_header_count
	A counter for event header words.
bool	_search_for_next_event
	A run control boolean: skips any action till it finds the new event header.
InfoFEM_t	_header_info
bool	_debug_mode
	Debug mode boolean holder.
bool	_bt_mode
	Back-trace mode boolean holder.
storage_manager *	_storage
	Data storage pointer to be provided by a parent process.
PMT::word_t	_checksum
	data checksum
PMT::word_t	_nwords
	number of data word counts processed
std::deque< PMT::word_t >	_bt_words
	processed words to be stored event-wise for back-trace purpose
size_t	_bt_nwords
	user defined # of words to be temporarily stored in the buffer
bool	_bt_nwords_filled
	run utility boolean to keep a recored of filled buffer
char	_buf [200]
	char buffer for message manipulation
bool	_verbosity [MSG::MSG_TYPE_MAX]
	holder for enabled message levels
MSG::Level	_verbosity_level
	holder for specified verbosity level
std::string	_name
	class name holder
Static Protected Attributes
static const size_t	FEM_HEADER_COUNT = 6
	Number of event header words.
static const size_t	BEAM_REF_CHANNEL = 39
	Defines a reference channel for beamgate.
static const size_t	BEAM_NWORDS = 21
	Defines # of minimum words to identify beamgate event.
static const size_t	FRAME_WIDTH = 8192
	Defines # of ADC samples per readout frame.
Classes
struct	InfoFEM_t
	A local data holder struct for FEM header information. More...

Detailed Description

Abastract base class for decoding FEM module data stream.

It expects a stream of 32-bit words (ordered) to be fed into process_word method. This class takes care of decoding & grouping channel/event wise data & storing them.

This base class only implements the overall structure of decoding. It has two types of processing path: either event header or channel data word. The FEM header is common among TPC and PMT as they share the same FEM module. Channel data word is defined differently as data packet FPGA code is unique to each. Children class must implement channel-wise decoding methods.

Definition at line 34 of file algo_fem_decoder_base.hh.

Constructor & Destructor Documentation

algo_fem_decoder_base::algo_fem_decoder_base ( )

Default constructor.

Definition at line 7 of file algo_fem_decoder_base.cc.

References decoder_base::_name, and reset().

00008   : algo_base()
00009 //#################################################
00010 {
00011   _name = "algo_fem_decoder_base";
00012   reset();
00013 }

virtual algo_fem_decoder_base::~algo_fem_decoder_base ( ) [inline, virtual]

Default destructor.

Definition at line 74 of file algo_fem_decoder_base.hh.

00074 {};

Member Function Documentation

bool algo_fem_decoder_base::add_huffman_adc	(	std::vector< UShort_t > &	wf,
		size_t	zero_count
	)			`[protected, virtual]`

Definition at line 396 of file algo_fem_decoder_base.cc.

Referenced by algo_tpc_xmit::decode_ch_word().

00397 {
00398 //#################################################
00399
00400   bool status = true;
00401
00402   switch(zero_count){
00403
00404   case 0:
00405     wf.push_back( (*(wf.rbegin())) ); break;
00406
00407   case 1:
00408     wf.push_back( (*(wf.rbegin())) -1 ); break;
00409
00410   case 2:
00411     wf.push_back( (*(wf.rbegin())) +1 ); break;
00412
00413   case 3:
00414     wf.push_back( (*(wf.rbegin())) -2 ); break;
00415
00416   case 4:
00417     wf.push_back( (*(wf.rbegin())) +2 ); break;
00418
00419   case 5:
00420     wf.push_back( (*(wf.rbegin())) -3 ); break;
00421
00422   case 6:
00423     wf.push_back( (*(wf.rbegin())) +3 ); break;
00424
00425   default:
00426
00427     std::cout<<zero_count<<std::endl;
00428
00429     status = false;
00430   }
00431
00432   return status;
00433
00434 }

void algo_base::backtrace ( ) const [inline, inherited]

Function to print out stored words in buffer for back-trace purpose.

Definition at line 82 of file algo_base.hh.

References algo_base::_bt_words, Message::send(), and MSG::WARNING.

Referenced by algo_tpc_huffman::process_word(), and process_word().

00083   {
00084     Message::send(MSG::WARNING,__FUNCTION__,"Dumping a backtrace...");
00085     int ctr=1;
00086     for(std::deque<PMT::word_t>::const_iterator iter(_bt_words.begin());
00087     iter!=_bt_words.end();
00088     ++iter) {
00089       printf("%08x ",(*iter));
00090       if(ctr%8==0 && ctr) std::cout<<std::endl;
00091       ctr++;
00092     }
00093     std::cout<<std::endl<<std::endl;
00094   };

size_t algo_base::backtrace_mode ( ) const [inline, inherited]

Getter for backtrace mode (returns # words specified to store. 0=no backtrace).

Definition at line 71 of file algo_base.hh.

References algo_base::_bt_nwords.

00071 {return _bt_nwords;};

virtual bool algo_fem_decoder_base::check_event_quality ( ) [inline, virtual]

Implementation of algo_base::check_event_quality.

Reimplemented from algo_base.

Reimplemented in algo_pmt_xmit, and algo_tpc_xmit.

Definition at line 98 of file algo_fem_decoder_base.hh.

00098 {return true;};

const std::string decoder_base::class_name ( ) const [inline, inherited]

Getter for the class name.

Definition at line 46 of file decoder_base.hh.

References decoder_base::_name.

00046 {return _name;};

virtual void algo_fem_decoder_base::clear_event ( ) [inline, protected, virtual]

A method to clear event-wise data.

Reimplemented in algo_pmt_xmit, algo_tpc_huffman, and algo_tpc_xmit.

Definition at line 115 of file algo_fem_decoder_base.hh.

References _event_header_count, _header_info, and algo_fem_decoder_base::InfoFEM_t::clear_event().

Referenced by algo_tpc_xmit::clear_event(), algo_pmt_xmit::clear_event(), process_fem_header(), and process_word().

00115 {_event_header_count=0; _header_info.clear_event();};

bool algo_fem_decoder_base::decode_fem_header ( const PMT::word_t * event_header ) [protected, virtual]

A method to decode fem header word passed from process_header.

Definition at line 295 of file algo_fem_decoder_base.cc.

Referenced by algo_tpc_huffman::process_fem_header(), and process_fem_header().

00295                                                                           {
00296 //#################################################
00297
00298   bool status=true;
00299   //
00300   // Get event information
00301   //
00302
00303   // (1) check if the very first 16-bit word is as expected
00304   if(!( event_header[0] & 0xffff))
00305     Message::send(MSG::ERROR,"Unexpected first word in event headers!");
00306
00307   if(!status) return status;
00308
00309   // Initialize data holder
00310   _header_info.clear_event();
00311
00312   // (2) get module address ... lowest 5 of 12 bits
00313   _header_info.module_address = ( (event_header[0]>>16 & 0xfff)    & 0x1f);
00314
00315   // (3) get module ID number ... upper 7 bit of 12 bits
00316   _header_info.module_id      = ( (event_header[0]>>16 & 0xfff)>>5 & 0x7f);
00317
00318   // (4) get number of 16-bit words to be read in this event.
00319   // Lower 12 bits of two 16-bit words.
00320   // The very last "last word for channel info" is not included in this.
00321   // For later checking purpose, increment by 1.
00322   _header_info.nwords         = ( (((event_header[1]>>16) & 0xfff) + ((event_header[1] & 0xfff)<<12)));
00323
00324   // (5) get event ID
00325   // Lower 12 bits of two 16-bit words.
00326   _header_info.event_id       = ( (((event_header[2]>>16) & 0xfff) + ((event_header[2] & 0xfff)<<12)));
00327
00328   // (6) get frame ID
00329   // Lower 12 bits of two 16-bit words.
00330   _header_info.event_frame_id = ( (((event_header[3]>>16) & 0xfff) + ((event_header[3] & 0xfff)<<12)));
00331
00332   // (7) get checksum
00333   _header_info.checksum       = ( (((event_header[4]>>16) & 0xfff) + ((event_header[4] & 0xfff)<<12)));
00334
00335
00336 #ifdef INCLUDE_EXTRA_HEADER
00337   _header_info.trigger_frame_id  = ( ((event_header[5] & 0xfff)>>4 & 0xf) +
00338                      (((_header_info.event_frame_id)>>4)<<4));
00339
00340   // Correct for a roll over
00341   _header_info.trigger_frame_id  = round_diff(_header_info.event_frame_id, _header_info.trigger_frame_id, 0x7);
00342
00343   _header_info.trigger_timeslice = ((((event_header[5]>>16) & 0xf)<<8) + (event_header[5] & 0xff));
00344
00345 #endif
00346
00347   // Report if verbosity is set.
00348   if(_verbosity[MSG::INFO])
00349     {
00350       Message::send(MSG::INFO,Form("Module %d (ID=%d)", _header_info.module_address, _header_info.module_id));
00351       Message::send(MSG::INFO,Form("Event ID %d",_header_info.event_id));
00352       Message::send(MSG::INFO,Form("Frame ID %d",_header_info.event_frame_id));
00353       Message::send(MSG::INFO,Form("Number of Words = %d",_header_info.nwords));
00354       Message::send(MSG::INFO,Form("Checksum = %x", _header_info.checksum));
00355       Message::send(MSG::INFO,Form("Trigger Frame %d",_header_info.trigger_frame_id));
00356       Message::send(MSG::INFO,Form("Trigger Sample %d",_header_info.trigger_timeslice));
00357     }
00358
00359   _checksum=0;
00360
00361   _nwords=0;
00362
00363   return status;
00364 }

virtual void algo_base::finalize ( ) [inline, virtual, inherited]

Function called just after processing word.

Definition at line 52 of file algo_base.hh.

00052 {};

MSG::Level decoder_base::get_verbosity ( ) const [inline, inherited]

Getter for the verbosity level.

Definition at line 43 of file decoder_base.hh.

References decoder_base::_verbosity_level.

00043 {return _verbosity_level;};

virtual PMT::PMT_WORD algo_fem_decoder_base::get_word_class ( const PMT::word_t word ) const [inline, virtual]

Implementation of algo_base::process_word.

Reimplemented from algo_base.

Reimplemented in algo_pmt_xmit, algo_tpc_huffman, and algo_tpc_xmit.

Definition at line 80 of file algo_fem_decoder_base.hh.

References PMT::CHANNEL_HEADER, PMT::CHANNEL_LAST_WORD, PMT::CHANNEL_WORD, PMT::FEM_FIRST_WORD, PMT::FEM_HEADER, PMT::FEM_LAST_WORD, and PMT::UNDEFINED_WORD.

Referenced by process_fem_header(), and process_word().

00080                                                                         {
00081     if     ( (word & 0xf000) == 0xf000 )
00082       return PMT::FEM_HEADER;
00083     else if( (word & 0xf000) == 0x4000 )
00084       return PMT::FEM_FIRST_WORD;
00085     else if( (word & 0xf000) == 0x9000 )
00086       return PMT::CHANNEL_HEADER;
00087     else if( (word & 0xf000) == 0xa000 )
00088       return PMT::CHANNEL_WORD;
00089     else if( (word & 0xf000) == 0xb000 )
00090       return PMT::CHANNEL_LAST_WORD;
00091     else if( (word & 0xf000) == 0xc000 )
00092       return PMT::FEM_LAST_WORD;
00093     else
00094       return PMT::UNDEFINED_WORD;
00095   }

void algo_base::init_checker_info ( ) [protected, virtual, inherited]

Function to initialize checker information.

Definition at line 6 of file algo_base.cc.

References algo_base::_checksum, and algo_base::_nwords.

Referenced by algo_slow_readout_decoder::init_event_info(), algo_trig_decoder::reset(), and algo_base::reset().

00007 {
00008   _checksum=0x0;
00009   _nwords=0;
00010 }

virtual bool algo_fem_decoder_base::is_event_empty ( ) [inline, virtual]

A simple method to inquire if the data storage buffer is currently empty or not.

Implements algo_base.

Definition at line 107 of file algo_fem_decoder_base.hh.

References _header_info, algo_fem_decoder_base::InfoFEM_t::event_id, and PMT::INVALID_WORD.

00107 { return (_header_info.event_id == PMT::INVALID_WORD);};

virtual bool algo_fem_decoder_base::process_ch_word	(	const PMT::word_t	word,
		PMT::word_t &	last_word
	)			`[protected, pure virtual]`

TO BE IMPLEMENTED! A method to process channel word passed from process_word method.

Channel word processing must be implemented in the children

Implemented in algo_pmt_xmit, algo_tpc_huffman, and algo_tpc_xmit.

Referenced by process_word().

virtual bool algo_fem_decoder_base::process_event_header	(	const PMT::word_t	word,
		PMT::word_t &	last_word
	)			`[protected, pure virtual]`

TO BE IMPLEMENTED! A method to process event header word.

Implemented in algo_pmt_xmit, algo_tpc_huffman, and algo_tpc_xmit.

Referenced by process_word().

virtual bool algo_fem_decoder_base::process_event_last_word	(	const PMT::word_t	word,
		PMT::word_t &	last_word
	)			`[protected, pure virtual]`

TO BE IMPLEMENTED! A method to process 32-bit end-of-event word.

Implemented in algo_pmt_xmit, algo_tpc_huffman, and algo_tpc_xmit.

Referenced by process_word().

bool algo_fem_decoder_base::process_fem_header	(	const PMT::word_t	word,
		PMT::word_t &	last_word
	)			`[protected, virtual]`

A method to process FEM header word passed from process_word method.

Reimplemented in algo_tpc_huffman.

Definition at line 185 of file algo_fem_decoder_base.cc.

References decoder_base::_buf, algo_base::_debug_mode, _event_header_count, _event_header_words, decoder_base::_verbosity, PMT::CHANNEL_HEADER, PMT::CHANNEL_LAST_WORD, PMT::CHANNEL_WORD, clear_event(), MSG::DEBUG, decode_fem_header(), MSG::ERROR, PMT::EVENT_HEADER, PMT::EVENT_LAST_WORD, PMT::FEM_FIRST_WORD, PMT::FEM_HEADER, FEM_HEADER_COUNT, PMT::FEM_LAST_WORD, get_word_class(), Message::send(), store_event(), PMT::UNDEFINED_WORD, and MSG::WARNING.

Referenced by process_word().

00185                                                                                          {
00186 //#################################################
00187
00188   bool status=true;
00189   //
00190   // Check if this is an event header word or not
00191   //
00192   PMT::PMT_WORD word_class=get_word_class(word);
00193   if(_verbosity[MSG::DEBUG]){
00194     sprintf(_buf,"Processing Header: %x",word);
00195     Message::send(MSG::DEBUG,__FUNCTION__,_buf);
00196   }
00197
00198
00199   if( word_class != PMT::FEM_HEADER) {
00200
00201     Message::send(MSG::ERROR,__FUNCTION__,
00202           Form("Encountered unexpected word while an event header search: %x (word type=%d)",
00203                word,word_class) );
00204     status = false;
00205
00206   }else if(get_word_class(word>>16)!=PMT::FEM_HEADER) {
00207
00208     // Event header should come as a 32-bit word which is a pair of two 16-bit header words.
00209     // The first 16-bit is already checked by this point. Check the second part.
00210
00211     Message::send(MSG::ERROR,__FUNCTION__,Form("Found an odd event header word: %x",word));
00212
00213     status = false;
00214
00215   }
00216
00217   if(status) {
00218
00219     //
00220     // Check the last word type
00221     //
00222     switch(get_word_class(last_word)){
00223     case PMT::EVENT_HEADER:
00224     case PMT::FEM_HEADER:
00225     case PMT::FEM_LAST_WORD:
00226       // Expected. Nothing to do
00227       break;
00228     case PMT::FEM_FIRST_WORD:
00229     case PMT::CHANNEL_HEADER:
00230     case PMT::CHANNEL_WORD:
00231     case PMT::UNDEFINED_WORD:
00232     case PMT::EVENT_LAST_WORD:
00233       // ERROR
00234       Message::send(MSG::ERROR,__FUNCTION__,
00235             Form("Unexpected word while FEM_HEADER processing: %x (previous word=%x)",word,last_word));
00236       status = false;
00237       break;
00238     case PMT::CHANNEL_LAST_WORD:
00239       // Store data
00240       status = store_event();
00241       if(_debug_mode) {
00242     // We have to handle this case separately from a uniifed handling @ process_word
00243     // Because "this" header word is still good. Make a warning to a user.
00244
00245     Message::send(MSG::WARNING,__FUNCTION__,"DEBUG MODE => Continue to the next event...\n");
00246
00247     clear_event();
00248
00249     status = true;
00250       }
00251       break;
00252     }
00253
00254     if(status){
00255
00256       // Process the subject word as an event header
00257       if (_event_header_count<FEM_HEADER_COUNT) {
00258
00259     // Store header words
00260     _event_header_words[_event_header_count]=word;
00261     _event_header_count++;
00262
00263     // If stored number of header words reached to the expected number, decode.
00264     if(_event_header_count==FEM_HEADER_COUNT) {
00265
00266       // Decode header words
00267       status = decode_fem_header(_event_header_words);
00268
00269     }
00270       }else{
00271
00272     // Raise error if a header word count > set constant (should not happen)
00273     Message::send(MSG::ERROR,__FUNCTION__,
00274               Form("Logic error: event header word counter not working! (%zu/%zu)",
00275                _event_header_count,FEM_HEADER_COUNT));
00276     status=false;
00277       }
00278     }
00279   }
00280
00281   if(!status){
00282
00283     Message::send(MSG::ERROR,__FUNCTION__,
00284           Form("Failed processing the word %x (last word %x) as an event header!",word,last_word));
00285
00286   }
00287
00288   last_word = word;
00289   return status;
00290
00291 }

virtual bool algo_fem_decoder_base::process_fem_last_word	(	const PMT::word_t	word,
		PMT::word_t &	last_word
	)			`[protected, pure virtual]`

TO BE IMPLEMENTED! A method to process 32-bit end-of-fem word.

Implemented in algo_pmt_xmit, algo_tpc_huffman, and algo_tpc_xmit.

Referenced by process_word().

bool algo_fem_decoder_base::process_word ( const PMT::word_t word ) [virtual]

Implementation of algo_base::process_word.

Implements algo_base.

Reimplemented in algo_tpc_huffman.

Definition at line 36 of file algo_fem_decoder_base.cc.

References algo_base::_bt_mode, algo_base::_bt_nwords, algo_base::_bt_nwords_filled, algo_base::_bt_words, algo_base::_debug_mode, _header_info, _last_word, _search_for_next_event, decoder_base::_verbosity, algo_base::backtrace(), PMT::CHANNEL_HEADER, PMT::CHANNEL_LAST_WORD, PMT::CHANNEL_WORD, clear_event(), MSG::ERROR, PMT::EVENT_HEADER, algo_fem_decoder_base::InfoFEM_t::event_id, PMT::EVENT_LAST_WORD, PMT::FEM_FIRST_WORD, PMT::FEM_HEADER, PMT::FEM_LAST_WORD, get_word_class(), MSG::INFO, PMT::INVALID_WORD, process_ch_word(), process_event_header(), process_event_last_word(), process_fem_header(), process_fem_last_word(), Message::send(), PMT::UNDEFINED_WORD, and MSG::WARNING.

00038 {
00039   //std::cout<<Form("%x",word)<<std::endl;
00040   //
00041   // A simple function to call other members depending on the status.
00042   // Let other members to deal with expected/unexpected case
00043   //
00044
00045   // If in back_trace mode, add this word in record
00046   if(_bt_mode){
00047
00048     // Check if buffer is filled
00049     if(!_bt_nwords_filled)
00050       _bt_nwords_filled = (_bt_nwords == _bt_words.size());
00051
00052     // If filled, remove the oldest element
00053     if(_bt_nwords_filled)
00054       _bt_words.pop_front();
00055
00056     // Add new word
00057     _bt_words.push_back(word);
00058
00059   }
00060
00061   bool status=true;
00062   PMT::word_t word_class=get_word_class(word);
00063   PMT::word_t last_word_class=get_word_class(_last_word);
00064   //
00065   // Skip this word if a boolean is set to skip to the next event header
00066   //
00067   if( _search_for_next_event &&
00068       word_class == PMT::FEM_HEADER &&
00069       last_word_class != PMT::FEM_HEADER )
00070
00071     _search_for_next_event = false;
00072
00073
00074   if( _search_for_next_event ) {
00075
00076     if(_verbosity[MSG::INFO])
00077
00078       Message::send(MSG::INFO,__FUNCTION__,
00079             Form("Skipping a word (%x, previous=%x) to the next event..",word,_last_word));
00080
00081     _last_word = PMT::INVALID_WORD;
00082
00083     return true;
00084   }
00085
00086   switch(word_class){
00087
00088   case PMT::EVENT_HEADER:
00089
00090     // (1) Call process_event_header()
00091     status = process_event_header(word,_last_word);
00092     break;
00093
00094   case PMT::FEM_HEADER:
00095
00096     // (1) Check if the last word was EVENT_HEADER, FEM_HEADER, or EVENT_LAST_WORD
00097     //     - If EVENT_HEADER, continue to (2)
00098     //     - If FEM_HEADER,   continue to (2)
00099     //     - If EVENT_LAST_WORD, attempt to store & continue to (2)
00100     // (2) Call process_fem_header()
00101     status = process_fem_header(word,_last_word);
00102     break;
00103
00104   case PMT::FEM_FIRST_WORD:
00105   case PMT::CHANNEL_HEADER:
00106   case PMT::CHANNEL_WORD:
00107   case PMT::CHANNEL_LAST_WORD:
00108   case PMT::FEM_LAST_WORD:
00109     {
00110       // (1) Call process_ch_word()
00111       //     - Children class should implement what should be checked in correlation to the last word.
00112
00113       // Split two 16 bit words
00114       PMT::word_t first_word  = (word & 0xffff);
00115       PMT::word_t second_word = (word >> 16);
00116
00117       if(status) status = process_ch_word(first_word,_last_word);
00118
00119       // Check if the left 16-bit word is also the relevant type or not
00120       if(status){
00121
00122     switch(get_word_class(second_word)){
00123     case PMT::FEM_FIRST_WORD:
00124     case PMT::CHANNEL_HEADER:
00125     case PMT::CHANNEL_WORD:
00126     case PMT::CHANNEL_LAST_WORD:
00127       status = process_ch_word(second_word,_last_word);
00128       break;
00129     case PMT::FEM_LAST_WORD:
00130       status = process_fem_last_word(second_word,_last_word);
00131       break;
00132     default:
00133       status = false;
00134       Message::send(MSG::ERROR,__FUNCTION__,
00135             Form("Unexpected word (%x) while processing channel data (previous=%x)",second_word,first_word));
00136     }
00137
00138       }
00139       break;
00140     }
00141   case PMT::EVENT_LAST_WORD:
00142     // (1) Call process_event_last_word()
00143     status = process_event_last_word(word,_last_word);
00144     break;
00145
00146   case PMT::UNDEFINED_WORD:
00147
00148
00149     if(word != 0x0 || (last_word_class != PMT::EVENT_LAST_WORD && last_word_class != PMT::FEM_LAST_WORD) ) {
00150
00151       Message::send(MSG::ERROR,__FUNCTION__,
00152             Form("Undefined word: %x (previous = %x)",word,_last_word));
00153
00154       status = false;
00155     }else if(_verbosity[MSG::INFO]){
00156
00157       // This happens sometimes according to Chi 10/01/13
00158       Message::send(MSG::INFO,__FUNCTION__,
00159             Form("Padding of undefined word (tolerated): %x (previous=%x)",word,_last_word));
00160     }
00161     break;
00162   }
00163
00164   if(!status){
00165
00166     backtrace();
00167
00168     if(_debug_mode) {
00169
00170       if(_header_info.event_id>0)
00171
00172     Message::send(MSG::WARNING,__FUNCTION__,Form("Failed decoding event %d ...",_header_info.event_id));
00173
00174       Message::send(MSG::WARNING,__FUNCTION__,"DEBUG MODE => Continue to the next event...\n");
00175
00176       _search_for_next_event = true;
00177       clear_event();
00178     }
00179   }
00180
00181   return status;
00182 }

void algo_fem_decoder_base::reset ( ) [virtual]

Override function to reset the instance.

Reimplemented from algo_base.

Reimplemented in algo_pmt_xmit, algo_tpc_huffman, and algo_tpc_xmit.

Definition at line 17 of file algo_fem_decoder_base.cc.

References _event_header_count, _event_header_words, _last_word, _search_for_next_event, FEM_HEADER_COUNT, PMT::INVALID_WORD, and algo_base::reset().

Referenced by algo_fem_decoder_base(), algo_tpc_xmit::reset(), and algo_pmt_xmit::reset().

00017                                   {
00018 //#################################################
00019
00020   algo_base::reset();
00021
00022   _last_word             = PMT::INVALID_WORD;
00023
00024   _event_header_count    = 0;
00025
00026   _search_for_next_event = false;
00027
00028   for(size_t i=0; i< FEM_HEADER_COUNT; i++)
00029
00030     _event_header_words[i] = 0;
00031
00032 }

PMT::word_t algo_fem_decoder_base::round_diff	(	PMT::word_t	ref_id,
		PMT::word_t	subject_id,
		PMT::word_t	diff
	)			const

A simple round-diff algorithm for binary words.

Definition at line 368 of file algo_fem_decoder_base.cc.

Referenced by algo_pmt_xmit::decode_ch_word(), and decode_fem_header().

00372 {
00373   // Used to recover pmt/trigger frame id from roll over effect.
00374   // One can test this by simply calling this function.
00375   // For instance, to test the behavior for a roll-over of 0x7 ...
00376   //
00377   // > root
00378   // root[0] gSystem->Load("libDecoder")
00379   // root[1] algo_slow_readout_decoder k
00380   // root [6] k.get_pmt_frame(583,584,0x7)
00381   // (const unsigned int)584
00382   // root [7] k.get_pmt_frame(584,583,0x7)
00383   // (const unsigned int)583
00384   //
00385   // I think this implementation works. ... Aug. 12 2013
00386   if( (subject_id > ref_id) && ((subject_id-ref_id) >= diff) )
00387     return subject_id - (diff+1);
00388   else if( (ref_id > subject_id) && ((ref_id-subject_id) >= diff) )
00389     return subject_id + (diff+1);
00390   else
00391     return subject_id;
00392
00393 }

virtual void algo_base::set_backtrace_mode ( size_t nwords = 0 ) [inline, virtual, inherited]

Run utility: set back-trace mode. One should provide number of words to be stored.

Definition at line 65 of file algo_base.hh.

References algo_base::_bt_mode, and algo_base::_bt_nwords.

Referenced by main().

00065                                                   {
00066     _bt_nwords=nwords;
00067     _bt_mode=(bool)(nwords);
00068   };

void algo_base::set_debug_mode ( bool doit ) [inline, inherited]

Run utility: set debug mode. Children class defines what-to-do in debug mode.

Definition at line 59 of file algo_base.hh.

References algo_base::_debug_mode.

Referenced by decoder_manager::initialize().

00059 {_debug_mode=doit;};

void algo_base::set_storage_ptr ( storage_manager * storage ) [inline, inherited]

Expects a storage pointer to be provided from a parent class.

Definition at line 62 of file algo_base.hh.

References algo_base::_storage.

Referenced by decoder_manager::initialize().

00062 {_storage=storage;};

void decoder_base::set_verbosity ( MSG::Level level ) [inherited]

Setter for the verbosity level.

Reimplemented in ana_processor.

Definition at line 11 of file decoder_base.cc.

References decoder_base::_verbosity, decoder_base::_verbosity_level, MSG::DEBUG, MSG::ERROR, MSG::INFO, MSG::MSG_TYPE_MAX, MSG::NORMAL, and MSG::WARNING.

Referenced by algo_slow_readout_decoder::algo_slow_readout_decoder(), compare_content(), decoder_base::decoder_base(), decoder_manager::decoder_manager(), decoder_manager::initialize(), main(), xmit_event_search::run(), bin_word_search::run(), and ana_processor::set_verbosity().

00011                                               {
00012
00013   _verbosity_level=level;
00014
00015   for(size_t i=(size_t)(MSG::DEBUG); i<(size_t)(MSG::MSG_TYPE_MAX); ++i)
00016     _verbosity[i]=false;
00017
00018   switch(level){
00019   case MSG::DEBUG:
00020     _verbosity[MSG::DEBUG]=true;
00021   case MSG::INFO:
00022     _verbosity[MSG::INFO]=true;
00023   case MSG::NORMAL:
00024     _verbosity[MSG::NORMAL]=true;
00025   case MSG::WARNING:
00026     _verbosity[MSG::WARNING]=true;
00027   case MSG::ERROR:
00028     _verbosity[MSG::ERROR]=true;
00029   case MSG::MSG_TYPE_MAX:
00030     break;
00031   }
00032
00033 }
