#include <ana_base.hh>

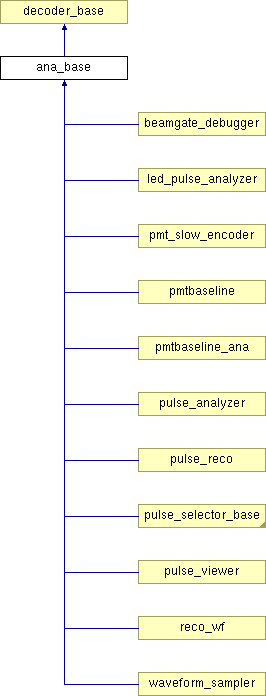

Inheritance diagram for ana_base:
Public Member Functions | |
| ana_base () | |
| Default constructor. | |
| virtual | ~ana_base () |
| Default destructor. | |
| virtual bool | initialize ()=0 |
| Initialization method to be called before analyze any data. | |
| virtual bool | analyze (storage_manager *data)=0 |
| Analyze a data event-by-event. | |
| virtual bool | finalize ()=0 |
| Finalize method to be called after all events processed. | |
| void | set_output_file (TFile *fout) |
| A setter for analysis output file poitner. | |
| void | set_verbosity (MSG::Level level) |
| Setter for the verbosity level. | |
| MSG::Level | get_verbosity () const |
| Getter for the verbosity level. | |
| const std::string | class_name () const |
| Getter for the class name. | |
Protected Attributes | |
| TFile * | _fout |
| Analysis output file pointer. | |
| char | _buf [200] |
| char buffer for message manipulation | |
| bool | _verbosity [MSG::MSG_TYPE_MAX] |
| holder for enabled message levels | |
| MSG::Level | _verbosity_level |
| holder for specified verbosity level | |
| std::string | _name |
| class name holder | |
Definition at line 26 of file ana_base.hh.
| ana_base::ana_base | ( | ) | [inline] |
Default constructor.
Definition at line 31 of file ana_base.hh.
References _fout, and decoder_base::_name.
| virtual ana_base::~ana_base | ( | ) | [inline, virtual] |
| virtual bool ana_base::analyze | ( | storage_manager * | data | ) | [pure virtual] |
Analyze a data event-by-event.
Implemented in pmt_slow_encoder, pulse_reco, beamgate_debugger, led_pulse_analyzer, led_pulse_selector, pmtbaseline, pmtbaseline_ana, pulse_analyzer, pulse_selector_simple, pulse_viewer, reco_wf, and waveform_sampler.
Referenced by waveform_sampler::analyze().
| const std::string decoder_base::class_name | ( | ) | const [inline, inherited] |
Getter for the class name.
Definition at line 46 of file decoder_base.hh.
References decoder_base::_name.
00046 {return _name;};
| virtual bool ana_base::finalize | ( | ) | [pure virtual] |
Finalize method to be called after all events processed.
Implemented in pmt_slow_encoder, pulse_reco, beamgate_debugger, led_pulse_analyzer, led_pulse_selector, pmtbaseline, pmtbaseline_ana, pulse_analyzer, pulse_selector_simple, pulse_viewer, reco_wf, and waveform_sampler.
| MSG::Level decoder_base::get_verbosity | ( | ) | const [inline, inherited] |
Getter for the verbosity level.
Definition at line 43 of file decoder_base.hh.
References decoder_base::_verbosity_level.
00043 {return _verbosity_level;};
| virtual bool ana_base::initialize | ( | ) | [pure virtual] |
Initialization method to be called before analyze any data.
Implemented in pmt_slow_encoder, pulse_reco, beamgate_debugger, led_pulse_analyzer, led_pulse_selector, pmtbaseline, pmtbaseline_ana, pulse_analyzer, pulse_selector_simple, pulse_viewer, reco_wf, and waveform_sampler.
| void ana_base::set_output_file | ( | TFile * | fout | ) | [inline] |
A setter for analysis output file poitner.
Definition at line 46 of file ana_base.hh.
References _fout.
00046 {_fout=fout;};
| void decoder_base::set_verbosity | ( | MSG::Level | level | ) | [inherited] |
Setter for the verbosity level.
Reimplemented in ana_processor.
Definition at line 11 of file decoder_base.cc.
References decoder_base::_verbosity, decoder_base::_verbosity_level, MSG::DEBUG, MSG::ERROR, MSG::INFO, MSG::MSG_TYPE_MAX, MSG::NORMAL, and MSG::WARNING.
Referenced by algo_slow_readout_decoder::algo_slow_readout_decoder(), compare_content(), decoder_base::decoder_base(), decoder_manager::decoder_manager(), decoder_manager::initialize(), main(), xmit_event_search::run(), bin_word_search::run(), and ana_processor::set_verbosity().
00011 { 00012 00013 _verbosity_level=level; 00014 00015 for(size_t i=(size_t)(MSG::DEBUG); i<(size_t)(MSG::MSG_TYPE_MAX); ++i) 00016 _verbosity[i]=false; 00017 00018 switch(level){ 00019 case MSG::DEBUG: 00020 _verbosity[MSG::DEBUG]=true; 00021 case MSG::INFO: 00022 _verbosity[MSG::INFO]=true; 00023 case MSG::NORMAL: 00024 _verbosity[MSG::NORMAL]=true; 00025 case MSG::WARNING: 00026 _verbosity[MSG::WARNING]=true; 00027 case MSG::ERROR: 00028 _verbosity[MSG::ERROR]=true; 00029 case MSG::MSG_TYPE_MAX: 00030 break; 00031 } 00032 00033 }
char decoder_base::_buf[200] [protected, inherited] |
char buffer for message manipulation
Definition at line 46 of file decoder_base.hh.
Referenced by reco_wf::analyze(), pulse_viewer::analyze(), algo_slow_readout_decoder::check_event_quality(), storage_manager::close(), bin_io_handler::close(), decoder_manager::decode(), algo_slow_readout_decoder::decode_ch_word(), algo_pmt_xmit::decode_ch_word(), algo_slow_readout_decoder::decode_event_header(), pulse_viewer::get_waveform(), ana_processor::initialize(), pulse_viewer::next_pulse(), storage_manager::open(), bin_io_handler::open(), storage_manager::prepare_tree(), pulse_viewer::previous_pulse(), algo_slow_readout_decoder::print_adc_values(), algo_tpc_xmit::process_ch_word(), algo_slow_readout_decoder::process_ch_word(), algo_pmt_xmit::process_ch_word(), algo_fem_decoder_base::process_fem_header(), algo_xmit_decoder::process_header(), algo_slow_readout_decoder::process_header(), algo_slow_readout_decoder::process_word(), bin_io_handler::read_multi_word(), bin_io_handler::read_word(), and ana_processor::run().
TFile* ana_base::_fout [protected] |
Analysis output file pointer.
Definition at line 46 of file ana_base.hh.
Referenced by ana_base(), waveform_sampler::finalize(), pulse_reco::finalize(), pulse_analyzer::finalize(), pmtbaseline_ana::finalize(), pmtbaseline::finalize(), led_pulse_analyzer::finalize(), beamgate_debugger::finalize(), pulse_analyzer::initialize(), pmt_slow_encoder::pmt_slow_encoder(), pmtbaseline::pmtbaseline(), pmtbaseline_ana::pmtbaseline_ana(), pulse_selector_base::pulse_selector_base(), pulse_selector_simple::pulse_selector_simple(), waveform_sampler::sample_waveform(), set_output_file(), and waveform_sampler::waveform_sampler().
std::string decoder_base::_name [protected, inherited] |
class name holder
Definition at line 53 of file decoder_base.hh.
Referenced by algo_base::algo_base(), algo_fem_decoder_base::algo_fem_decoder_base(), algo_fixed_window::algo_fixed_window(), algo_slow_readout_decoder::algo_slow_readout_decoder(), algo_threshold::algo_threshold(), algo_tpc_huffman::algo_tpc_huffman(), algo_trig_decoder::algo_trig_decoder(), ana_base(), ana_processor::ana_processor(), beamgate_debugger::beamgate_debugger(), bin_io_handler::bin_io_handler(), decoder_base::class_name(), led_pulse_analyzer::led_pulse_analyzer(), led_pulse_selector::led_pulse_selector(), pmt_slow_encoder::pmt_slow_encoder(), pmtbaseline::pmtbaseline(), pmtbaseline_ana::pmtbaseline_ana(), preco_algo_base::preco_algo_base(), pulse_analyzer::pulse_analyzer(), pulse_reco::pulse_reco(), pulse_selector_base::pulse_selector_base(), pulse_selector_simple::pulse_selector_simple(), pulse_viewer::pulse_viewer(), reco_wf::reco_wf(), storage_manager::storage_manager(), and waveform_sampler::waveform_sampler().
bool decoder_base::_verbosity[MSG::MSG_TYPE_MAX] [protected, inherited] |
holder for enabled message levels
Definition at line 51 of file decoder_base.hh.
Referenced by reco_wf::analyze(), algo_slow_readout_decoder::check_event_quality(), storage_manager::close(), decoder_manager::decode(), algo_slow_readout_decoder::decode_ch_word(), algo_pmt_xmit::decode_ch_word(), algo_slow_readout_decoder::decode_event_header(), algo_fem_decoder_base::decode_fem_header(), algo_trig_decoder::decode_trigger_words(), decoder_manager::finalize(), beamgate_debugger::finalize(), ana_processor::finalize(), decoder_manager::initialize(), beamgate_debugger::initialize(), ana_processor::initialize(), storage_manager::open(), beamgate_debugger::prepare_histo(), storage_manager::prepare_tree(), algo_tpc_xmit::process_ch_word(), algo_tpc_huffman::process_ch_word(), algo_slow_readout_decoder::process_ch_word(), algo_pmt_xmit::process_ch_word(), algo_tpc_xmit::process_event_last_word(), algo_pmt_xmit::process_event_last_word(), algo_fem_decoder_base::process_fem_header(), algo_pmt_xmit::process_fem_last_word(), algo_xmit_decoder::process_header(), algo_slow_readout_decoder::process_header(), algo_fem_decoder_base::process_word(), bin_io_handler::read_multi_word(), storage_manager::reset(), beamgate_debugger::reset(), ana_processor::reset(), decoder_manager::run(), ana_processor::run(), decoder_base::set_verbosity(), algo_tpc_xmit::store_event(), and algo_pmt_xmit::store_event().
MSG::Level decoder_base::_verbosity_level [protected, inherited] |
holder for specified verbosity level
Definition at line 52 of file decoder_base.hh.
Referenced by pulse_viewer::analyze(), decoder_base::get_verbosity(), pulse_viewer::initialize(), decoder_manager::initialize(), ana_processor::initialize(), bin_io_handler::read_multi_word(), bin_io_handler::read_word(), and decoder_base::set_verbosity().
