DØ Run 2b L1Cal

Design Work at Columbia

Index

	TAB	GAB	VME/SCL	Backplane
Pictures	Fully populated TAB/GAB crate
	02-Dec-04	02-Dec-04	02-Dec-04
Diagrams
	blk diags (some out of date)			23-May-05 11-May-05

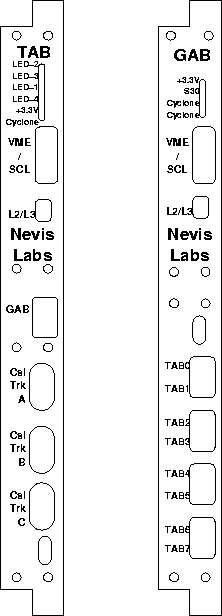

Faceplates
	03-Aug-05
Schematics & Layouts	20-May-04 sch	20-May-04 sch	ver.5 sch ver.2 sch
	20-May-04 pcb	20-May-04 pcb	ver.5 pcb ver.2 pcb	14-Oct-04 pcb
	pdf files
Parts	28-Jan-05	28-Jan-05	01-Apr-03	12-May-04
Specs	partial collection of spec sheets

Older Cards

• Channel-Link Test Card Photo

Firmware Versioning Conventions & Version Log
Block Diagrams (25-Aug-05)
TAB	~ban/altera/designs/D0/TAB/
	10-Aug-05	v1.3	chips 0-9	9eta9phi
	10-Oct-05	v1.6	chip 10	globe4_vhdl
	20-Nov-03		Cyclone	tab_cyclone
	Archive
GAB	/a/work/karthur/evans/l1cal/firmware/GAB/
	20-Jul-05	v1.0	S30	gab_s30/050720_v1.0 (or here)
	26-May-04		LVDS Rec	gab_lvds_rec_s10/040526
	01-Apr-04		Cyclone	gab_cyclone/040401
	Archive
VME/SCL	/a/work/karthur/evans/l1cal/firmware/VME-SCL/
	05-Aug-05	v3	SCL	scl/050805_v3
	06-Jun-03		VME Bus	vmebus/030606
	01-Aug-03		VME Serial	vmeser/030801
	Archive

Cabling

1. VME/SCL to TAB & GAB
2. ADF-to-TAB cable mapping
   • Cable and Connector Spec's
   • Cabling Diagrams
3. TAB to GAB Data Transmission
4. GAB to TFW Cabling

TAB/GAB Crate Power Supply

1. Power usage in the TAB and GAB
2. Vicor Megapac Power Supplies
• Megapac EL Design Guide
3. MP2-76xx-EL modules used in the TAB/GAB system

1. TAB/GAB Memory Mapping and Control Commands
   • Memory Formats (Chad Johnson)
   • Readout Control (Online, Offline, Pulse, Accept...)
2. Busy and Errors
3. Monitoring
   • VME accessible Status Registers

1. Linda Bagby's L1Cal ORC page
2. TAB/GAB Crate Safety Documents
   • Line diagram (v2: 09-Aug-05)
   • Spreadsheet (v2: 09-Aug-05)
   • v1 documents
3. VME/SCL Board Safety Documents
   • Line diagram (09-Aug-05)
4. Fermilab Electrical Design Guidelines
5. Operational Readiness Clearance Documents
